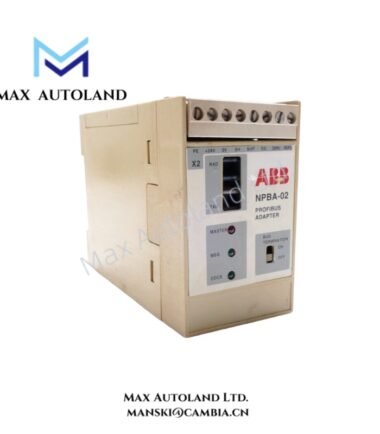

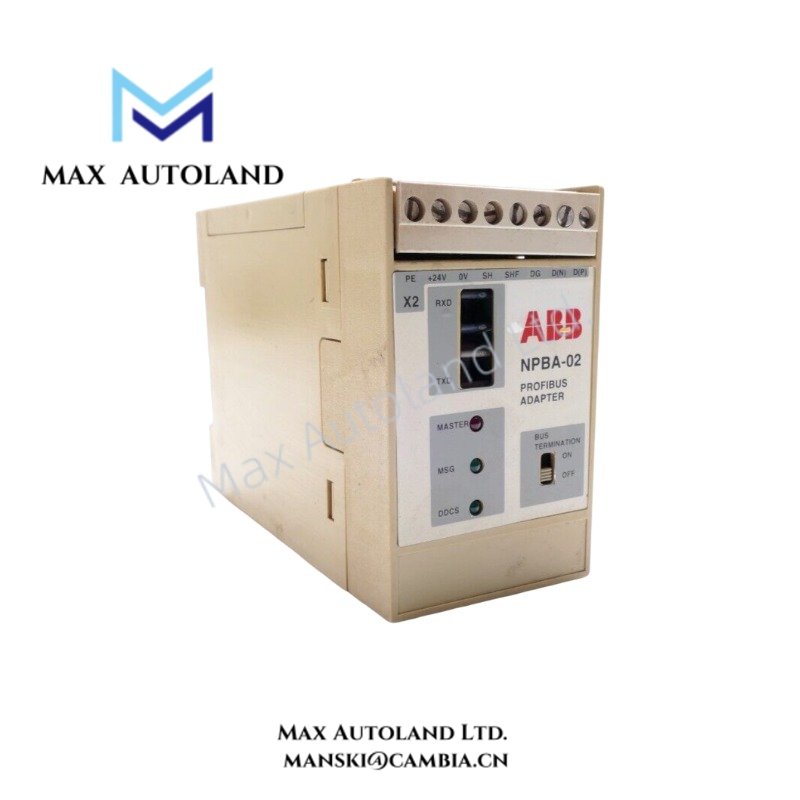

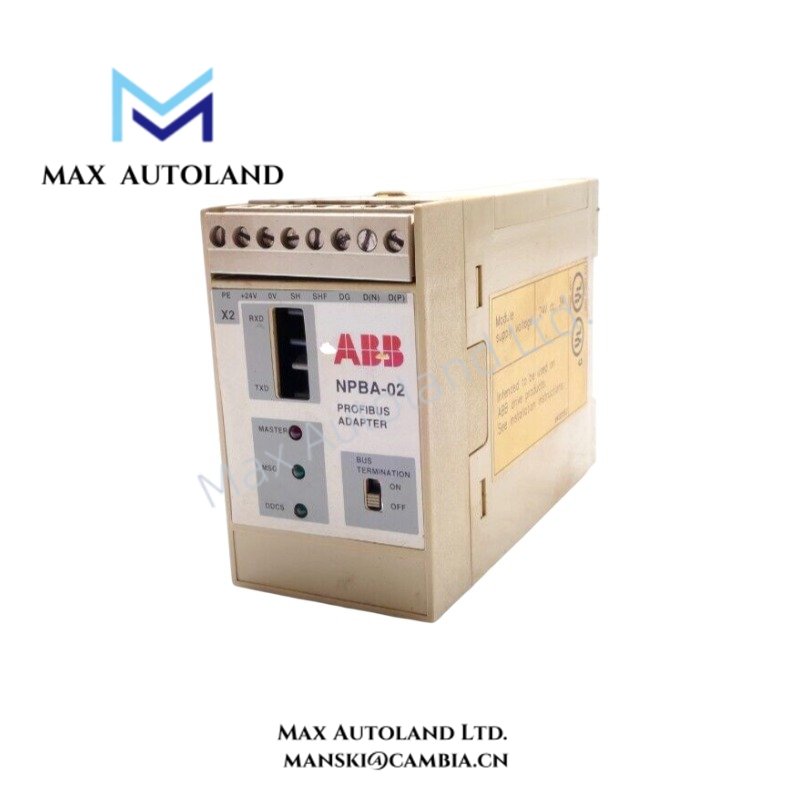

ABB NPBA-02 PROFIBUS Adapter Option/SP Kit

Overview

Configured for PROFIBUS communication in ABB drive control networks, the ABB NPBA-02 PROFIBUS Adapter Option/SP Kit (NPBA-02 PROFIBUS Adapter) provides direct physical and data communication between compatible ABB equipment and a PROFIBUS network. Product ID 58976024 replaces the earlier Product ID 58919454 / 3BHL000510P0011. The adapter supports replacement scenarios involving NPBA-01 and NPBA-02 installations.

Suffix Breakdown & Model Matrix

The available product information identifies NPBA-02 as a fixed PROFIBUS adapter model. No manufacturer-defined suffix breakdown or configurable model matrix is provided for Product ID 58976024.

For replacement with ABB NPBA-12 Product ID 64348221, the NPBA-12 configuration must select the NPBA-02 MODE protocol setting when replacing an existing NPBA-01 or NPBA-02 module without reconfiguring the PROFIBUS master.

Hardware Specifications

Industrial Communication and Firmware Compatibility

The ABB NPBA-02 operates as a hardware communication interface for PROFIBUS network integration. The adapter allows compatible ABB equipment to exchange network data through the installed PROFIBUS architecture.

When an existing network replaces an NPBA-01 or NPBA-02 module with the NPBA-12, ABB provides the NPBA-02 MODE configuration parameter to maintain compatibility with the existing PROFIBUS master configuration. Therefore, the replacement process can avoid unnecessary PROFIBUS master reconfiguration when the documented NPBA-12 compatibility procedure applies.

Before replacement, technicians should verify the installed equipment type, communication configuration, and parameter settings. In addition, firmware and replacement compatibility should follow the applicable ABB NPBA-12 Installation and Start-up Guide.

Frequently Asked Questions

Q: Can the ABB NPBA-02 be replaced by an NPBA-12 module?
A: ABB technical information states that NPBA-12 Product ID 64348221 can replace NPBA-01 or NPBA-02 modules. For an existing network, the NPBA-12 must use the NPBA-02 MODE protocol setting to support the documented replacement procedure.

Q: Does replacement with NPBA-12 require PROFIBUS master reconfiguration?
A: When the documented NPBA-02 MODE setting is used for replacement in an existing network, ABB states that this setting can avoid reconfiguration of the PROFIBUS master.

Q: Are operating temperature and power consumption specified for NPBA-02?
A: The provided product information does not specify operating temperature or power consumption values. Installation documentation should be checked for the compatible host equipment and communication interface requirements.

Field Installation Guidelines

Disconnect or isolate equipment according to the applicable site electrical safety procedure before installing or replacing the adapter.

Install the ABB NPBA-02 only in equipment that supports the specified option or communication interface. Verify the mechanical seating and connector engagement before applying power.

Route PROFIBUS communication cables separately from high-power conductors where practical. Maintain the cable shielding and grounding arrangement required by the installed PROFIBUS network and host equipment documentation.

When replacing an NPBA-01 or NPBA-02 with an NPBA-12, confirm the replacement procedure and select NPBA-02 MODE before placing the communication network into service. Finally, verify network communication and device data exchange after installation.
