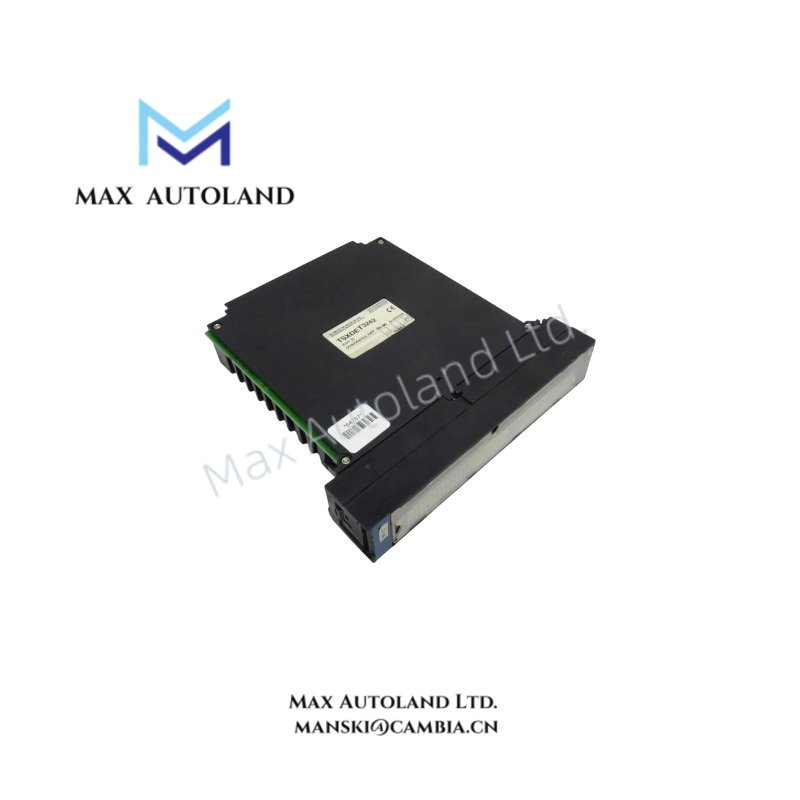

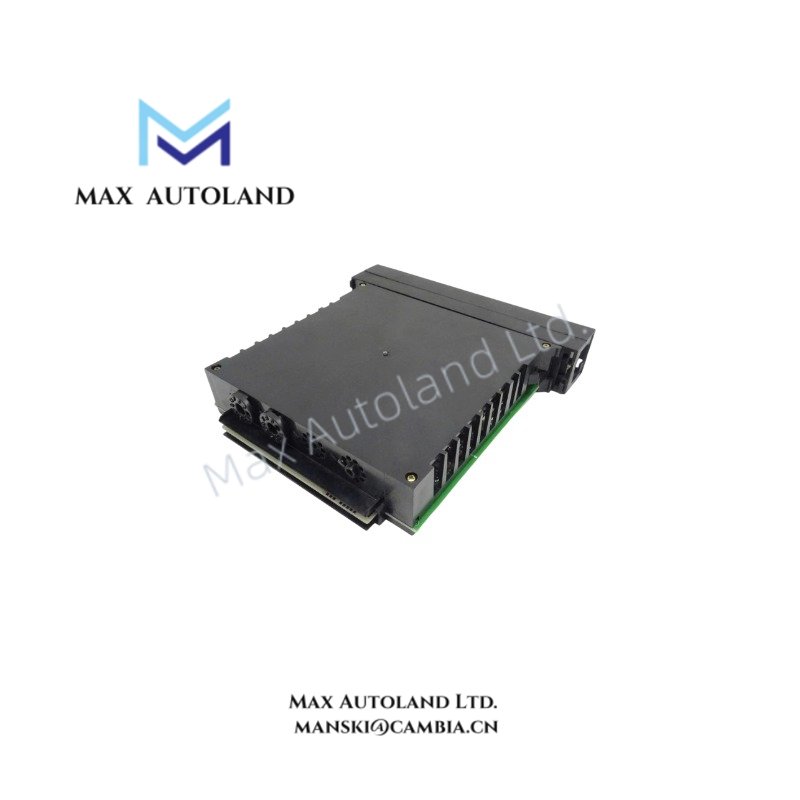

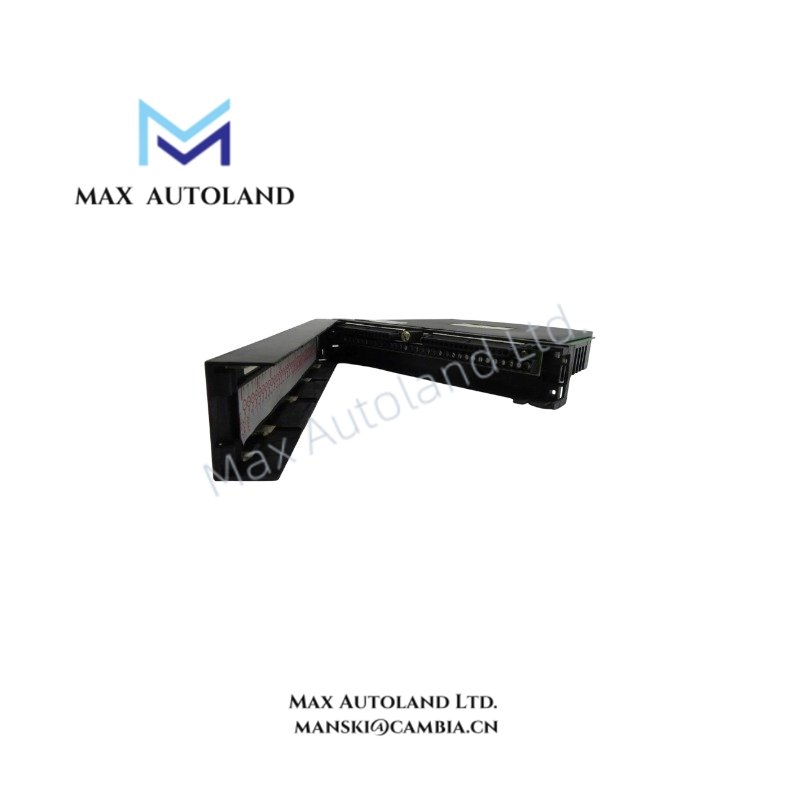

Schneider Electric TSXDET3242 Discrete Input Module

Overview

Configured for discrete signal acquisition in Modicon automation architectures, the Schneider Electric TSXDET3242 (TSXDET3242 Discrete Input Module) provides direct physical/electrical execution for 24 VDC to 32 VDC field signal interfacing within PLC backplane I/O racks. The module conditions and routes digital input states to the controller via rack-level communication, supporting industrial discrete sensing topologies without onboard processing logic.

Hardware Specifications

Backplane Bus Communication and I/O Density Scaling

Within Schneider Electric Modicon architectures, TSX-series discrete modules operate through deterministic backplane bus signaling, where input state updates are synchronized to PLC scan cycles. TSXDET3242 I/O mapping is dependent on rack configuration density scaling, allowing structured channel aggregation across modular slots. Signal acquisition timing is governed by backplane refresh sequencing rather than field-side latency, ensuring predictable state propagation to CPU-level memory tables. Firmware compatibility is handled at rack controller level, enabling module replacement without field-side reconfiguration under matched hardware revisions.

Frequently Asked Questions

Q: Does TSXDET3242 support hot-swap removal under live backplane power conditions?
A: Hot-swap capability is not explicitly defined for TSXDET series discrete input modules. Removal under energized backplane conditions is typically governed by rack controller design and installation practice.

Q: What is the backplane current impact per module slot?
A: Backplane current consumption is not specified at module level. Load is determined by rack power supply capacity and total installed I/O density.

Q: Can firmware updates be applied at module level?
A: TSXDET3242 does not contain field-upgradable firmware. Operational behavior is controlled by the host PLC system firmware.

Field Installation Guidelines

Power must be isolated prior to module insertion or removal unless the rack architecture explicitly supports live insertion. The module should be seated fully into the Modicon backplane connector to ensure stable signal continuity across all pin contacts. Field wiring for 24 VDC inputs must maintain correct polarity and be routed separately from high-noise conductors such as drive output cables or relay switching lines. Shield termination, when applicable, should be grounded at a single rack-side reference point to avoid ground loop propagation. Maintain minimum conductor separation in accordance with industrial control cabinet wiring standards.
