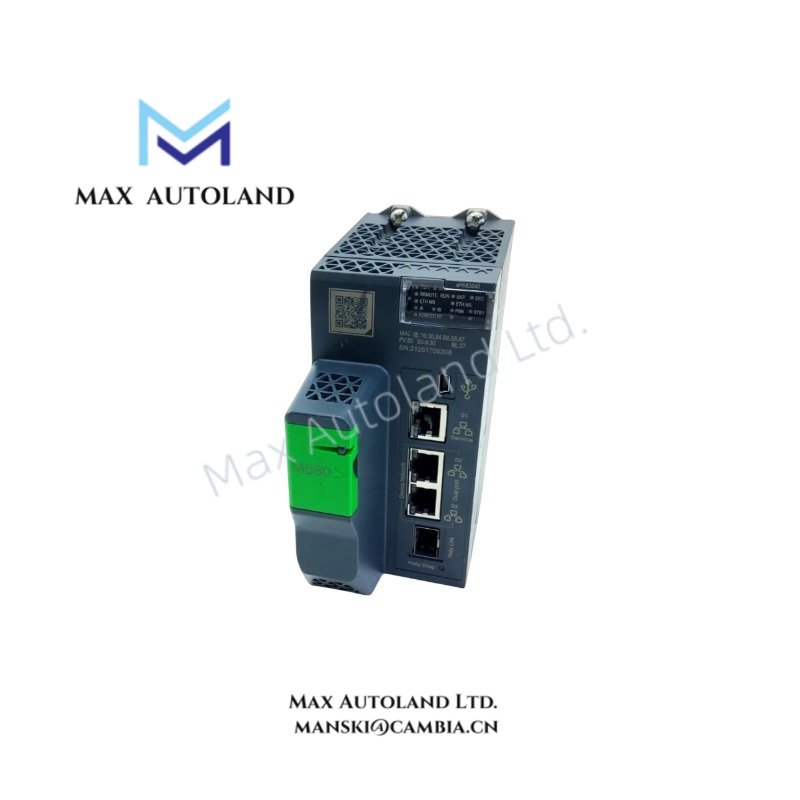

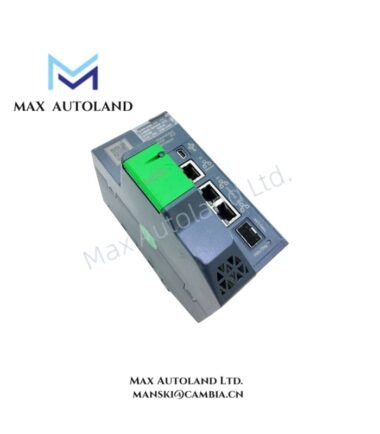

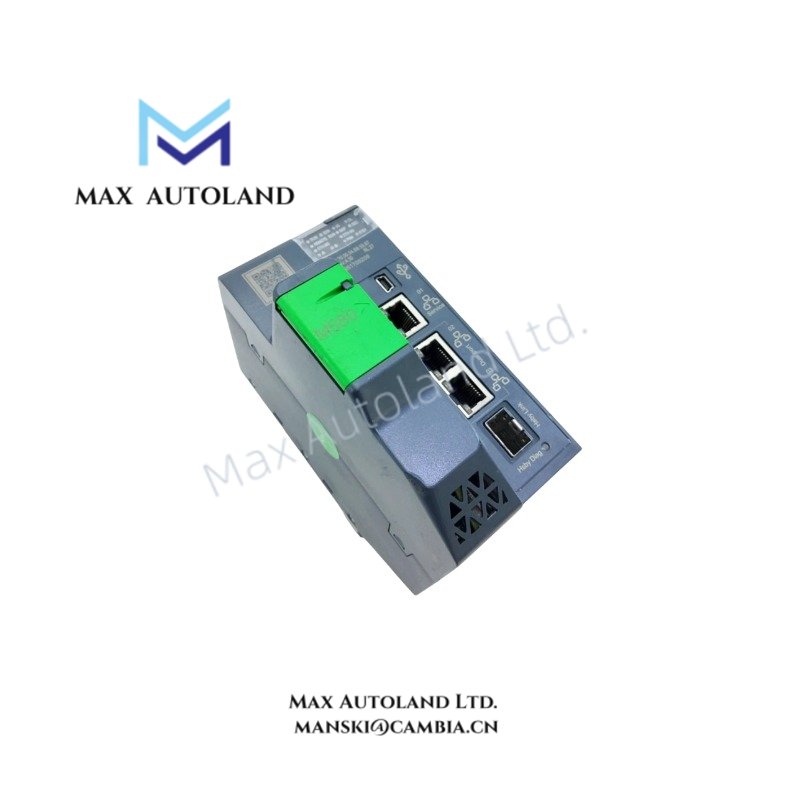

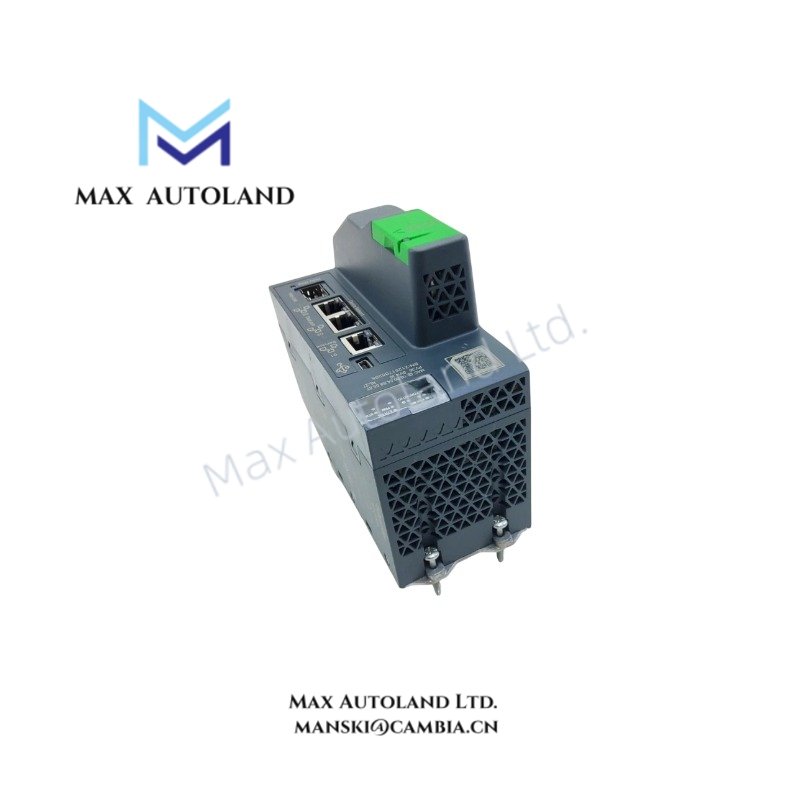

The Schneider Electric BMEH582040 (BMEH582040 redundant processor module) serves as the primary control execution unit for redundant CPU operation within Modicon M580 automation architectures. It performs synchronized logic processing across dual HSBY-linked controllers, maintaining deterministic task execution over Ethernet-based control networks with integrated redundancy switching logic and system state alignment.
HardwareSpecifications
| Parameter | Specification |
|---|---|
| ModelBrand | Schneider Electric BMEH582040 |
| Weight | 880 g (Package 1) |
| Dimensions | 8.8 cm x 17.8 cm x 25.0 cm (Package 1) |
| OperatingTemp | 0 degC to 60 degC |
| PowerConsumption | 270 mA at 24 V DC |
| Processor Memory | 8 MB program / 768 kB data / 10 kB system RAM |
| Storage | 4 GB expandable flash |
| Ethernet Interfaces | 3 x Ethernet TCP/IP (service, device network), 1 x HSBY port |
| USB Interface | Mini-B service port |
| Remote I/O Capacity | Up to 8 remote I/O stations (2 racks per X80 drop) |
| Distributed Equipment | Up to 64 devices |
| MTBF | 650000 hours |
Redundant Control Execution and Backplane Communication Profile
The BMEH582040 operates within the Modicon M580 backplane architecture, where deterministic bus scheduling governs CPU-to-I/O synchronization cycles. Redundant execution is achieved through HSBY (hot standby) Ethernet coupling, ensuring real-time state replication between primary and standby processors.
Ethernet communication stacks support deterministic industrial protocols including EtherNet/IP and service TCP/IP channels, enabling cyclic task exchange with bounded jitter behavior. Firmware image synchronization across redundant units ensures consistent execution of cyclic and periodic tasks without manual state reconciliation.
FrequentlyAskedQuestions
Q: Can the BMEH582040 operate in hot standby without interrupting cyclic task execution?
A: Yes. The HSBY mechanism maintains continuous state replication between redundant CPUs. Task transition occurs at execution boundary without halting I/O scanning.
Q: What is the backplane load impact of this processor module?
A: The module consumes 270 mA at 24 V DC and contributes to backplane communication load through Ethernet-based I/O scanning and remote rack synchronization.
Q: Is firmware alignment required between primary and standby processors?
A: Yes. Redundant operation requires identical firmware versions to maintain deterministic state mirroring and prevent execution divergence.
FieldInstallationGuidelines
The module shall be installed on a Modicon M580 rack with secure backplane seating to ensure stable bus contact integrity. Shielded Ethernet cabling must be used for both device network and HSBY ports, with grounding termination applied at single-point earth reference to avoid loop currents.
Maintain separation between power conductors and communication wiring to reduce electromagnetic coupling into Ethernet PHY layers. During commissioning, verify redundancy synchronization status prior to enabling cyclic control tasks. Hot insertion is not recommended unless system redundancy state is fully stabilized.
