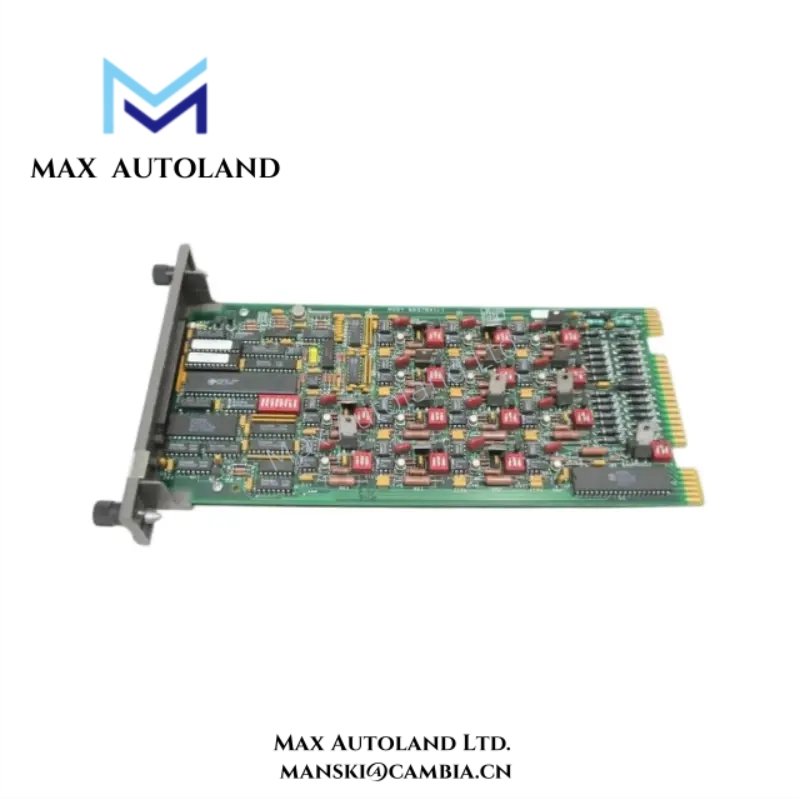

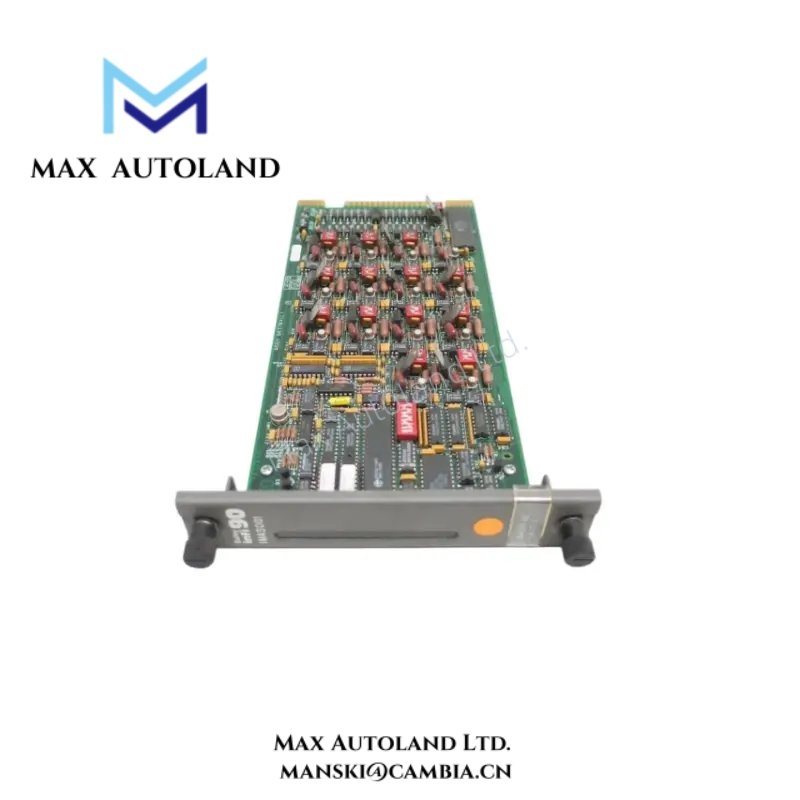

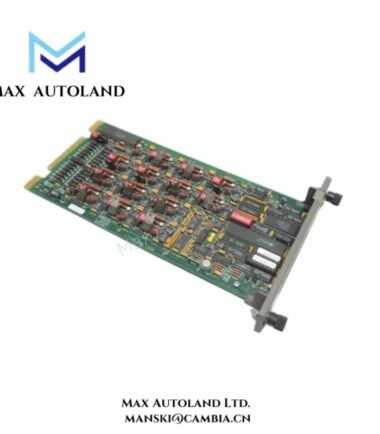

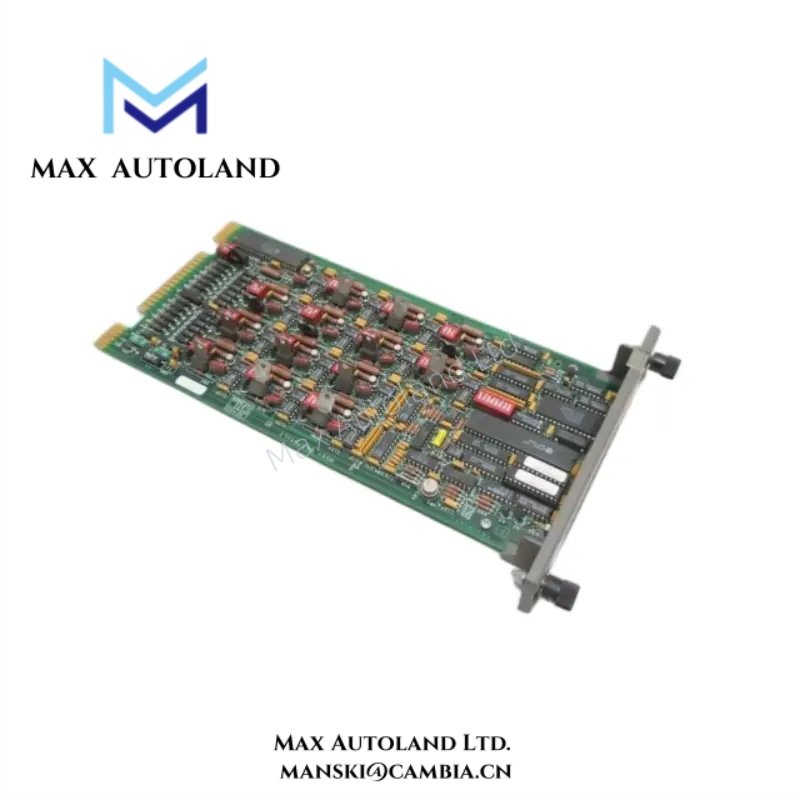

Overview
It converts digital control commands into stable analog outputs for field devices and final control elements.
Moreover, the module supports deterministic output behavior, therefore ensuring predictable process responses during continuous operation.
Engineers rely on the IMASO01 in plants where output accuracy directly influences safety, quality, and production efficiency.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | ABB (Bailey Controls) |
| Product Model | IMASO01 |
| Product Type | Analog Slave Output Module |
| Compatible Systems | ABB Bailey Infi 90 and Net 90 DCS |
| Module Function | Digital-to-analog signal conversion |
| Output Channels | 8 analog output channels |
| Supported Output Signals | 4–20 mA, 1–5 V (configurable) |
| Output Resolution | 12-bit digital-to-analog conversion |
| Output Accuracy | ±0.1% of full scale typical |
| Channel Isolation | Channel-to-system isolation provided |
| Output Load Capability | Suitable for standard industrial actuators |
| Update Method | Controlled by associated master module |
| Response Time | Determined by system scan rate |
| Power Supply Requirement | Powered from system backplane |
| Typical Power Consumption | Approximately 8 W |
| Operating Temperature Range | 0 °C to +60 °C (32 °F to 140 °F) |
| Storage Temperature Range | −40 °C to +85 °C (−40 °F to 185 °F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Installation Location | Standard Infi 90 / Net 90 module rack |
| Module Weight | Approximately 1.2 kg (2.6 lbs) |
| Industrial Rating | Designed for continuous-duty operation |
FAQ
A1: The IMASO01 converts digital control commands into precise analog output signals for field devices.
Q2: How many output channels does the IMASO01 provide?
A2: The module provides eight independently controlled analog output channels.
Q3: Which output signal types are supported?
A3: It supports standard industrial signals including 4–20 mA and 1–5 V outputs.
Q4: Can the IMASO01 operate without a master module?
A4: No, it functions as a slave module and requires a compatible master module for operation.
Q5: Is the IMASO01 suitable for continuous operation?
A5: Yes, it is designed for continuous-duty industrial applications with high reliability requirements.
Q6: Does the IMASO01 include output isolation?
A6: Yes, channel isolation is provided to protect system electronics and ensure stable output performance.
