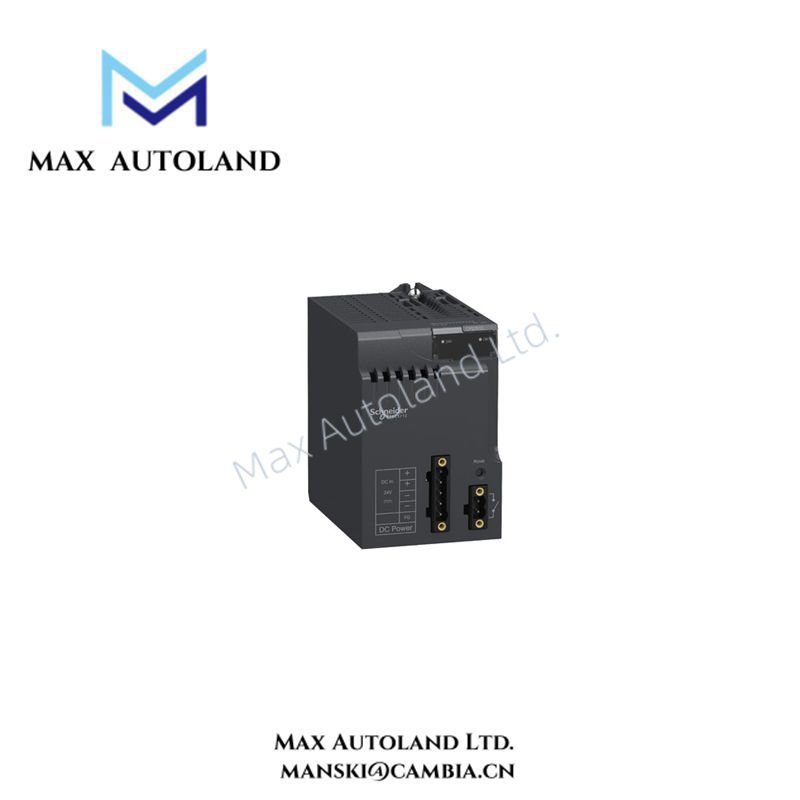

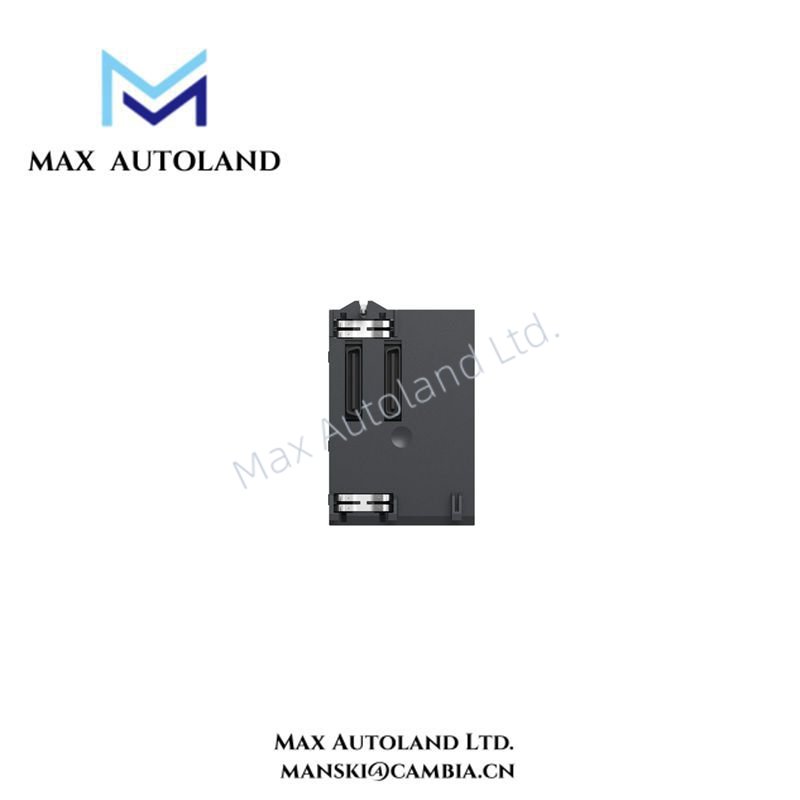

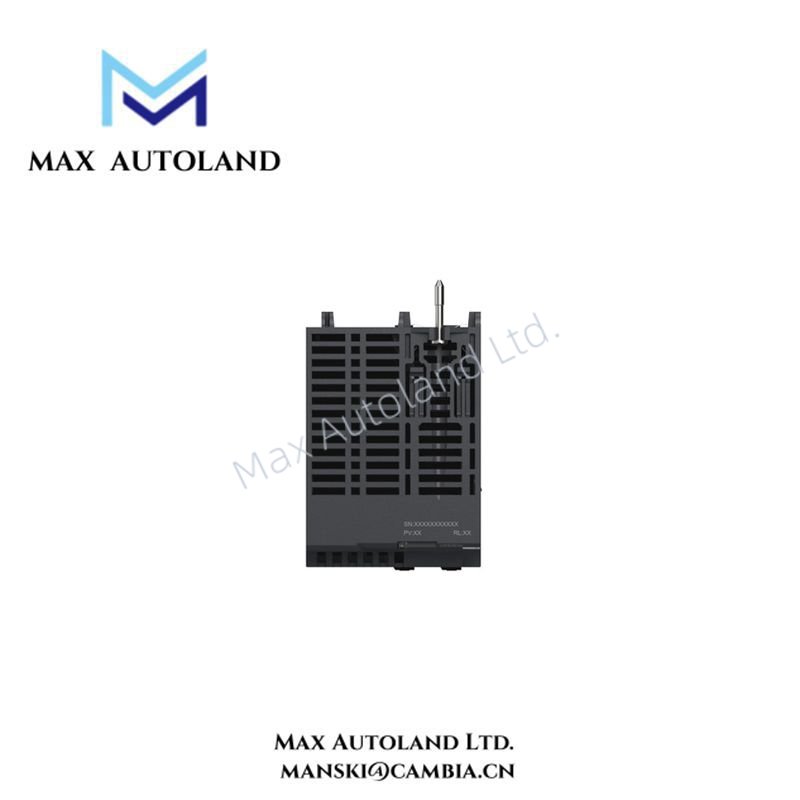

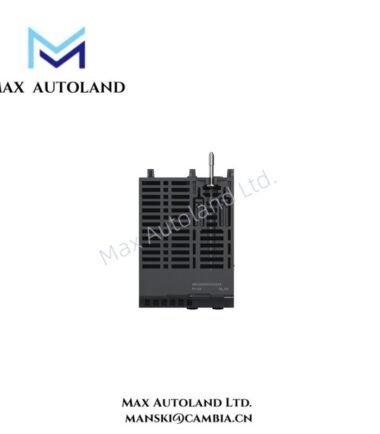

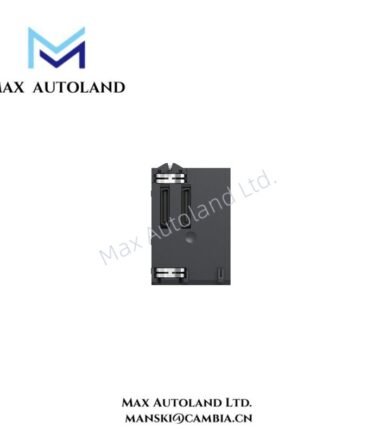

Overview
Specification
| Category | Specification |
|---|---|
| Range of Product | Modicon X80 |
| Product Type | Power supply module |
| Primary Voltage | 100–240 V AC |
| Secondary Power | 16.8 W 24 V DC I/O module & processor |
| Network Frequency | 50/60 Hz (47–63 Hz limits) |
| Input Current | 0.61 A at 115 V, 0.31 A at 240 V |
| Inrush Current | 60 A at 240 V, 30 A at 120 V |
| I²t on Activation | 12 A²·s at 240 V |
| It on Activation | 0.06 A·s at 240 V, 0.03 A·s at 120 V |
| Dielectric Strength | 1500 V primary/secondary for I/O and logic power |
| Immunity to Microbreaks | 1 ms |
| Vibration Resistance | 3 gn |
| Shock Resistance | 30 gn |
| IP Degree of Protection | IP20 |
| Ambient Temperature (Operation) | 0…60 °C |
| Ambient Temperature (Storage) | -40…85 °C |
| Relative Humidity | 5–95 % at 55 °C without condensation |
| Operating Altitude | 0–2000 m (derating 2000–5000 m) |
| Certifications | CE, UL, CSA, RCM, EAC |
| Standards | EN 61131-2, EN 61000-6-4, EN 61000-6-2, EN 61010-2-201 |
FAQ
A1: It fits standard Modicon X80 racks but not BMEXBP..02 backplanes.
Q2: What is the maximum output power of this module?
A2: The module provides 16.8 W of 24 V DC power for I/O modules and processors.
Q3: How fast can it handle microbreaks?
A3: The module maintains operation with microbreaks up to 1 ms.
Q4: How soon will the product ship?
A4: We ship within 3 days to 2 weeks depending on order size using common carriers like DHL.
Q5: Can I return the module if defective?
A5: Yes, we support returns within 30 days if a quality issue occurs.
