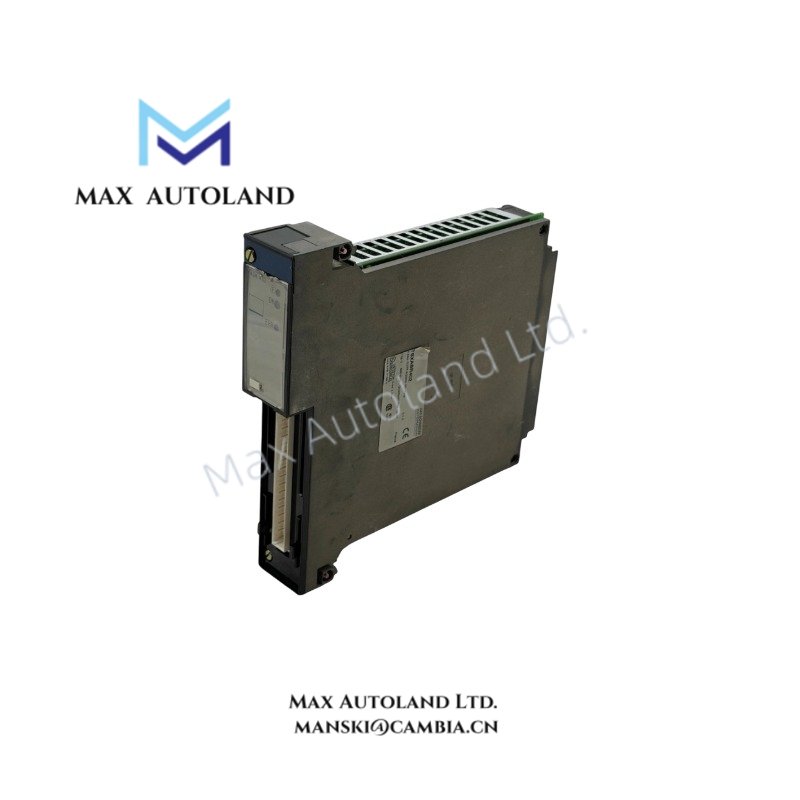

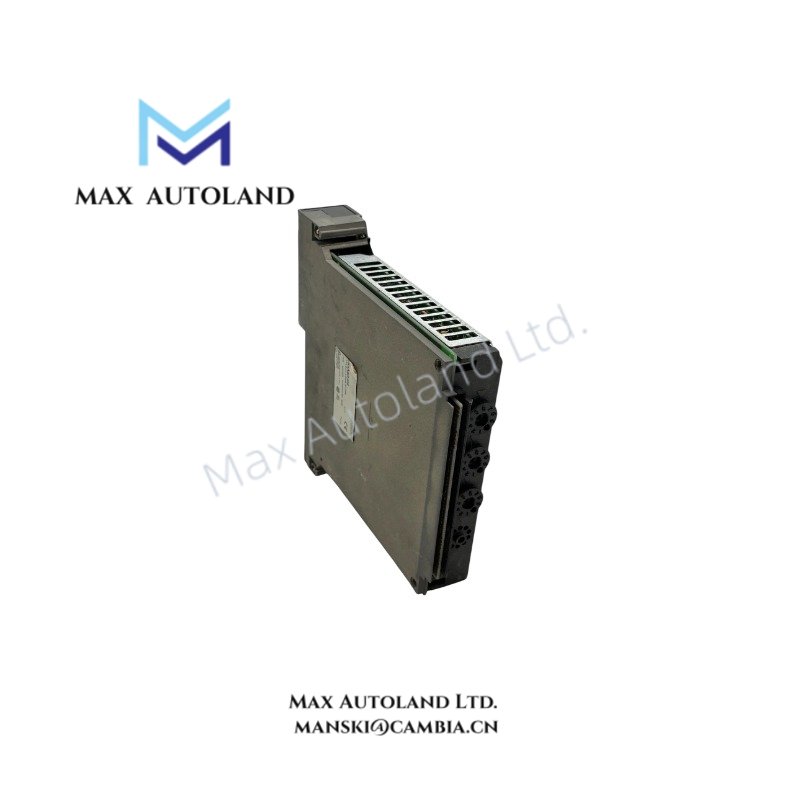

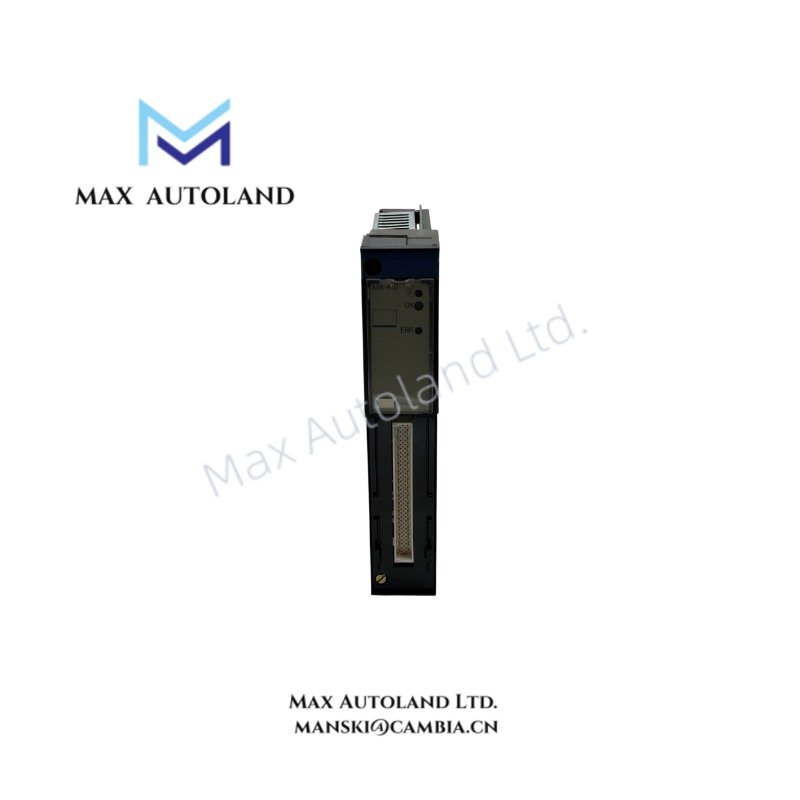

Schneider Electric Modicon TSXASR402 Analog Output Module

Overview

Configured for digital-to-analog signal conversion in Modicon backplane I/O architecture, the Schneider Electric TSXASR402 (TSXASR402 analog output module) provides direct physical/electrical execution for multi-channel voltage and current output generation within PLC-controlled automation networks.

Suffix Breakdown & Model Matrix

TSXASR402 is a fixed-order Modicon analog output module identifier. No documented manufacturer-provided suffix decomposition for functional variants is available in the provided dataset.

Hardware Specifications

Schneider Electric Backplane Bus Communication and Firmware Compatibility

Within Schneider Electric Modicon PLC architectures, TSX-series analog output modules interface through deterministic backplane communication cycles governed by rack-level scan timing. Output refresh behavior is synchronized with CPU I/O scan execution, where conversion latency is constrained by internal DAC update scheduling and backplane bus throughput.

Firmware-level compatibility is bound to Modicon rack configuration rules, where IO density scaling and module addressing are resolved at system initialization. Backplane communication velocity directly impacts multi-module update sequencing, particularly when mixing analog and digital cards in the same chassis. Firmware flash consistency across CPU and I/O modules is required to maintain deterministic output alignment and avoid channel desynchronization under cyclic refresh conditions.

Frequently Asked Questions

Q: Can TSXASR402 channels operate simultaneously in mixed voltage and current modes?
A: Channel configuration supports selectable output ranges per channel group. Electrical loading must remain within specified output mode constraints; mixed mode operation depends on rack configuration rules.

Q: What limits the response time of the module output conversion?
A: Response time is primarily defined by internal DAC update cycle (400 us) and backplane scan synchronization, not external wiring latency.

Q: Does the module require backplane isolation or external signal isolation devices?
A: The module includes 1000 V AC channel isolation; additional isolation is only required in high-noise grounding architectures or cross-system potential differences.

Field Installation Guidelines

Install the module into a Modicon compatible rack with power removed. Ensure correct seating on the backplane connector to guarantee signal integrity and timing synchronization with the CPU module.

Maintain separation between analog output wiring and high-voltage or high-frequency conductors. Use shielded cables with single-point grounding at the cabinet side to reduce loop interference on low-level analog signals.

Verify load impedance compliance per channel prior to energizing outputs, particularly in 4-20 mA mode where loop resistance directly affects output accuracy. Avoid hot insertion unless the rack explicitly supports controlled insertion procedures defined by the system CPU firmware.

Ensure cabinet grounding continuity is below system-defined impedance thresholds to maintain channel isolation performance under transient conditions.
