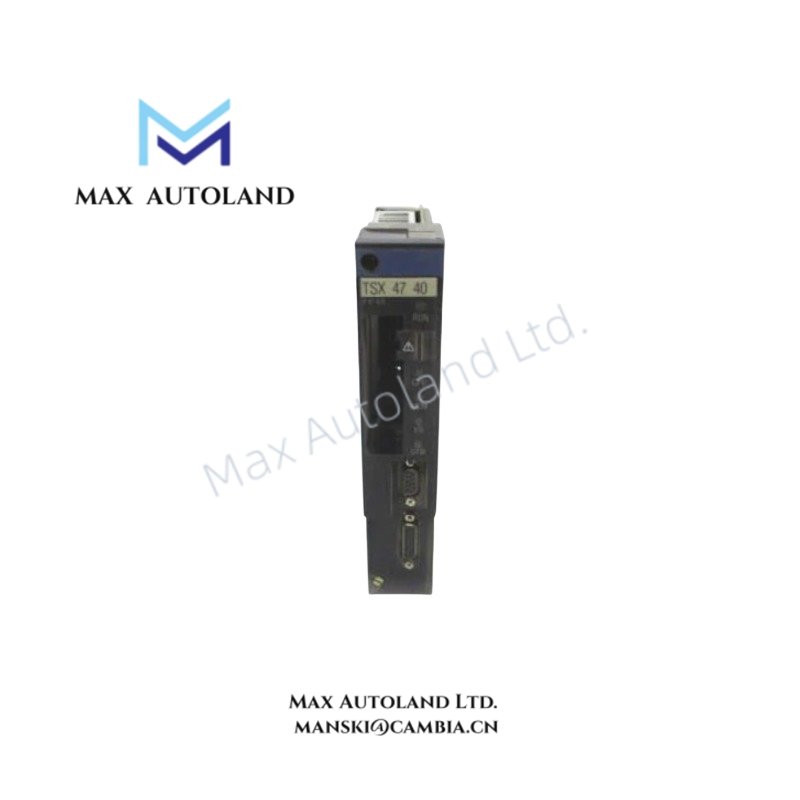

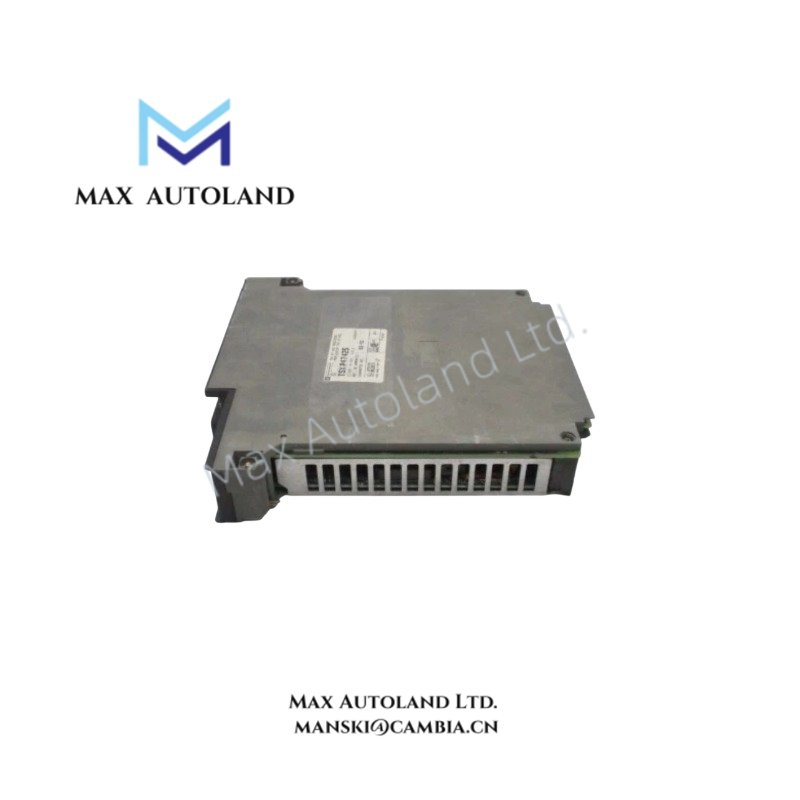

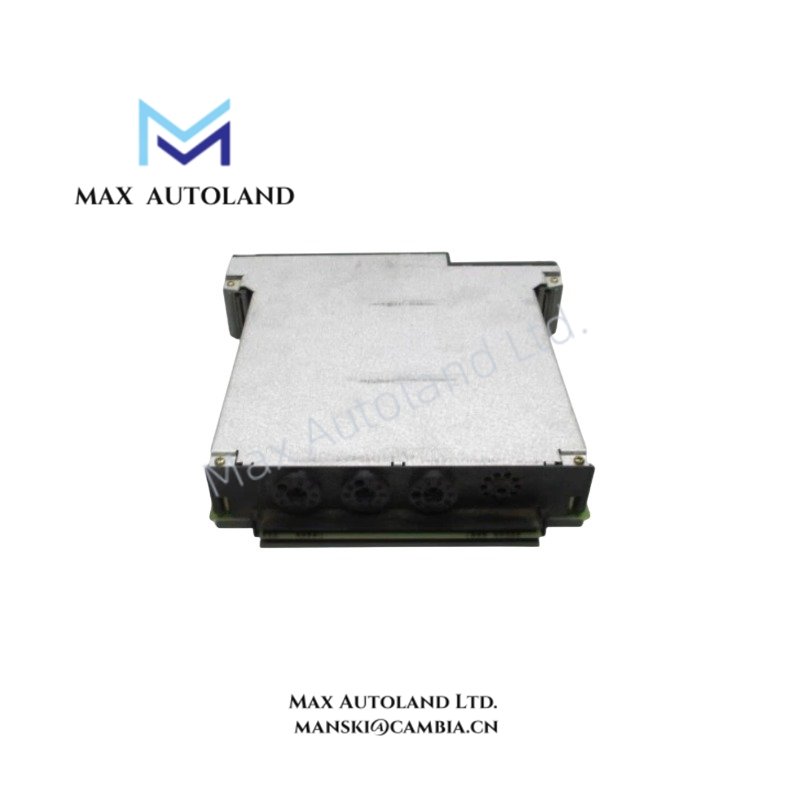

Schneider Electric Modicon TSXP47425 PLC Controller

Configured for deterministic logic execution in Modicon automation environments, the Schneider Electric TSXP47425 (TSXP47425 PLC controller) provides direct physical/electrical execution within distributed control architectures. The unit operates on 24 VDC supply and integrates modular processing, communication routing, and I/O handling with fixed-cycle scan behavior. Execution is driven by onboard firmware with deterministic scan timing and backplane-driven module coordination.

Suffix Breakdown & Model Matrix

No structured suffix decomposition is defined for TSXP47425. The designation is treated as a fixed-order catalogue identifier within the Modicon TSX platform.

Hardware Specifications

Backplane Bus & Deterministic Network Execution Profile

The TSXP47425 controller utilizes a Modicon backplane architecture with synchronized module polling across expansion slots. Backplane communication maintains deterministic cycle execution under mixed I/O loads. Ethernet and fieldbus routing layers support segmented protocol handling across Modbus TCP and Profibus DP interfaces. Firmware execution supports fixed-cycle scan scheduling, reducing jitter under multi-drop I/O configurations. Channel arbitration is managed at controller level to maintain predictable scan timing across distributed modules.

Frequently Asked Questions

Q: Can the TSXP47425 support hot-swap of expansion modules during operation?
A: No hot-swap behavior is defined for base controller modules. Expansion insertion/removal requires system power-down to maintain backplane integrity.

Q: How is backplane load distributed across the 4 expansion slots?
A: Slot load is managed through internal backplane current distribution, with each module consuming controller-supplied logic and communication power budget.

Q: Does firmware execution affect scan cycle determinism under high I/O density?
A: Scan time scales linearly with program size (1 ms per 1K memory), with deterministic scheduling maintained through fixed-cycle execution.

Field Installation Guidelines

The controller shall be installed on a standard DIN rail with verified grounding continuity between cabinet earth and controller chassis. Shielded communication cables must be terminated at single-point ground to prevent loop current on Modbus and Profibus segments. Maintain separation between 24 VDC power routing and field signal cabling to reduce induced noise on analog channels. Ensure adequate ventilation clearance above and below the module to maintain thermal stability within -10 degC to +60 degC operating limits.

Avoid routing Ethernet and fieldbus cables parallel to high-current motor drive conductors. Backplane connectors must be fully seated before energizing the system to prevent partial contact arcing.
