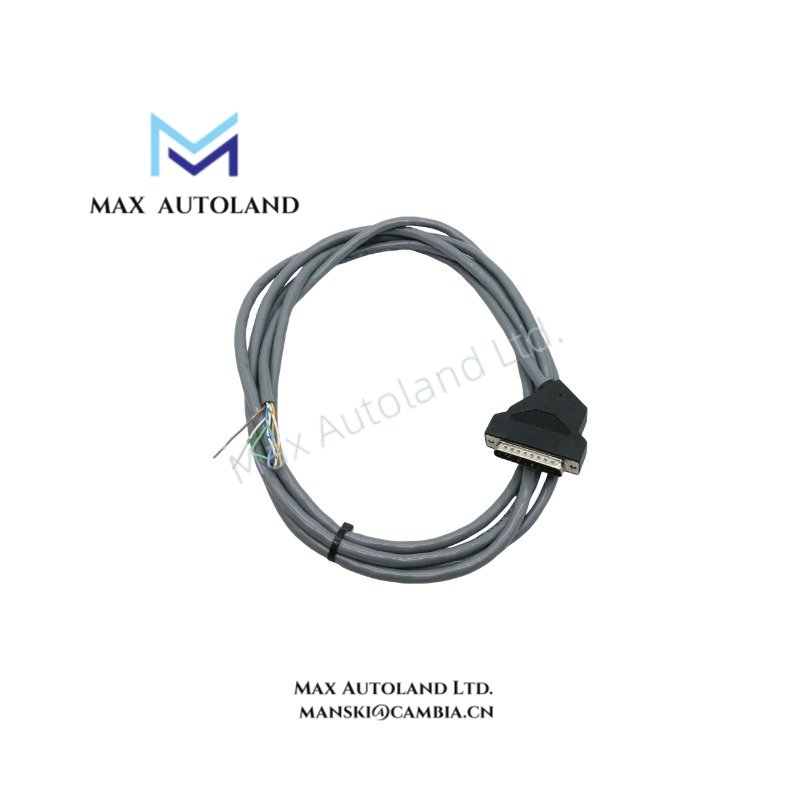

Configured for isolated RS422/485 tap link termination in Modicon Premium automation platforms, the Schneider Electric TSXSCYCM6030 (TSXSCYCM6030 Modbus connecting cable) provides direct physical execution of multidrop serial network connections via T-junction enclosures.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | TSXSCYCM6030 |
| Brand | Schneider Electric |
| Origin | France |
| Weight | 0.40 lb (0.18 kg) |
| Dimensions | 9.84 ft length (3 m) |
| Operating Temp | 32 to 140 deg F (0 to 60 deg C) |
| Power Consumption | Not powered (Passive cabling) |

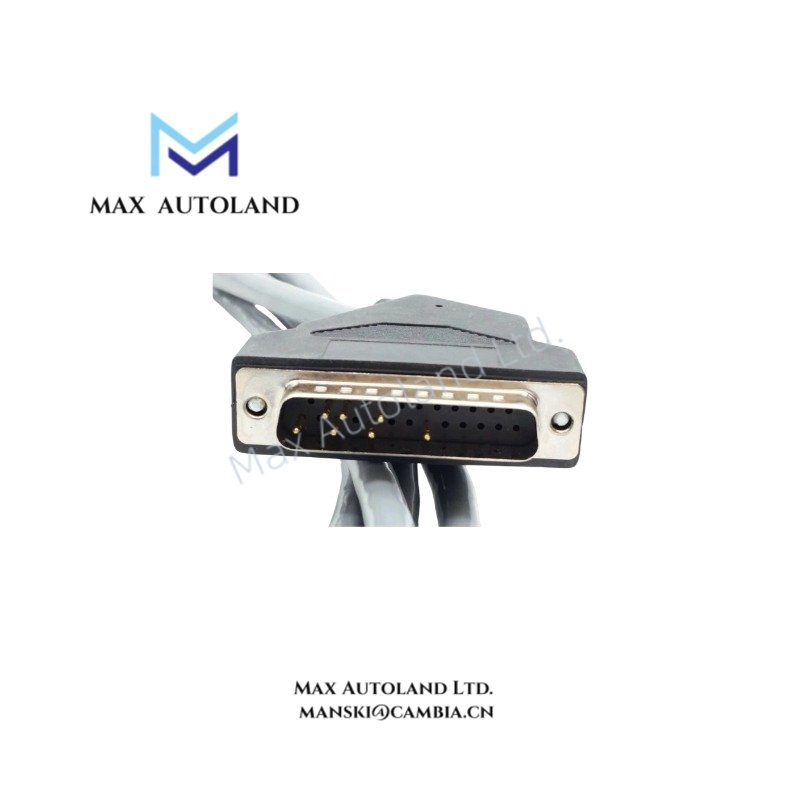

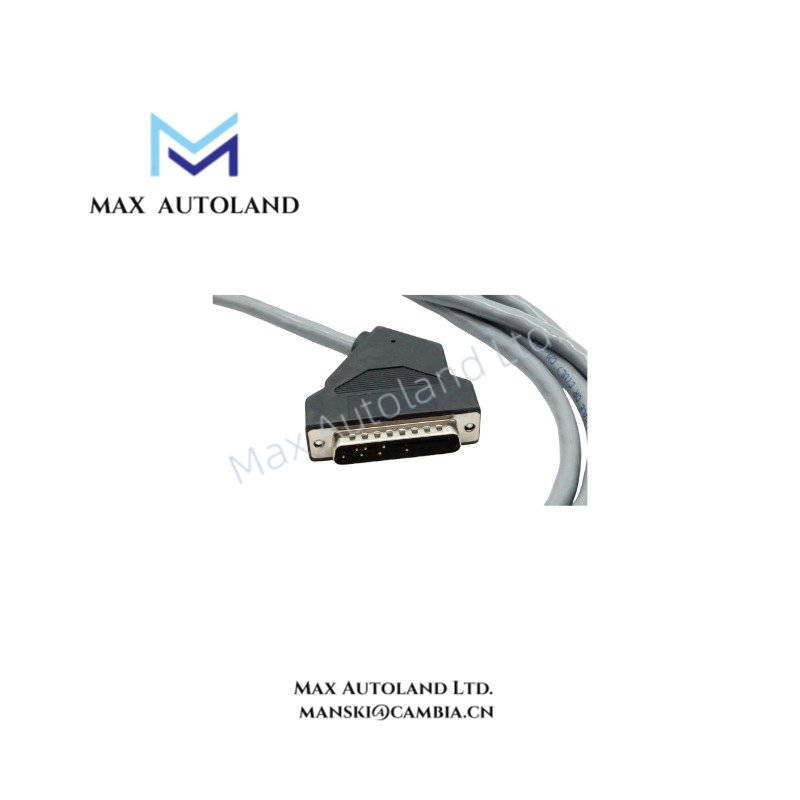

| Connector Type | 1 x SUB-D 25 (PLC side), Flying leads (Junction box side) |
| Compatibility | TSXSCY21601, TSXSCY11601, TSXSCA50 |
Backplane Bus and Firmware Flash Considerations
This cable assembly interfaces with the Modicon Premium backplane through dedicated SUB-D 25 connectivity, requiring strict alignment between the installed CPU firmware revision and the communication module’s executive code. The passive design ensures that no additional bus current is drawn from the PLC power supply. When integrating into existing TSXSCY series networks, verify that the target module’s firmware flash supports character mode protocols prior to deployment.
Frequently Asked Questions
Q: Is hot-swapping supported for this cable while the TSXSCY module is powered?
A: No. All mechanical connections must be performed under de-energized conditions to prevent damage to the SUB-D 25 pins and ensure signal integrity.
Q: What are the grounding requirements for the flying leads at the T-junction box?
A: The shield drain wire must be terminated to the chassis ground point at the junction box to minimize electromagnetic interference and maintain galvanic isolation.
Q: Does the cable support redundant channel configurations?
A: No. The TSXSCYCM6030 is designed for single-path tap links; redundant architectures require separate dedicated cabling per channel.
Field Installation Guidelines
Route the 3-meter cable away from high-voltage power conductors to prevent inductive coupling. Maintain a minimum separation distance of 8 inches (20 cm) between the communication cable and AC power lines. Ensure the SUB-D 25 connector is fully seated and secured with retaining screws torqued to 0.4 to 0.5 Nm. At the T-junction box, dress the flying leads to avoid tension on the terminal blocks and verify that all exposed conductors are insulated against accidental contact with enclosure metalwork.
