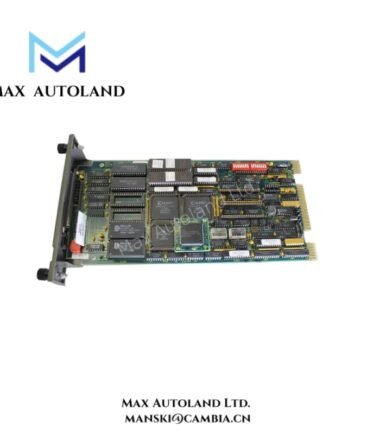

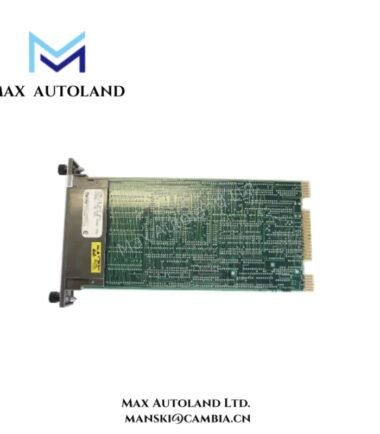

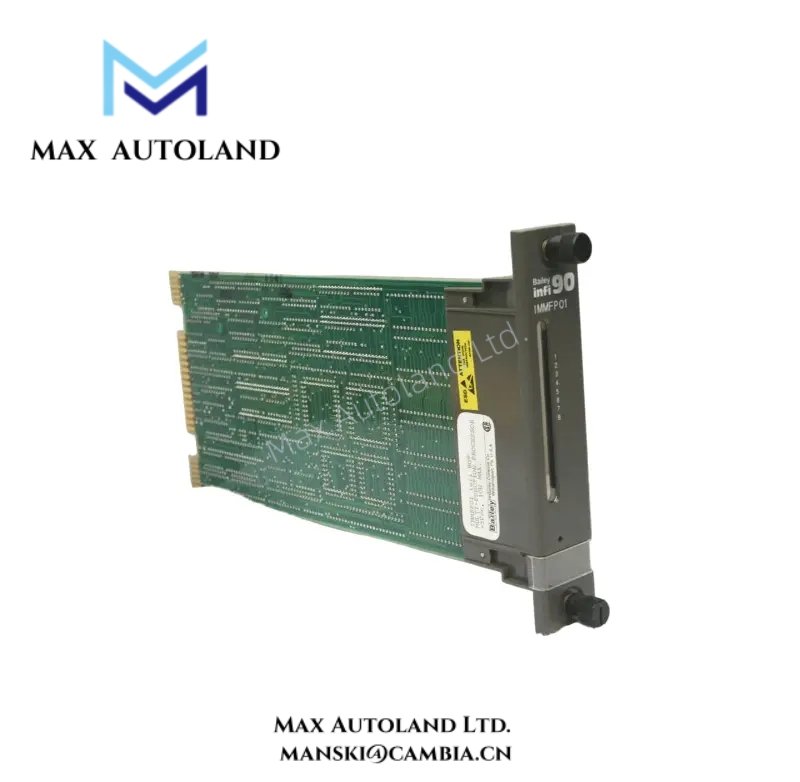

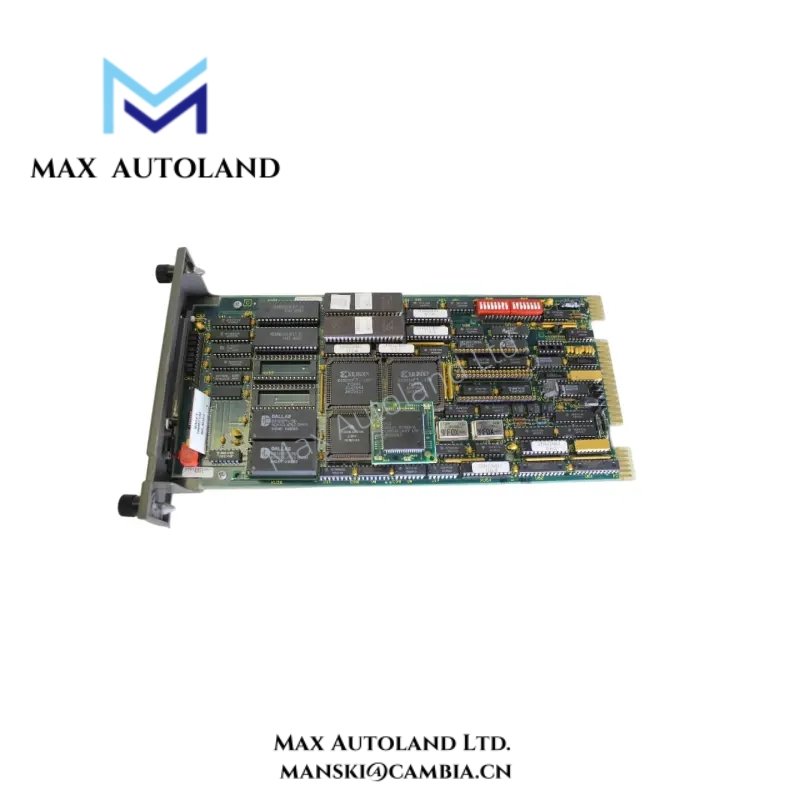

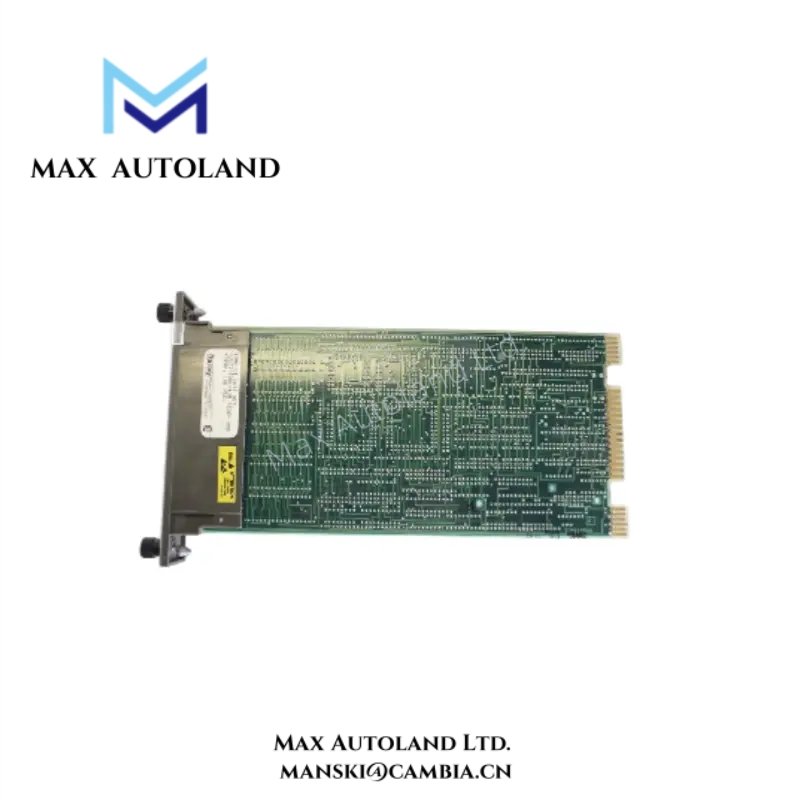

Overview
It executes control logic, data handling, and communication tasks, therefore supporting deterministic and stable process operations.
Moreover, the module consolidates multiple control functions into a single platform, reducing system complexity and hardware dependency.
Engineers rely on the IMMFP01 in legacy installations where predictable execution and long-term system continuity remain critical.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | ABB (Bailey Controls) |
| Product Model | IMMFP01 |
| Product Type | Multi-Function Processor Module |
| Compatible Systems | ABB Bailey Infi 90 and Net 90 DCS |
| Processor Function | Control logic execution and system coordination |
| Control Capability | Continuous control, logic sequencing, and data processing |
| Task Execution | Multi-tasking with deterministic scan cycles |
| Memory Type | Non-volatile and volatile memory for program and data storage |
| Program Storage | Retains application logic during power interruptions |
| System Communication | Infi 90 / Net 90 high-speed backplane interface |
| I/O Interaction | Exchanges data with analog and digital I/O modules |
| Diagnostics | Processor health monitoring and internal self-tests |
| Status Indication | Front-panel LEDs for power, status, and fault conditions |
| Power Supply Requirement | +5 VDC supplied from system backplane |
| Typical Current Consumption | Approximately 1.2 A |
| Maximum Current Consumption | Up to 1.8 A |
| Operating Temperature Range | 0 °C to +60 °C (32 °F to 140 °F) |
| Storage Temperature Range | −40 °C to +85 °C (−40 °F to 185 °F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Installation Location | Standard Infi 90 / Net 90 module rack |
| Approximate Module Weight | 1.3 kg (2.9 lbs) |
| Industrial Rating | Designed for continuous-duty industrial environments |
FAQ
A1: The IMMFP01 executes control logic, data processing, and coordination tasks within Infi 90 and Net 90 systems.
Q2: Can the IMMFP01 handle both logic and continuous control functions?
A2: Yes, moreover it supports regulatory control, sequencing, and data handling within a single processor module.
Q3: Which control systems support the IMMFP01 processor?
A3: The module is specifically designed for ABB Bailey Infi 90 and Net 90 distributed control systems.
Q4: How does the IMMFP01 communicate with I/O modules?
A4: It exchanges data through the high-speed Infi 90 backplane for deterministic system performance.
Q5: Is the IMMFP01 suitable for long-term legacy system operation?
A5: Yes, engineers frequently use it to maintain stable control in long-running industrial installations.
Q6: Does the IMMFP01 include diagnostic capabilities?
A6: Yes, it provides internal self-tests and status indicators to support effective maintenance.
