Overview
Specification
| Specification Category | Details |
|---|---|

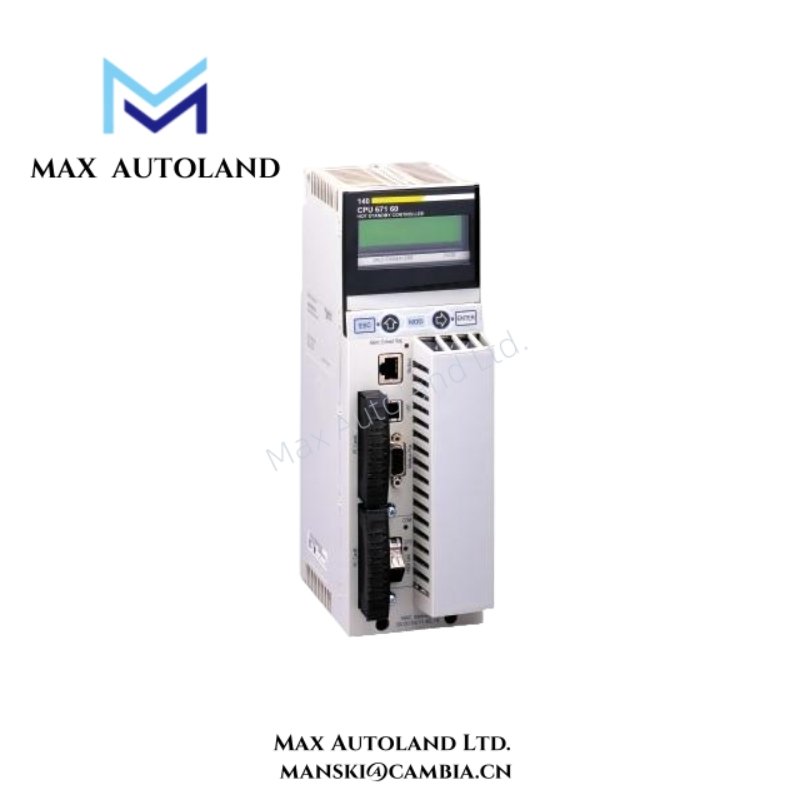

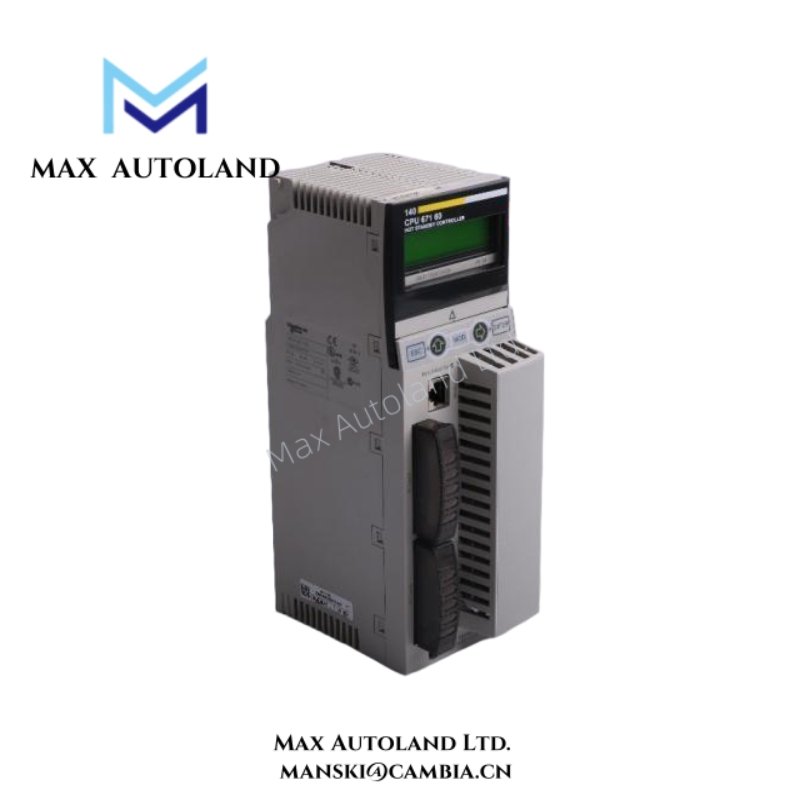

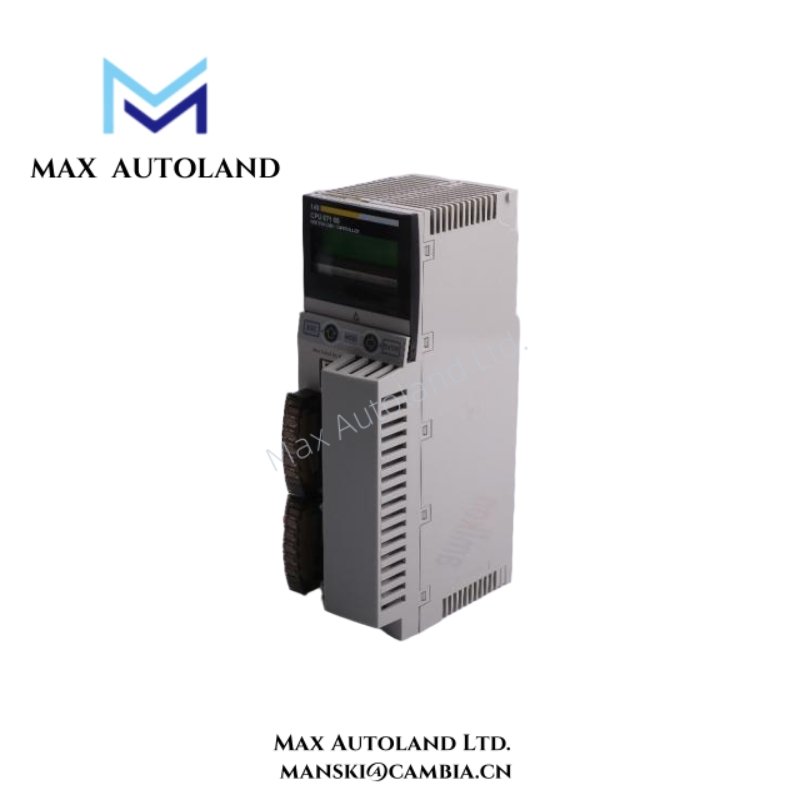

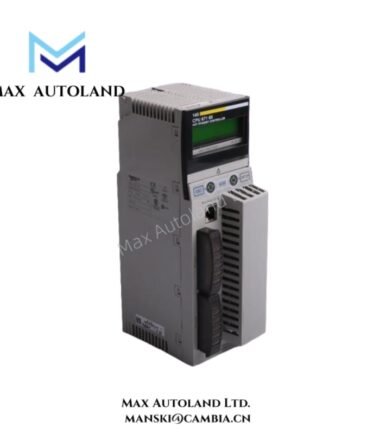

| CPU Type | Unity Hot Standby Processor |
| Part Number | 140CPU67160 |
| Internal Memory | 256 KB RAM, expandable via optional memory cards |
| Task Management | 1 Master Task, 1 Fast Task, up to 32 Event-Driven Tasks |
| Program Capacity | Supports multiple programs with separate task scheduling |
| Scan Time | Typical scan time: 1–5 ms per task (depending on program size) |
| Communication Interfaces | Multimode Ethernet ports, optional Serial RS232/RS485 |
| I/O Support | Compatible with Modicon Quantum I/O modules, up to 4096 points |
| Redundancy Features | Hot standby operation with automatic switchover and fault detection |
| Diagnostics | LED indicators for RUN, ERR, I/O fault, Ethernet activity |
| Environmental Ratings | Operating Temperature: 0–60°C; Relative Humidity: 10–95% non-condensing |
| Protection Class | IP20 |
| Power Supply | 24 VDC ±10% typical, < 5 W consumption |
| Mounting | DIN rail or panel mount compatible |
| Safety Compliance | CE, UL, and IEC 61131-2 compliant |
| Physical Dimensions | Approx. 90 mm x 180 mm x 120 mm (H x W x D) |
| Weight | Approx. 1.2 kg |
| Certifications | ISO9001, CE, UL recognized, RoHS compliant |
FAQ
A1: The 140CPU67160 is a Unity Hot Standby processor designed for high-reliability applications.
Q2: Which I/O systems are compatible with this CPU?
A2: It supports Modicon Quantum I/O modules and can handle up to 4096 I/O points.
Q3: Does the 140CPU67160 support redundancy?
A3: Yes, it features hot standby operation with automatic switchover in case of a fault.
Q4: What communication interfaces are available?
A4: It includes multimode Ethernet ports and optional serial RS232/RS485 connections.
Q5: What is the typical operating temperature range?
A5: The CPU operates reliably between 0–60°C with 10–95% non-condensing humidity.
