Overview
Specification
| Parameter | Description / Value |
|---|---|

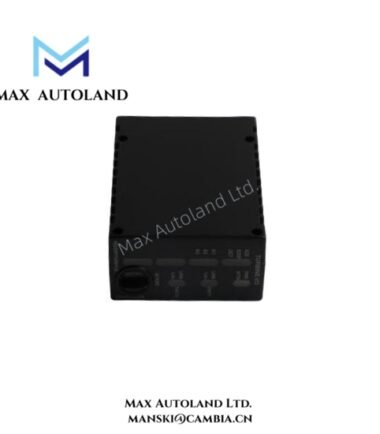

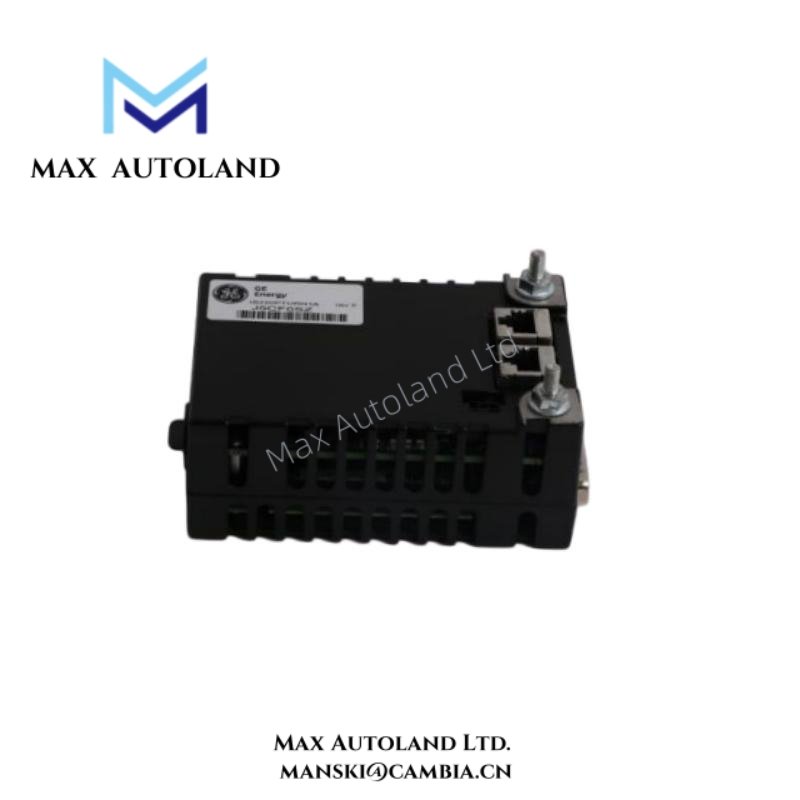

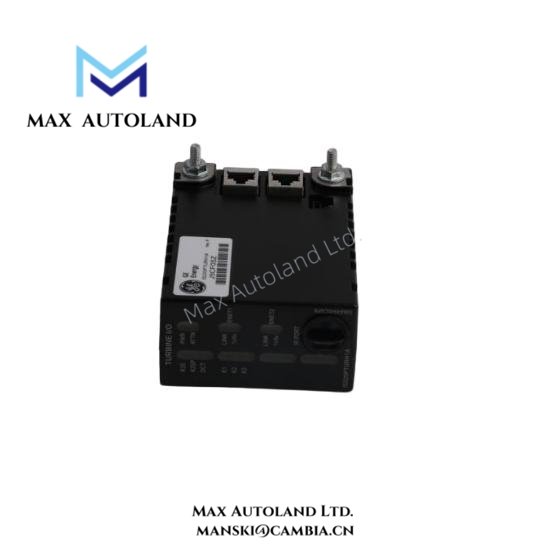

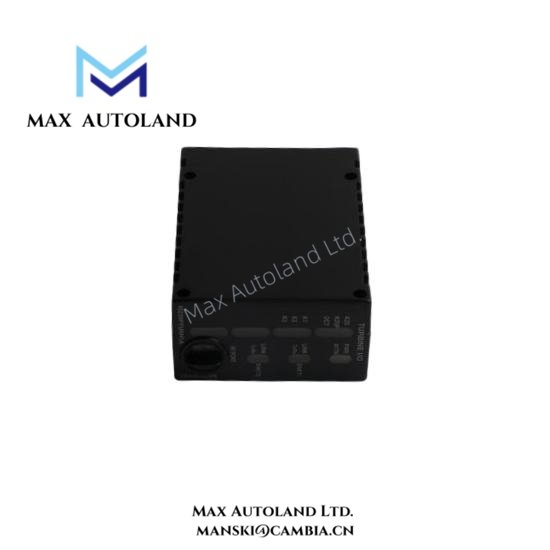

| Model | IS220PTURH1A |
| Module Type | Primary Turbine Trip Module |
| Compatible System | GE Mark VI Control System |
| Trip Function | Primary turbine protection |
| Input Voltage | 24 VDC nominal |
| Output Signal | Contact output for trip initiation |
| Response Time | <10 ms typical from fault detection to trip |
| Isolation | 2 kV RMS input/output isolation |
| Mounting | DIN rail or panel mount |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5–95% non-condensing |
| Status Indicators | LEDs for module health and trip status |
| Compliance | UL, CE, IEC standards |
FAQ
A1: It provides fast, reliable turbine trip protection for GE Mark VI systems.
Q2: Is the module compatible with all IS200 series boards?
A2: Yes, it integrates seamlessly with other IS200 boards for coordinated protection.
Q3: What is the typical response time for a turbine trip?
A3: The module responds in less than 10 ms from fault detection to trip initiation.
Q4: Can the IS220PTURH1A operate under harsh industrial conditions?
A4: Yes, it functions reliably at temperatures from 0°C to 70°C and high electrical noise.
Q5: Does the module provide status indication?
A5: Yes, LEDs indicate both module health and trip activation status.
Q6: What is the input voltage requirement for the module?
A6: The module operates at a nominal 24 VDC input voltage.
