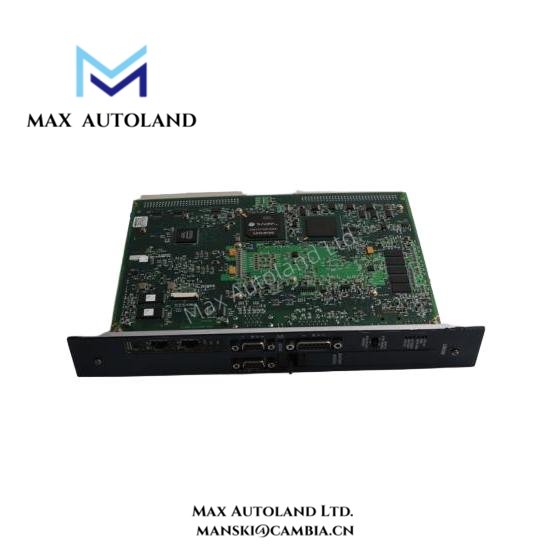

Overview
It supports both single and redundant configurations, ensuring uninterrupted control in critical industrial applications.
Moreover, the module delivers rapid execution of logic and communication tasks while maintaining precise timing accuracy.In addition, IC698CRE030 integrates seamlessly into standard Rx3i backplanes, providing high-speed connectivity to I/O and network modules.
Therefore, engineers deploy this CPU to maximize system reliability, reduce downtime, and improve overall automation performance.
Specification
| Category | Parameter | Specification |
|---|---|---|
| Manufacturer | Brand | GE Automation |
| Model | Product Number | IC698CRE030 |
| Module Type | Function | Central Processing Unit (CPU) |
| System Compatibility | Controller | Rx3i PacSystem |
| Processor | Type | Pentium-M 1.0 GHz |
| Memory | RAM | 256 MB standard, expandable to 512 MB |
| Memory | Flash / Program Storage | 64 MB Flash memory |
| Redundancy | Supported | Yes, hot-standby redundant configuration |
| Backplane | Communication | Rx3i backplane interface |
| Ports | Ethernet | 10/100 Mbps RJ45 |
| Ports | Serial | RS-232/RS-485 for serial communications |
| I/O Support | Max I/O Modules | Up to 128 modules per rack |
| Timing | Clock Accuracy | ±1 ppm, battery-backed |
| Power Requirements | Input Voltage | 5 Vdc from Rx3i backplane |
| Power Requirements | Typical Consumption | 20 W |
| Mechanical | Mounting | Rack-mounted, Rx3i standard backplane |
| Mechanical | Dimensions | 12.7 cm × 3.8 cm × 14.6 cm |
| Mechanical | Weight | 1.2 kg (approx. 2.65 lbs) |
| Environmental | Operating Temperature | 0–60 °C |
| Environmental | Storage Temperature | –40–85 °C |
| Environmental | Humidity | 5–95% non-condensing |
| Certifications | Standards | UL, CE, CSA approved |
| Reliability | MTBF | >100,000 hours at rated conditions |
FAQ
A1: Yes, it supports hot-standby redundant configuration for uninterrupted industrial operations.Q2: What processor does this CPU use?
A2: The module uses a Pentium-M 1.0 GHz processor for high-speed logic execution.
Q3: How much memory does IC698CRE030 provide?
A3: It includes 256 MB RAM standard and 64 MB Flash program storage.
Q4: Which communication ports are available?
A4: Ethernet 10/100 Mbps RJ45 and RS-232/RS-485 serial ports are supported.
Q5: Is it compatible with all Rx3i backplanes?
A5: Yes, it integrates directly into standard Rx3i PacSystem backplanes.
