Overview
It delivers stable, regulated DC power to CPUs and I/O modules in demanding industrial environments.
Moreover, this module supports continuous operation where power quality directly affects system reliability.
Engineers value this unit for its predictable performance across wide input voltage conditions.
Therefore, it remains a trusted choice in legacy automation systems worldwide.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc |
| Product Family | Series 90-70 PLC |

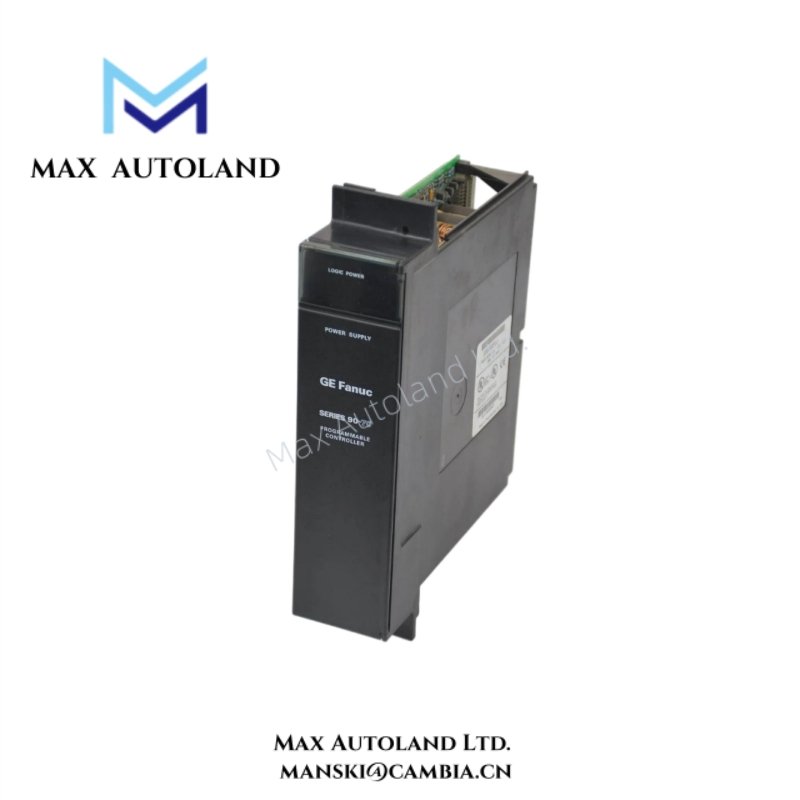

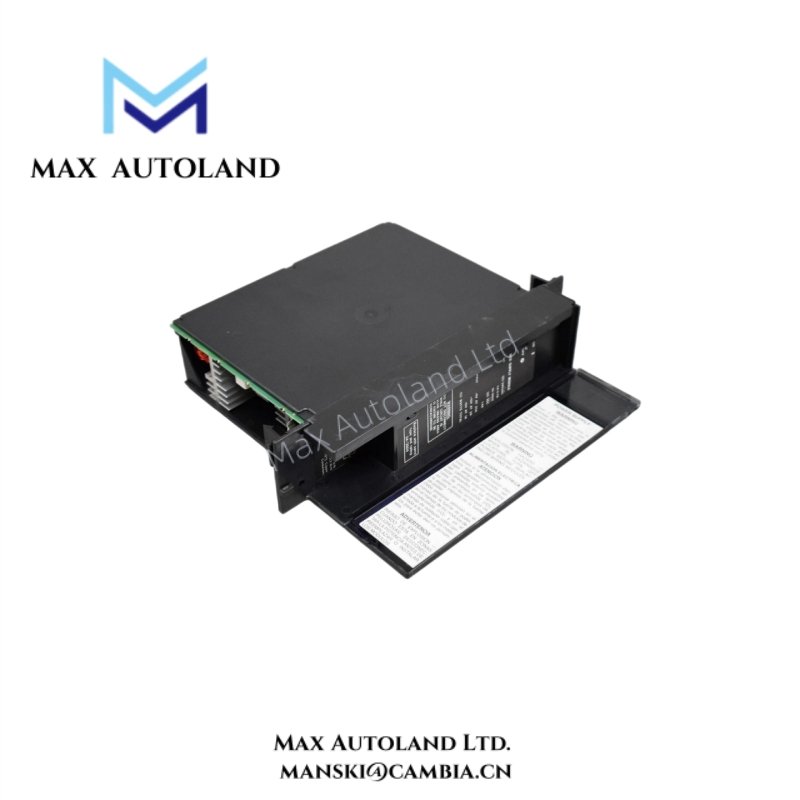

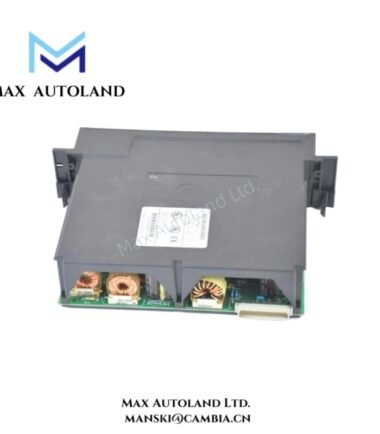

| Model Number | IC697PWR711 |
| Module Type | PLC Power Supply Module |
| Power Supply Function | Provides regulated DC power to PLC rack |
| Compatible Rack Type | GE Series 90-70 Base |
| Input Voltage Options | 120 VAC or 240 VAC selectable |
| Input Voltage Range | 90–264 VAC |
| Input Frequency | 47–63 Hz |
| Nominal Input Current | Approx. 5 A at 120 VAC |
| Inrush Current | Controlled, suitable for industrial panels |
| Output Voltage | 5 VDC regulated |
| Output Voltage Tolerance | ±5% |
| Maximum Output Current | Up to 30 A |
| Total Output Power | Approx. 150 W |
| Output Regulation | Maintains stable voltage under dynamic load |
| Power Distribution | Supports CPU and multiple I/O modules |
| Overcurrent Protection | Yes, automatic current limiting |
| Short Circuit Protection | Yes, self-protecting |
| Overvoltage Protection | Integrated internal protection |
| Status Indicators | Front-panel LED power indicators |
| Cooling Method | Natural convection |
| Mounting Method | Rack-mounted within PLC base |
| Installation Position | Dedicated power supply slot |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | –40°C to +85°C (–40°F to 185°F) |
| Operating Humidity | 5–95% non-condensing |
| Environmental Rating | Designed for industrial control cabinets |
| Electrical Isolation | Input to output isolated |
| Compliance | Industrial automation standards |
| Typical Service Life | Designed for long-term continuous operation |
| Application Environment | Power generation, manufacturing, process control |
| Replacement Strategy | Ideal for legacy Series 90-70 system support |
FAQ
Q1: Is the IC697PWR711 compatible with all Series 90-70 PLC racks?
Yes, it is fully compatible with standard GE Series 90-70 PLC racks and backplanes.
Q2: Can this power supply support multiple I/O modules simultaneously?
Moreover, it delivers sufficient current to power CPUs and multiple I/O modules reliably.
Q3: Does the IC697PWR711 support both 120V and 240V AC input?
Yes, the module supports selectable 120 VAC or 240 VAC input operation.
Q4: Is this module suitable for continuous industrial operation?
Therefore, it is designed for continuous duty in harsh industrial control environments.
Q5: Is the IC697PWR711 still used in modern automation systems?
In addition, it remains widely used for maintaining and upgrading legacy Series 90-70 PLC systems.
