Overview
Specification
| Parameter | Specification | Notes |
|---|---|---|

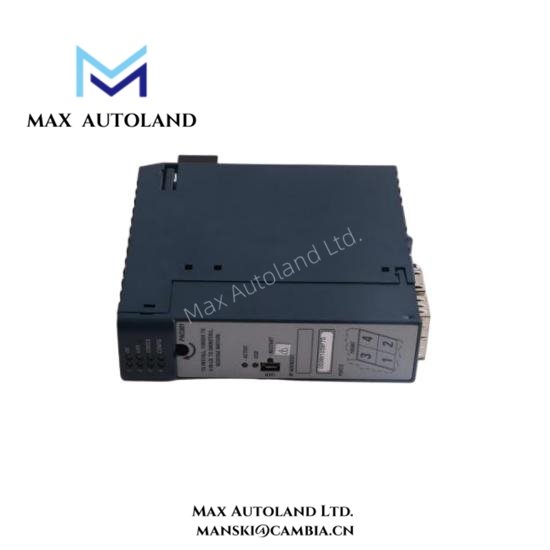

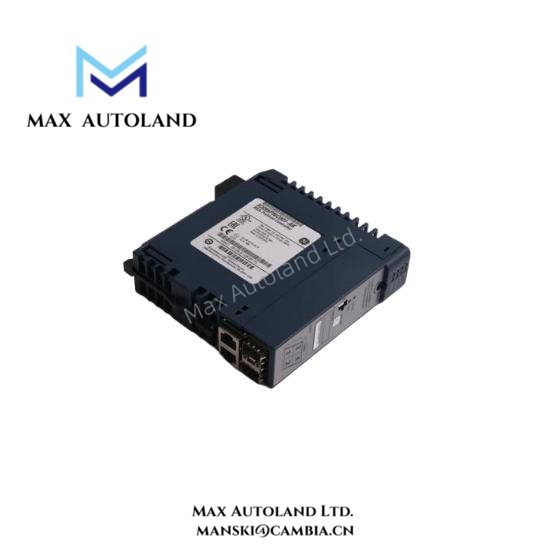

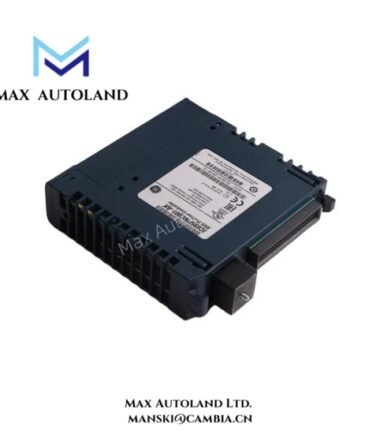

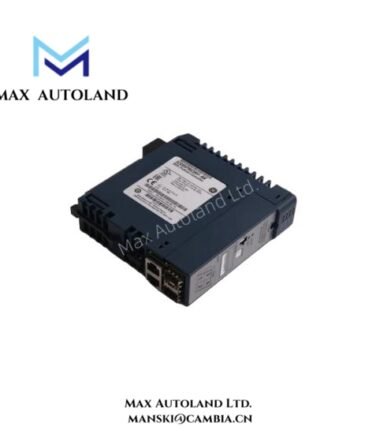

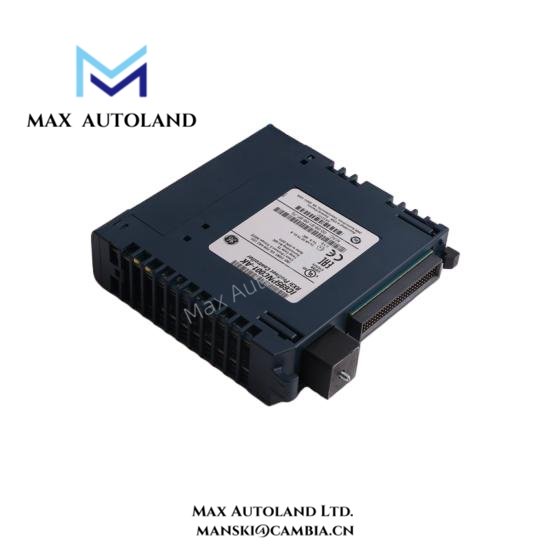

| Model | IC695PNC001 | GE Rx3i Pacsystem Profibus Master Module |
| Manufacturer | GE | General Electric |
| Series | Rx3i Pacsystem | High-performance PLC series |
| Module Type | Profibus Master | Supports DP V1 Master communication |
| Communication Protocol | Profibus DP V1 | Full master capabilities, supports cyclic and acyclic data |
| Max Nodes Supported | 125 nodes | Total Profibus devices on network |
| I/O Interfaces | 1x Profibus DP port | 9-pin D-sub connector |
| Power Requirements | 5 VDC @ 250 mA; optional 24 VDC supply | Typical operation, refer to user manual for max load |
| Energy Storage | Internal capacitor | Maintains configuration and data during power interruptions |
| Dimensions (HxWxD) | 135 mm × 35 mm × 100 mm | Compact form factor for standard Rx3i racks |
| Weight | 0.4 kg | Lightweight for easy installation |
| Mounting | DIN rail | Standard 35 mm EN 60715 rail |
| Operating Temperature | 0–60 °C | Industrial grade environment |
| Storage Temperature | -20–70 °C | For transportation and spare storage |
| Humidity | 5–95% RH non-condensing | Suitable for industrial environments |
| Vibration Resistance | 5–9 Hz: 3.5 mm; 9–150 Hz: 9.8 m/s² | Meets IEC 60068-2-6 standards |
| Shock Resistance | 15 g / 11 ms | Meets IEC 60068-2-27 standards |
| Isolation Voltage | 500 VDC | Between fieldbus interface and internal electronics |
| LED Indicators | 3 LEDs | Status, Fault, Communication |
| Compliance | CE, UL | International safety and EMC standards |
| Firmware Upgrade | Supported | Via Rx3i programming software |
| Diagnostics | Online diagnostics | Bus errors, node status, module health |
| Warranty | 1 year | Manufacturer standard warranty |
FAQ
Q1: Is the GE IC695PNC001 brand new?
A1: Yes, the IC695PNC001 is fully new, factory-sealed, and original.
Q2: How long will shipping take?
A2: Shipping typically ranges from 3 days to 2 weeks depending on order size. Common carriers include DHL and FedEx.
Q3: What if the module has quality issues?
A3: We support returns within 30 days for any genuine quality problem.
Q4: How many Profibus nodes can this module manage?
A4: The IC695PNC001 can support up to 125 nodes on a single Profibus network.
Q5: What are the module dimensions?
A5: The IC695PNC001 measures 135 mm × 35 mm × 100 mm and weighs 0.4 kg, ideal for compact racks.
