Overview

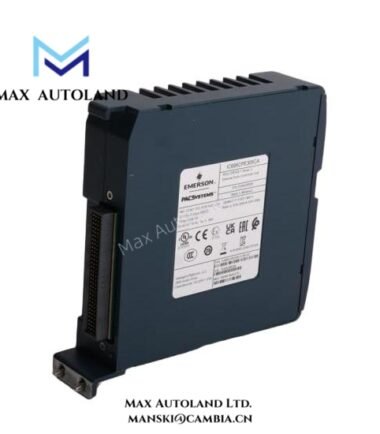

The IC695CPE305 from GE Rx3i Pacsystem delivers high-performance processing for industrial automation systems. Moreover, it provides deterministic control, supporting complex process logic and high-speed I/O operations. In addition, its modular design allows seamless integration into existing Rx3i systems, enhancing factory automation efficiency. Engineers rely on this CPU for scalable, reliable, and flexible control in demanding manufacturing environments.
Specification
| Parameter | Specification | Notes / Details |
|---|---|---|
| Model | IC695CPE305 | GE Rx3i PACSystem Central Processing Unit |
| CPU Type | 32-bit | High-performance microprocessor |
| Memory | 2 MB user program | Non-volatile, supports complex logic |
| I/O Addressing | Up to 4096 points | Supports local and distributed I/O |
| Scan Time | <1 ms per 1K instructions | Dependent on application complexity |
| Communications | Modbus, Ethernet, serial ports | Supports standard industrial protocols |
| Power Supply | 5 VDC / 24 VDC input | Compatible with Rx3i system power modules |
| Operating Temperature | 0°C to 60°C | Industrial-grade thermal tolerance |
| Storage Temperature | -40°C to 85°C | Ensures safe shipping and storage |
| Relative Humidity | 5–95% non-condensing | Standard industrial environment tolerance |
| Dimensions (H × W × D) | 213 mm × 50 mm × 102 mm | Fits standard Rx3i racks |
| Weight | 0.65 kg | Lightweight, rear-mount compatible |
| Indicators | LED status for RUN, FAULT, COMM | Instant operational feedback |
| Certifications | CE, UL | Compliant with industrial safety and EMC standards |
| Redundancy | Optional dual-CPU configuration | Enhances uptime in critical systems |
| MTBF | >100,000 hours | Designed for long-term industrial operation |
FAQ
Q1: Is the IC695CPE305 compatible with older Rx3i modules?
A1: Yes, it integrates with previous Rx3i modules while maintaining backward compatibility.
Q2: What is the typical delivery time for IC695CPE305?
A2: Standard orders ship within 3–14 days, depending on quantity and location.
Q3: Can the CPU handle both discrete and analog I/O modules?
A3: Yes, it supports multiple module types including discrete, analog, and communication modules.
Q4: What environmental conditions does the CPU tolerate?
A4: It operates in temperatures from 0°C to 60°C with 5–95% relative humidity.
Q5: Is technical support available for integration and programming?
A5: GE provides full documentation, software tools, and technical support for system integration.
Q6: Can the CPU be used in redundant configurations?
A6: Yes, it supports dual-CPU redundant configurations to maximize uptime in critical applications.
