Overview
The IC695CPE302 integrates dual Ethernet interfaces to support real-time control and network segmentation. Therefore, system designers can separate I/O traffic from supervisory communication without additional hardware. In addition, the CPU supports advanced diagnostics and online configuration changes, reducing commissioning time. Its high-speed processor ensures consistent scan times even under heavy logic loads.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | GE / Emerson Automation Solutions |
| Product Series | PACSystems RX3i |
| Model Number | IC695CPE302 |
| Module Type | Central Processing Unit (CPU) |
| Processor Architecture | High-performance 32-bit RISC processor |
| User Memory (Program) | 10 MB (application dependent, non-volatile) |
| User Memory (Data) | 2 MB (variable storage) |
| System Scan Performance | Deterministic execution with high throughput |
| Embedded Ethernet Ports | 2 × 10/100/1000 Mbps auto-sensing RJ45 |
| Supported Protocols | SRTP, Modbus TCP, PROFINET IO Controller |
| Backplane Compatibility | RX3i Universal Backplane |
| Redundancy Support | CPU redundancy supported with compatible modules |
| Embedded Web Server | Yes – for diagnostics and status access |
| Serial Communication Support | Optional via expansion modules |
| Programming Software | Proficy Machine Edition |
| I/O Expansion Support | Supports distributed I/O racks and remote I/O |
| Real-Time Clock | Yes |
| Watchdog Timer | Integrated for fault protection |
| Power Supply Source | Supplied via RX3i backplane bus |
| Power Consumption | Approx. 900 mA @ 5 VDC (typical) |
| Operating Temperature | 0°C to 60°C (industrial range) |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration Resistance | IEC 60068-2-6 compliant |
| Shock Resistance | IEC 60068-2-27 compliant |
| EMC / Safety Compliance | CE, UL recognized, industrial automation standards |

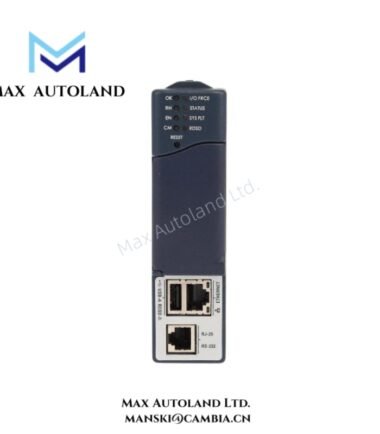

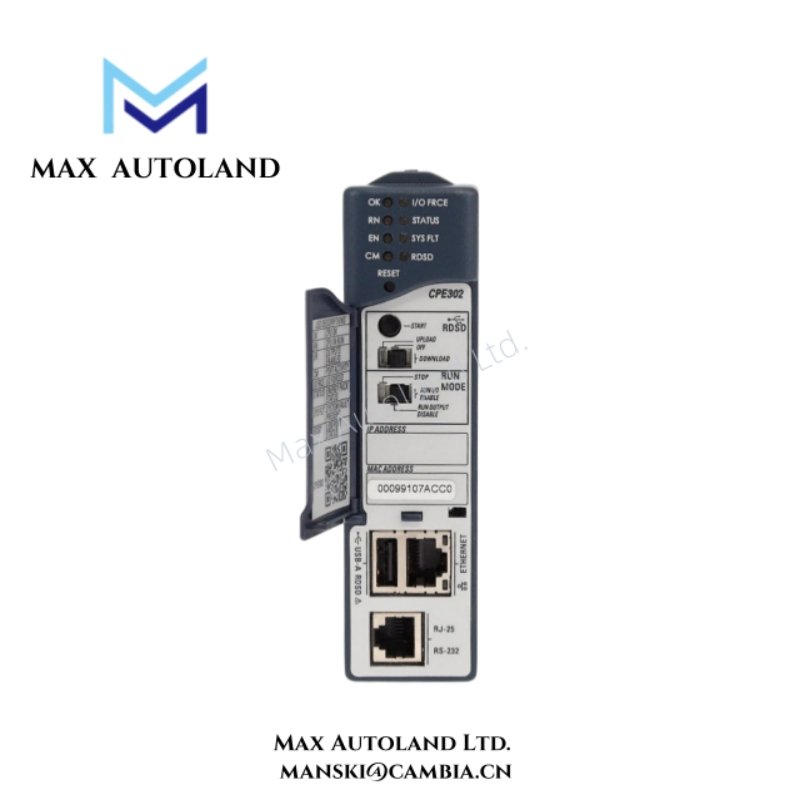

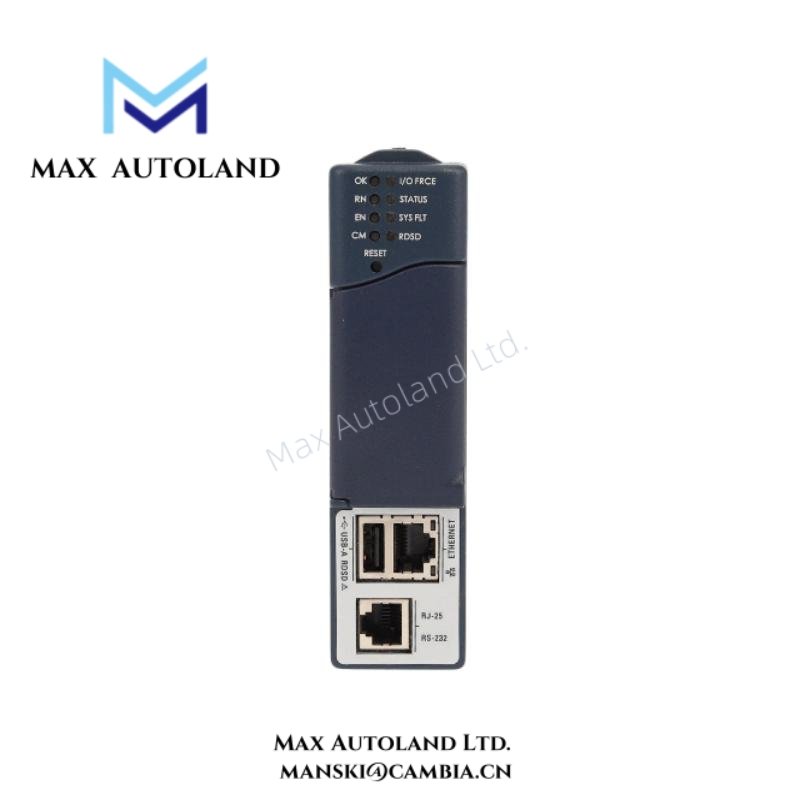

| LED Indicators | Status, Run, Fault, Ethernet activity |
| Diagnostics Features | Fault logs, online status reporting, network diagnostics |
| Mounting | RX3i rack slot mount |
| Application Domains | Process control, manufacturing automation, utilities, energy systems |
FAQ
A1: It executes control logic, manages I/O communication, and coordinates networked automation devices within an RX3i system.
Q2: Does the IC695CPE302 support PROFINET communication?
A2: Yes, it functions as a PROFINET IO Controller for distributed field devices and remote I/O networks.
Q3: How many Ethernet ports are integrated in this CPU?
A3: The module includes two embedded auto-sensing Gigabit Ethernet ports for flexible network architecture.
Q4: Which software is required to program the IC695CPE302?
A4: Engineers use Proficy Machine Edition to configure hardware, develop logic, and perform diagnostics.
Q5: Can this CPU be used in redundant control systems?
A5: Yes, it supports redundancy when configured with compatible RX3i hardware components.
