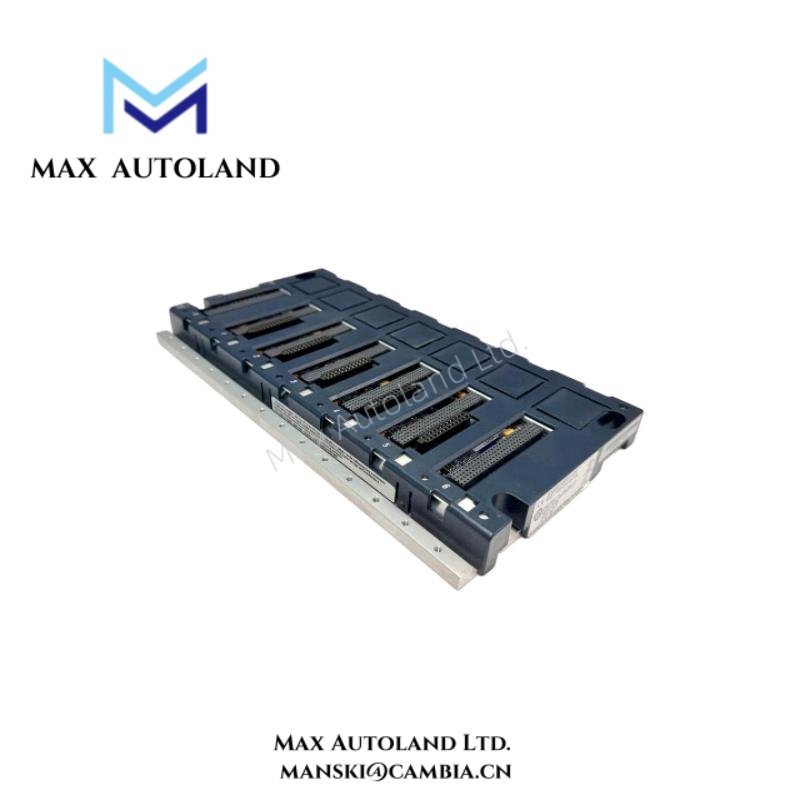

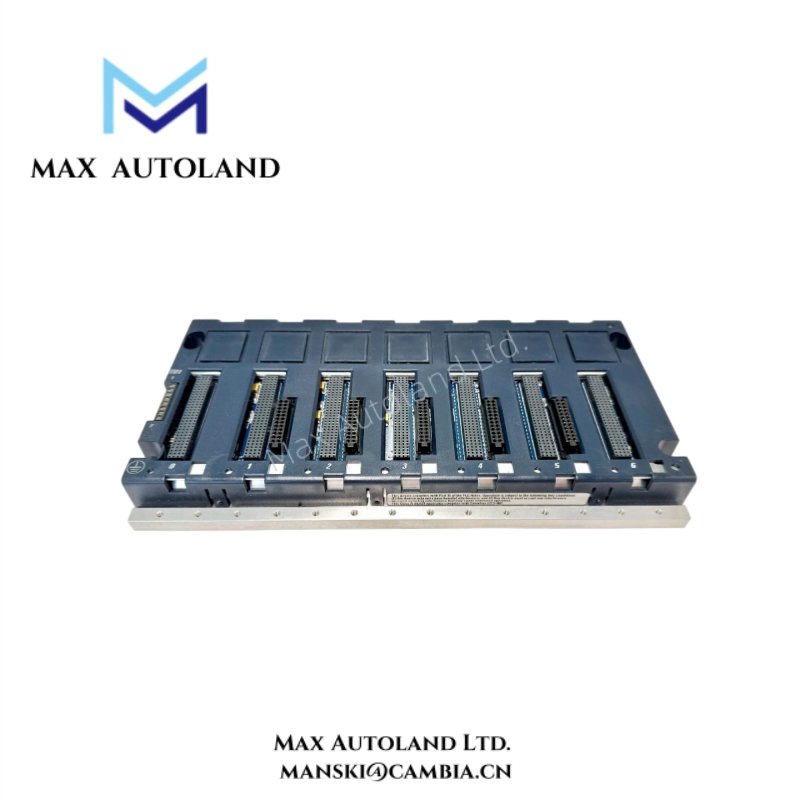

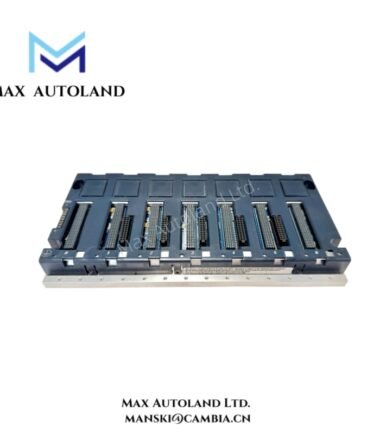

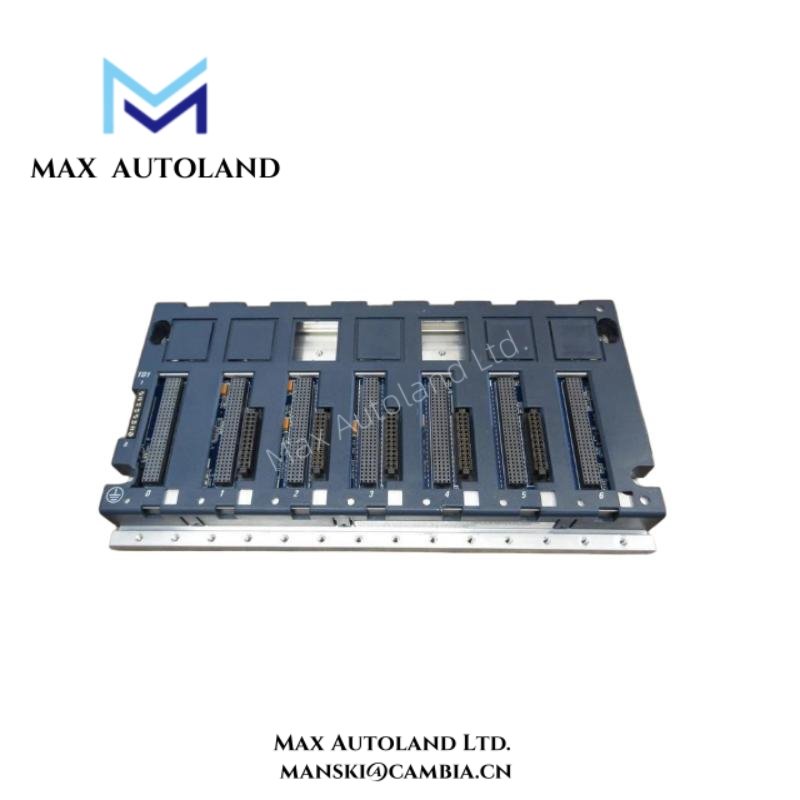

Overview
It forms the structural and electrical foundation of modular PLC systems in demanding industrial environments.
Engineers use IC695CHS007 to integrate CPUs, power supplies, communication modules, and distributed I/O units.
Moreover, the universal architecture supports both RX3i and selected Series 90-30 modules for migration flexibility.
Specification
| Parameter | Detailed Specification |
|---|---|
| Manufacturer | GE Intelligent Platforms / Emerson Automation |
| Model Number | IC695CHS007 |
| Product Type | 7-Slot Universal Backplane |
| Series | PACSystems RX3i |
| Platform Compatibility | RX3i CPUs, RX3i I/O modules, selected Series 90-30 modules |
| Total Slots | 7 slots |
| Slot 0 Function | Dedicated Power Supply slot |
| Slots 1–5 | PCI bus and high-speed serial bus module support |
| Slot 6 | PCI bus module support (high-performance modules) |
| Backplane Communication | Integrated high-speed PCI bus and serial communication bus |
| Data Transfer Architecture | Parallel PCI bus for CPU/I/O communication |
| Power Distribution | Through installed RX3i power supply module |
| Backplane Input Power | +24 VDC supplied via power supply module |
| Internal Current Capacity – 3.3 V Rail | Approx. 600 mA maximum |
| Internal Current Capacity – 5 V Rail | Approx. 240 mA maximum |
| Grounding | Integrated chassis grounding point and backplane ground plane |
| Mounting Orientation | Horizontal mounting only |
| Mounting Method | Panel-mounted inside industrial control cabinet |
| Enclosure Requirement | IP20; requires protective enclosure for higher ratings |
| Recommended Cabinet Clearance | Minimum 102 mm (4 in) above and below chassis |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | –40°C to +85°C |
| Relative Humidity | 5%–95%, non-condensing |
| Vibration Resistance | Designed for industrial control cabinet environments |
| Shock Resistance | Complies with PLC mechanical standards |
| Approximate Dimensions (H × W × D) | 141 mm × 265 mm × 147 mm |
| Approximate Weight | 1.0–1.1 kg |
| Construction Material | Industrial-grade metal chassis with integrated PCB backplane |
| Installation Environment | Industrial automation, process control, energy, manufacturing systems |
| Typical Service Life | Long-term continuous industrial operation when installed per guidelines |
FAQ
Q1: Is the IC695CHS007 brand new and original?
Yes, we supply brand-new original factory units with guaranteed authenticity.
Q2: Do you keep IC695CHS007 in stock?
We maintain available inventory, and most orders ship from stock.
Q3: How long does shipping take?
We ship within 3 days to 2 weeks depending on order quantity.
Q4: Which carriers do you use for delivery?
We commonly use DHL and other major international logistics providers.
Q5: What modules can I install on IC695CHS007?
You can install RX3i CPUs, power supplies, communication modules, and supported 90-30 I/O modules.
Q6: What if the product has a quality issue?
We support returns within 30 days if any quality problem occurs.
