Overview
Specification
| Parameter | Specification |
|---|---|
| Module Type | Digital Input Module |
| Number of Inputs | 32 discrete inputs |
| Input Voltage Range | 18–30 VDC nominal, 24 VDC typical |
| Input Current per Channel | 3.5 mA typical, max 5 mA |
| Input Impedance | 6.8 kΩ ±5% |
| Input Filter Time | 1 ms typical, programmable |
| Isolation | Channel-to-channel and channel-to-backplane, 500 VDC dielectric isolation |
| Response Time | 1 ms typical, 3 ms max |

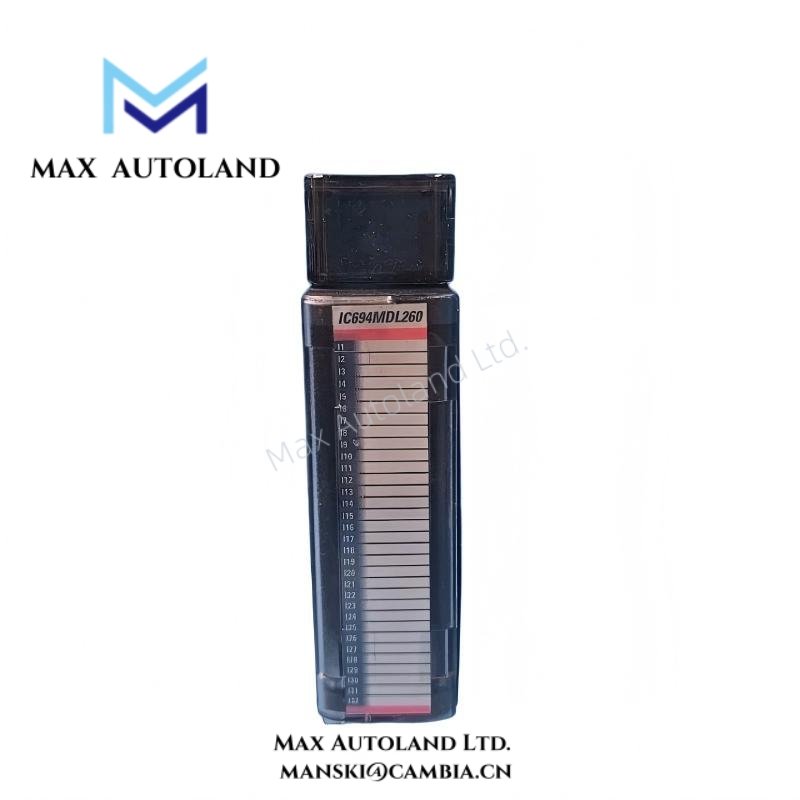

| LED Status Indicators | Individual LED per input channel for real-time diagnostics |
| Mounting | DIN rail or Rx3i backplane |
| Operating Temperature Range | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration Resistance | 5–9 Hz: 3.5 mm double amplitude; 9–150 Hz: 0.5 g |
| Shock Resistance | 15 g, 11 ms half-sine, IEC 60068-2-27 |
| Power Consumption | 1.5 W typical |
| Communication Interface | Backplane bus connection |
| Certifications | UL, CE, CSA |
| Dimensions (W x H x D) | 12.7 cm x 3.8 cm x 12.7 cm |
| Weight | 0.28 kg |
| Safety Standards | IEC 61131-2, EN 61131-2 |
| Environmental Compliance | RoHS, REACH compliant |
FAQ
Q1: How many digital inputs does the IC694MDL260 support?
A1: The module provides 32 isolated digital inputs for various field devices and sensors.
Q2: Can this module operate in harsh industrial environments?
A2: Yes, it supports temperatures from 0°C to 70°C and is resistant to electrical noise.
Q3: Is the module compatible with other Rx3i modules?
A3: Absolutely, it integrates seamlessly with the Rx3i modular platform.
Q4: Does the module require individual input wiring verification?
A4: Yes, regular verification ensures signal integrity and reliable operation.
Q5: Are there LED indicators for diagnostics?
A5: Yes, each input channel has an LED for real-time status feedback.
