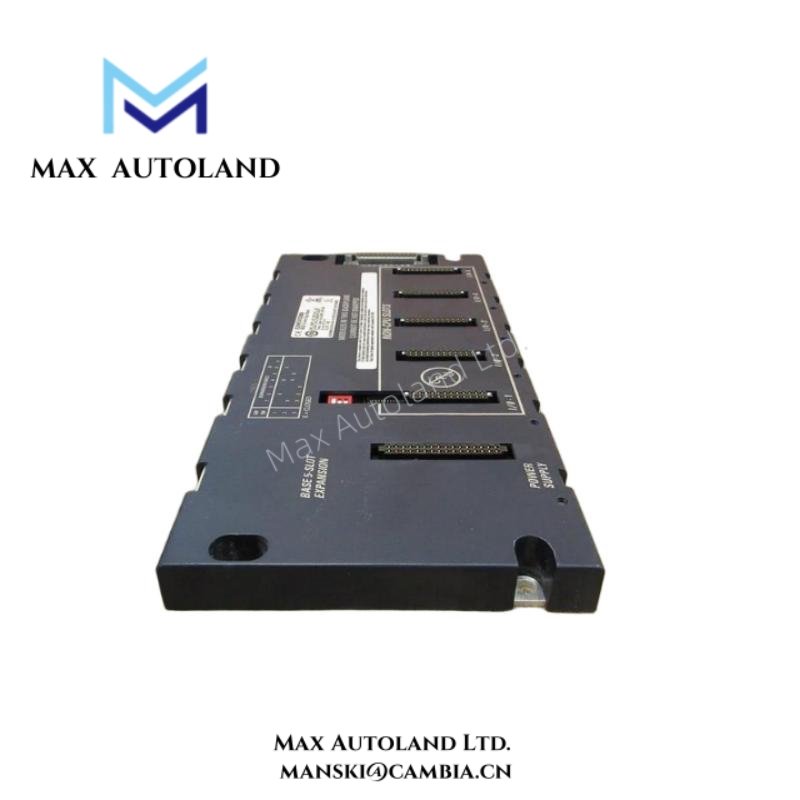

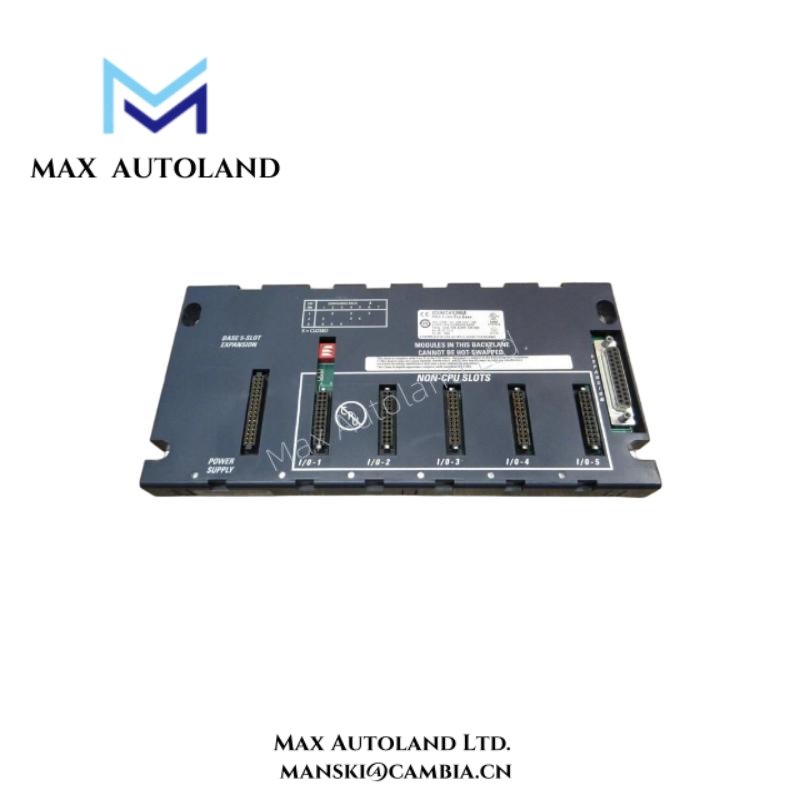

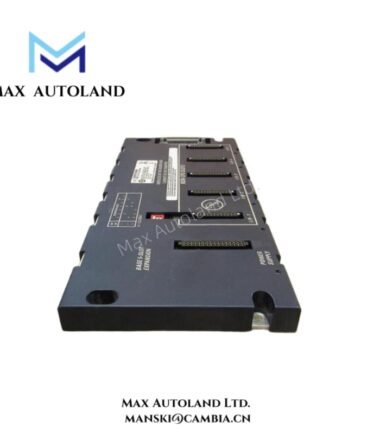

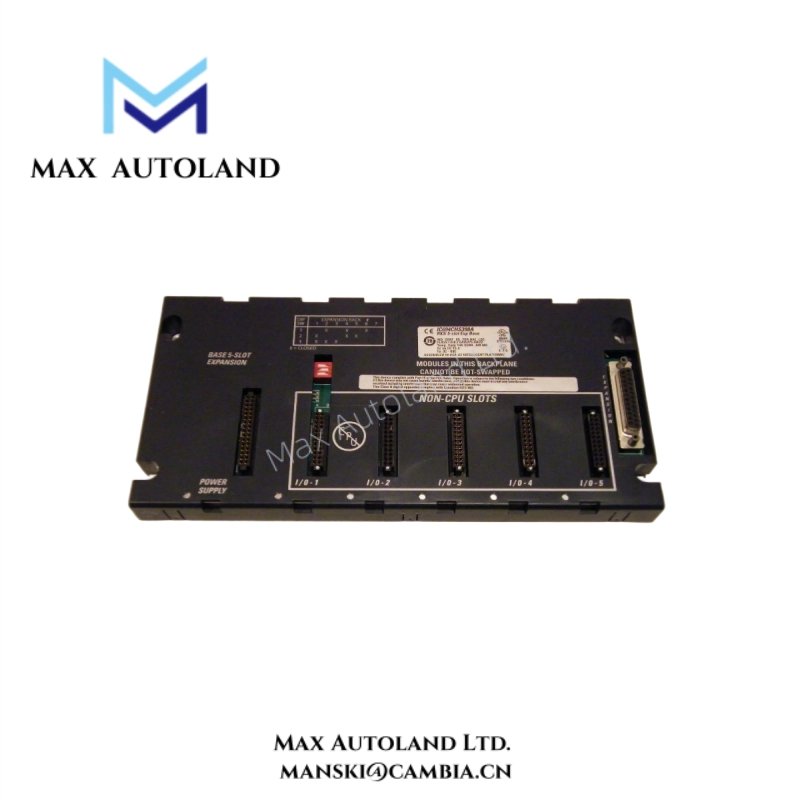

Overview
The IC694CHS398 connects to the main rack through a high-speed serial expansion interface. Therefore, it enables reliable data exchange across local and expansion racks with minimal latency. In addition, the backplane supports a wide range of RX3i and compatible I/O modules. Its rugged industrial design ensures consistent performance in demanding factory conditions.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | GE (General Electric) |
| Product Series | PACSystems RX3i / Series 90-30 Compatible |
| Model Number | IC694CHS398 |
| Module Type | 5-Slot Serial Expansion Backplane (Expansion Chassis) |
| Number of Slots | 5 I/O module slots |
| Slot Type | Standard RX3i / 90-30 compatible module slots |
| Expansion Interface | High-speed serial expansion bus |
| Rack-to-Rack Communication | Dedicated expansion cable connection |
| Maximum Expansion Distance | Application dependent, per GE expansion cable specifications |
| Backplane Bus Architecture | Proprietary RX3i parallel backplane bus |
| Supported Modules | Digital I/O, Analog I/O, Communication, Specialty Modules (system dependent) |
| CPU Location | CPU installed in main rack (not in expansion chassis) |
| Power Supply Requirement | Requires compatible rack power supply module (installed separately) |
| Power Distribution | Distributed internally across all five slots |
| Mounting Type | Panel-mounted metal chassis |
| Construction Material | Industrial-grade metal frame with integrated backplane PCB |
| Grounding | Protective earth grounding required for safe installation |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Vibration Resistance | IEC 60068-2-6 compliant (industrial environments) |
| Shock Resistance | IEC 60068-2-27 compliant |
| EMC Compliance | CE compliant (model and installation dependent) |
| Safety Certification | UL recognized (revision dependent) |
| Installation Environment | Industrial control cabinet installation |
| Application Role | Local or distributed I/O expansion rack |
| Typical Use Case | Expanding system capacity without replacing main rack |
FAQ
A1: It provides five additional I/O slots to expand system capacity through a serial expansion connection.
Q2: Can a CPU be installed in the IC694CHS398 chassis?
A2: No, the CPU must remain in the main rack, while this chassis functions as an expansion unit.
Q3: Does the IC694CHS398 include a power supply module?
A3: No, it requires a separately installed compatible RX3i or Series 90-30 power supply.
Q4: How does the expansion chassis communicate with the main rack?
A4: It uses a high-speed serial expansion interface cable for rack-to-rack data communication.
Q5: What types of modules can be installed in this backplane?
A5: It supports compatible digital, analog, communication, and specialty I/O modules.
