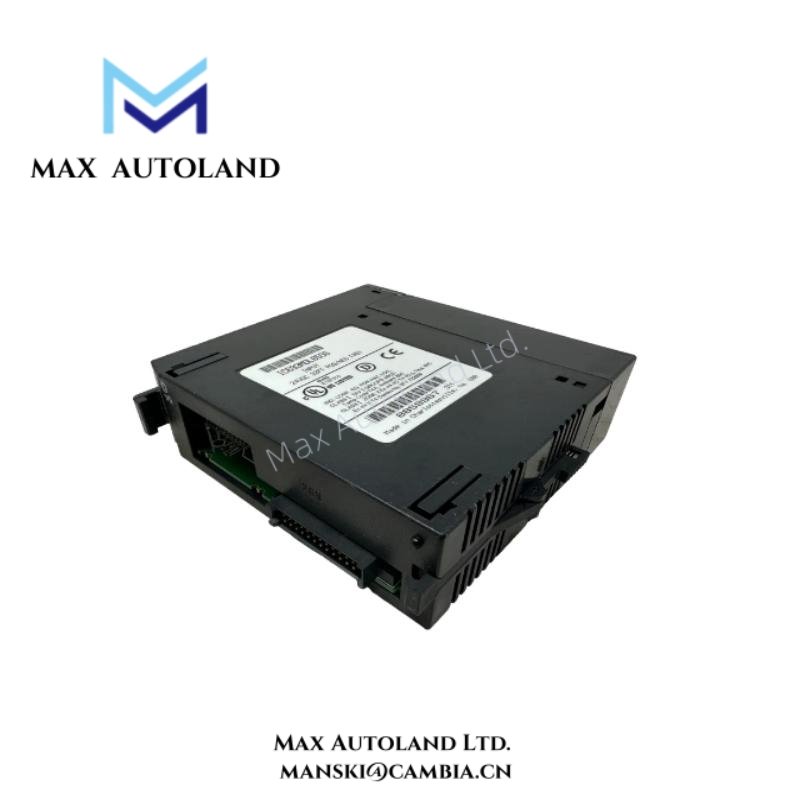

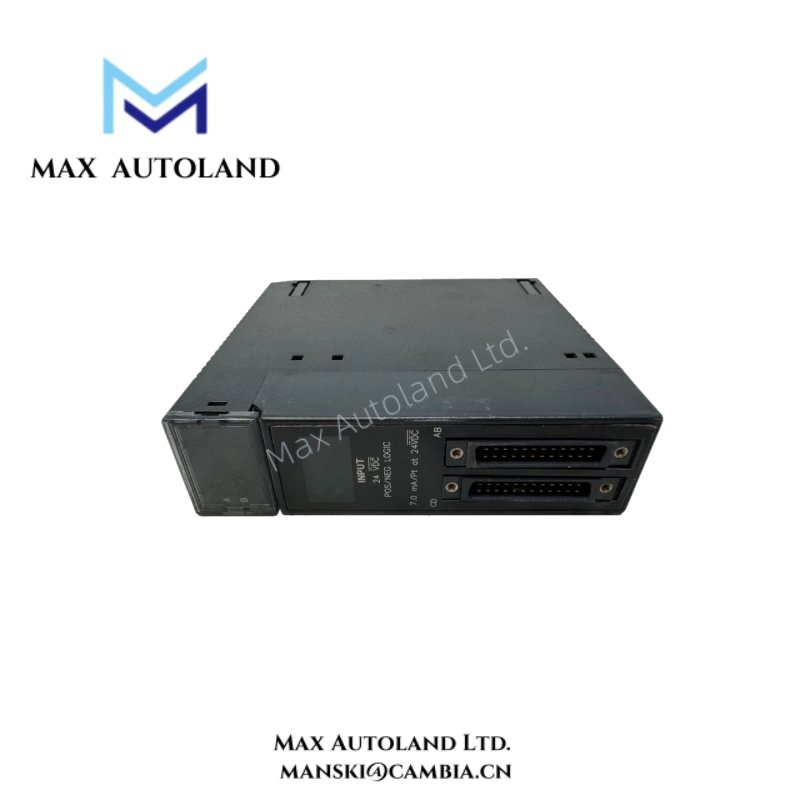

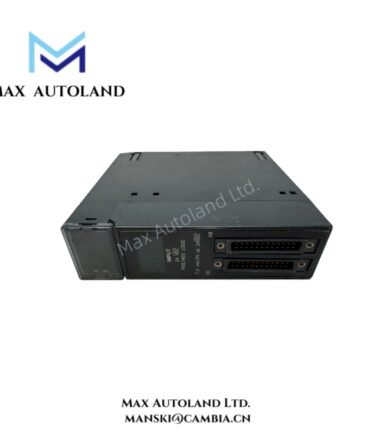

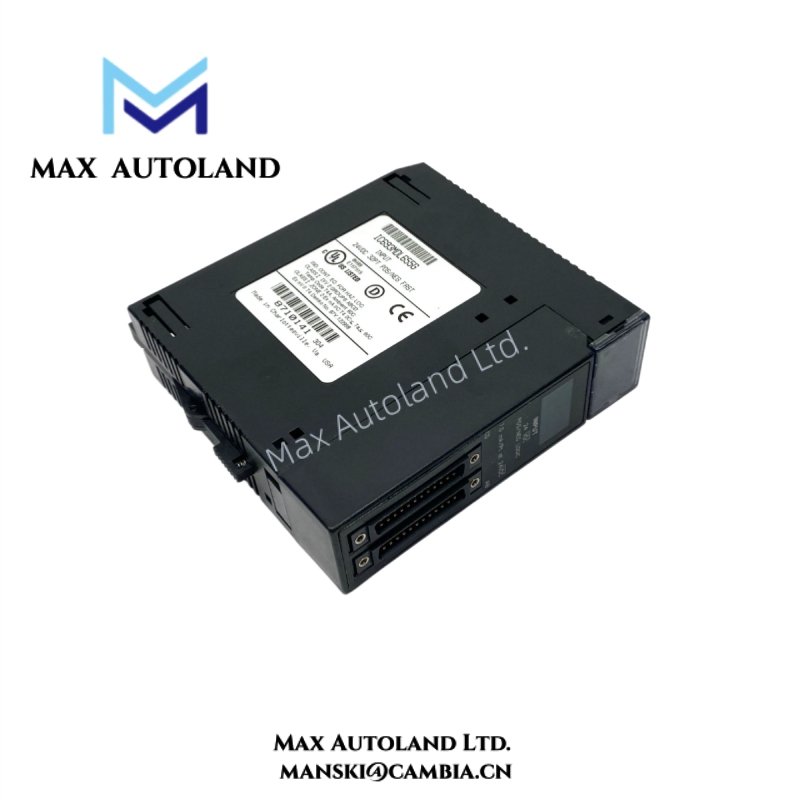

Overview
It supports both positive and negative logic inputs, allowing flexible wiring across diverse industrial applications.
Moreover, General Electric engineered this module for stable operation and long service life.Because the IC693MDL655 handles multiple input points efficiently, control cabinets stay compact and organized.
Additionally, clear status indication helps technicians verify field signal conditions quickly.
Therefore, troubleshooting time decreases and system uptime improves.
Specification
| Category | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Model Number | IC693MDL655 |
| Product Series | Series 90-30 |
| Module Type | DC Digital Input Module |
| Input Points | 32 discrete input channels |
| Input Logic | Positive logic (sourcing) and Negative logic (sinking) |
| Rated Input Voltage | 24 VDC nominal |
| Input Voltage Range | 0–30 VDC |
| ON-State Voltage | ≥ 11 VDC |
| OFF-State Voltage | ≤ 5 VDC |
| Input Current | Approx. 7 mA per point at 24 VDC |
| Input Impedance | Approx. 3.3 kΩ |
| Input Response Time | ~7 ms ON / OFF |
| Electrical Isolation | 1500 VAC field-to-backplane |
| Group Isolation | Inputs grouped for common reference |
| Status Indicators | Individual LED per input channel |
| Field Wiring Method | Removable terminal block |
| Wiring Capacity | 14–22 AWG solid or stranded |
| Backplane Power Consumption | Approx. 300 mA at 5 VDC |
| Energy Storage | None |
| Mounting Location | Series 90-30 baseplate |
| Compatible CPUs | GE Series 90-30 CPUs |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | −40 °C to +85 °C |
| Humidity | 5–95% non-condensing |
| Vibration Resistance | IEC 60068-2 compliant |
| Dimensions (H × W × D) | Approx. 102 × 34 × 81 mm |
| Weight | Approx. 0.3 kg |
| Certification | Industrial control equipment standard compliance |
FAQ
Yes, the IC693MDL655 is brand-new, original, and factory sealed.
Q2: Do you have IC693MDL655 modules in stock?
Yes, we maintain stock for the IC693MDL655 and support immediate order processing.
Q3: Does IC693MDL655 support both sourcing and sinking inputs?
Yes, the IC693MDL655 supports positive and negative logic through external wiring selection.
Q4: How fast do you ship after receiving an order?
We ship within 3 days to 2 weeks, depending on order size and preparation requirements.
Q5: Which shipping carriers do you usually use?
We commonly ship with DHL and other reliable international logistics providers.
Q6: What happens if the module has a quality issue?
We support returns within 30 days if any verified quality problems occur.
