Overview

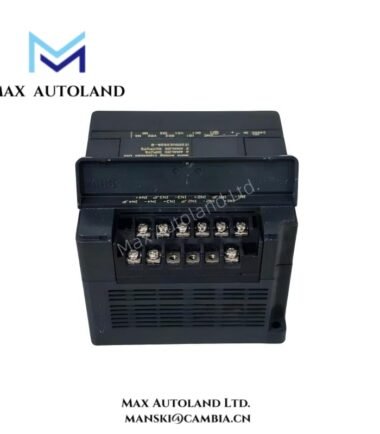

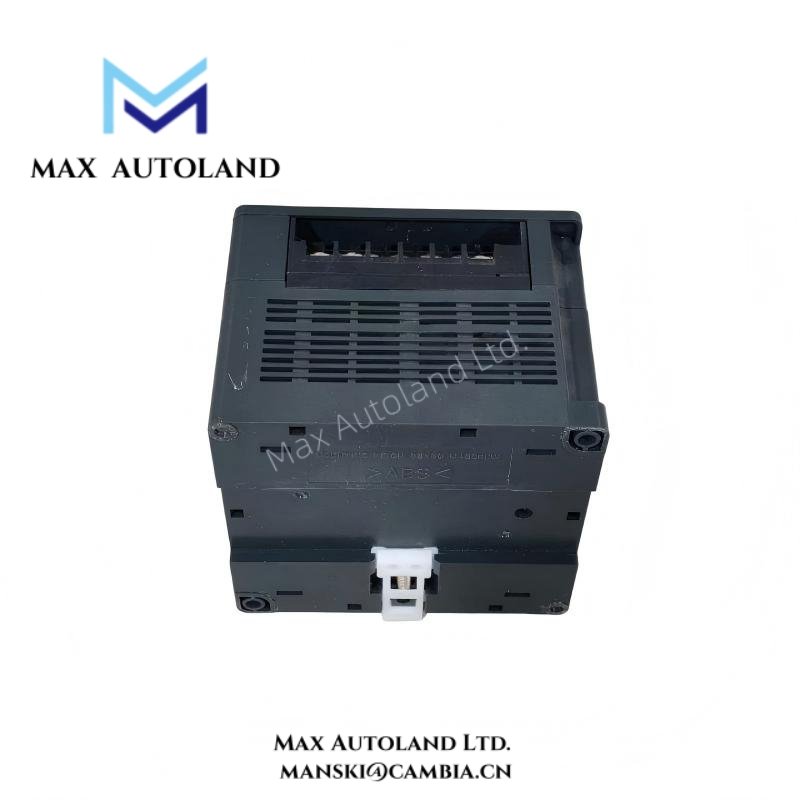

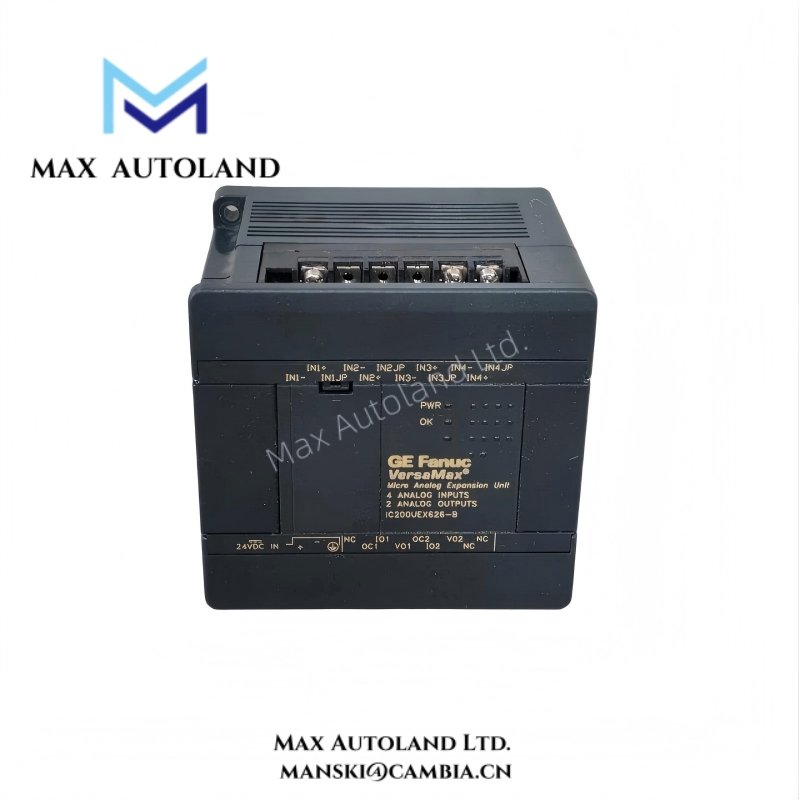

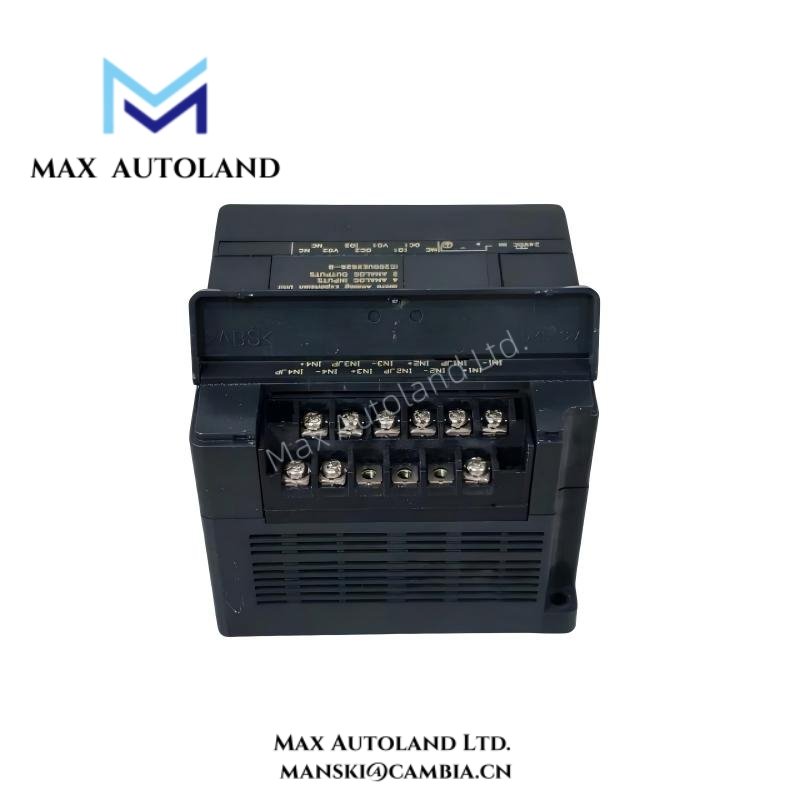

GE designs IC200UEX626 as a compact analog expansion unit for VersaMax Micro controllers.
It expands controller capability with six high-resolution analog input channels.
Engineers integrate IC200UEX626 directly with VersaMax Micro CPUs for seamless signal acquisition.
The module supports both voltage and current analog input types for flexible applications.
Its compact DIN-rail housing optimizes panel layout in space-constrained cabinets.
Additionally, precise signal conversion ensures accurate monitoring of process variables.
Manufacturers rely on IC200UEX626 for temperature, pressure, and flow signal measurement.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | GE Automation |
| Model | IC200UEX626 |
| Series | VersaMax Micro Expansion |
| Module Type | Analog Input Expansion Unit |
| Number of Channels | 6 analog input channels |
| Input Types | 0–10 VDC, ±10 VDC, 4–20 mA |
| Resolution | 12-bit |
| Input Impedance (Voltage) | ≥200 kΩ |
| Input Resistance (Current) | 250 Ω nominal |
| Accuracy | ±0.5% of full scale |
| Update Time | 10 ms typical |
| Power Supply | 24 VDC via controller |
| Current Consumption | Approx. 150 mA |
| Isolation | Channel-to-backplane isolation |
| Mounting | DIN rail |
| Dimensions (H×W×D) | 110 mm × 90 mm × 60 mm |
| Weight | 0.35 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% RH non-condensing |
| Vibration Resistance | IEC industrial standard compliant |
| LED Indicators | Power and channel diagnostics |
| Energy Storage | Not required (analog input module) |
| Typical Applications | Process monitoring, sensor data acquisition, industrial automation |
FAQ
Q1: Is IC200UEX626 brand new and original?
A1: Yes, IC200UEX626 is 100% brand-new, factory-sealed, and genuine GE VersaMax equipment.
Q2: How many analog channels does the unit provide?
A2: IC200UEX626 provides six independent analog input channels.
Q3: What input signal types does it support?
A3: It supports 0–10 VDC, ±10 VDC, and 4–20 mA analog signals.
Q4: What is the module resolution and accuracy?
A4: The module offers 12-bit resolution with ±0.5% full-scale accuracy.
Q5: What is the operating temperature range?
A5: It operates from 0°C to 60°C under standard industrial conditions.
Q6: How fast can it ship?
A6: We keep stock available; shipping typically takes 3 days to 2 weeks, depending on order size, via DHL or similar carriers.
