Overview

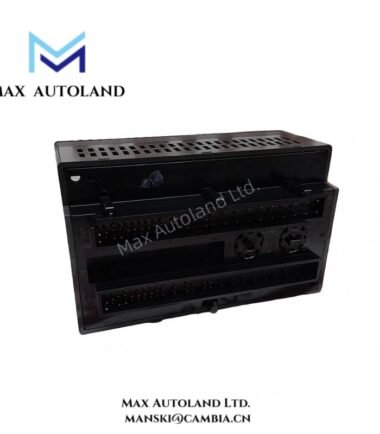

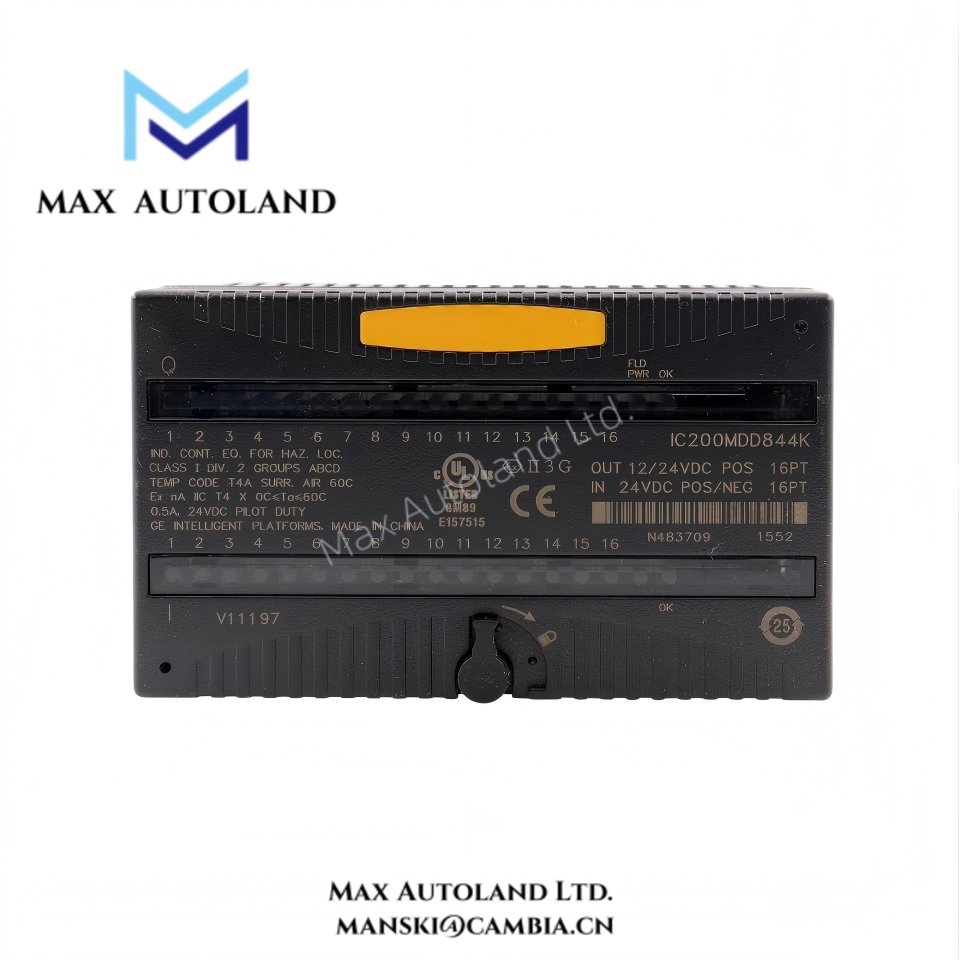

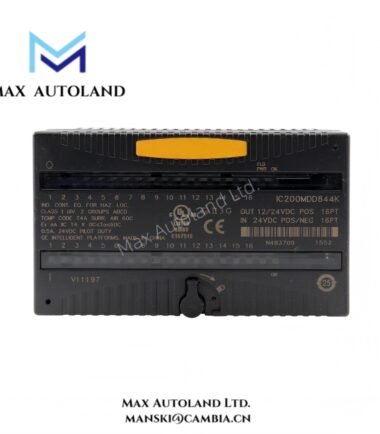

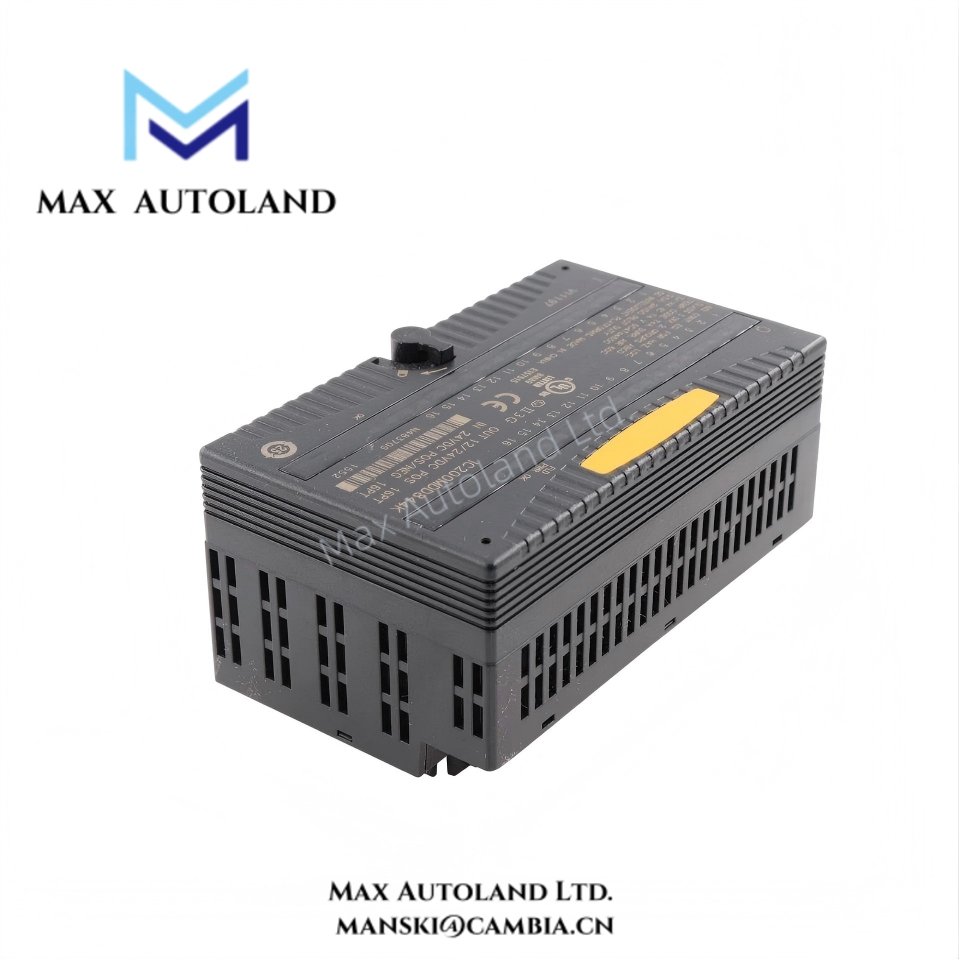

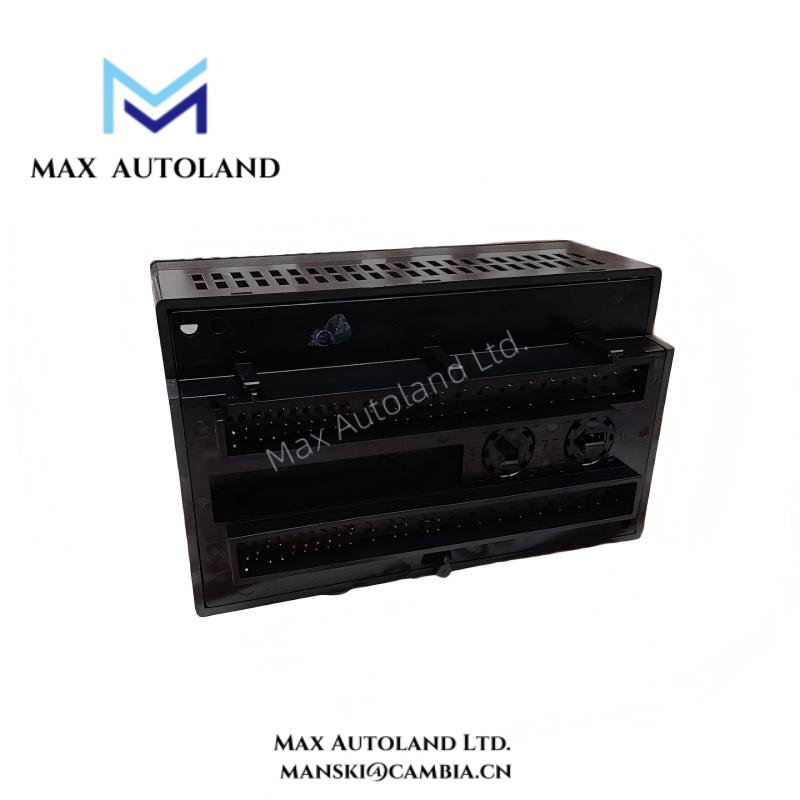

GE designs IC200MDD844 as a high-performance discrete mixed I/O module for VersaMax systems.
It provides 16 points with both input and output capabilities for industrial automation.
The module supports 24 VDC positive logic, allowing seamless integration with standard field devices.
Engineers rely on IC200MDD844 to monitor and control sensors, switches, and actuators simultaneously.
Its compact DIN-rail footprint reduces panel space requirements while maintaining durability.
Internal isolation prevents channel interference and enhances signal integrity.
Additionally, IC200MDD844 operates reliably across typical industrial temperature ranges.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | GE Automation |
| Model | IC200MDD844 |
| Series | VersaMax Discrete I/O |
| Module Type | Mixed Discrete Input/Output Module |
| Number of Input Points | 8 discrete points |
| Number of Output Points | 8 discrete points |
| Input Logic | 24 VDC positive logic (sourcing) |
| Input Voltage Range | 19.2–30 VDC |
| Input Current per Point | 3–7 mA typical |
| Output Logic | 24 VDC sourcing |
| Output Current per Point | 0.5 A maximum |
| Output Short-Circuit Protection | Yes, self-resetting |
| Channel Isolation | Input-to-output isolated, channel-to-channel isolated |
| Response Time | <10 ms typical |
| Mounting | Standard DIN rail |
| Dimensions (H×W×D) | 120 mm × 55 mm × 45 mm |
| Weight | 0.3 kg |
| Operating Temperature | 0–60°C (32–140°F) |
| Storage Temperature | -20–70°C (-4–158°F) |
| Humidity | 5–95% RH, non-condensing |
| Vibration Resistance | 5–9 Hz ±3.5 mm, 9–150 Hz 1 g |
| Shock Resistance | 15 g, 11 ms, 3 axes |
| LED Indicators | Input and output status |
| Power Supply | Powered via VersaMax backplane |
| Energy Storage | Not required (passive I/O module) |
| Typical Applications | Switch monitoring, push buttons, relay control, actuators in industrial automation |
| Compliance & Certifications | CE, UL, CSA certified |
FAQ
Q1: Is IC200MDD844 brand new and original?
A1: Yes, IC200MDD844 is 100% brand-new, factory-sealed, and genuine GE Automation equipment.
Q2: How many input and output points does the module provide?
A2: It provides 8 discrete inputs and 8 discrete outputs, all 24 VDC positive logic.
Q3: What is the output current per point?
A3: Each output can supply up to 0.5 A, suitable for standard industrial devices.
Q4: What is the operating temperature and humidity range?
A4: It operates from 0–60°C and tolerates 5–95% RH non-condensing.
Q5: How fast is the module’s response time?
A5: IC200MDD844 responds in less than 10 milliseconds, ensuring timely signal processing.
Q6: How quickly can it be shipped?
A6: We maintain stock; shipping typically takes 3 days to 2 weeks depending on order size via DHL or other couriers.
