Overview

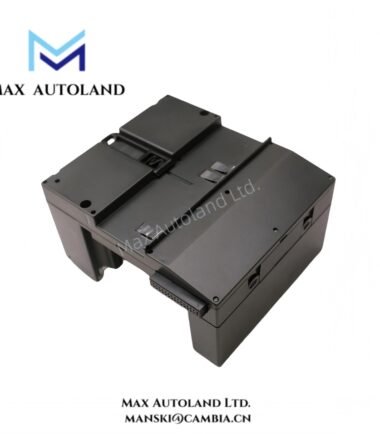

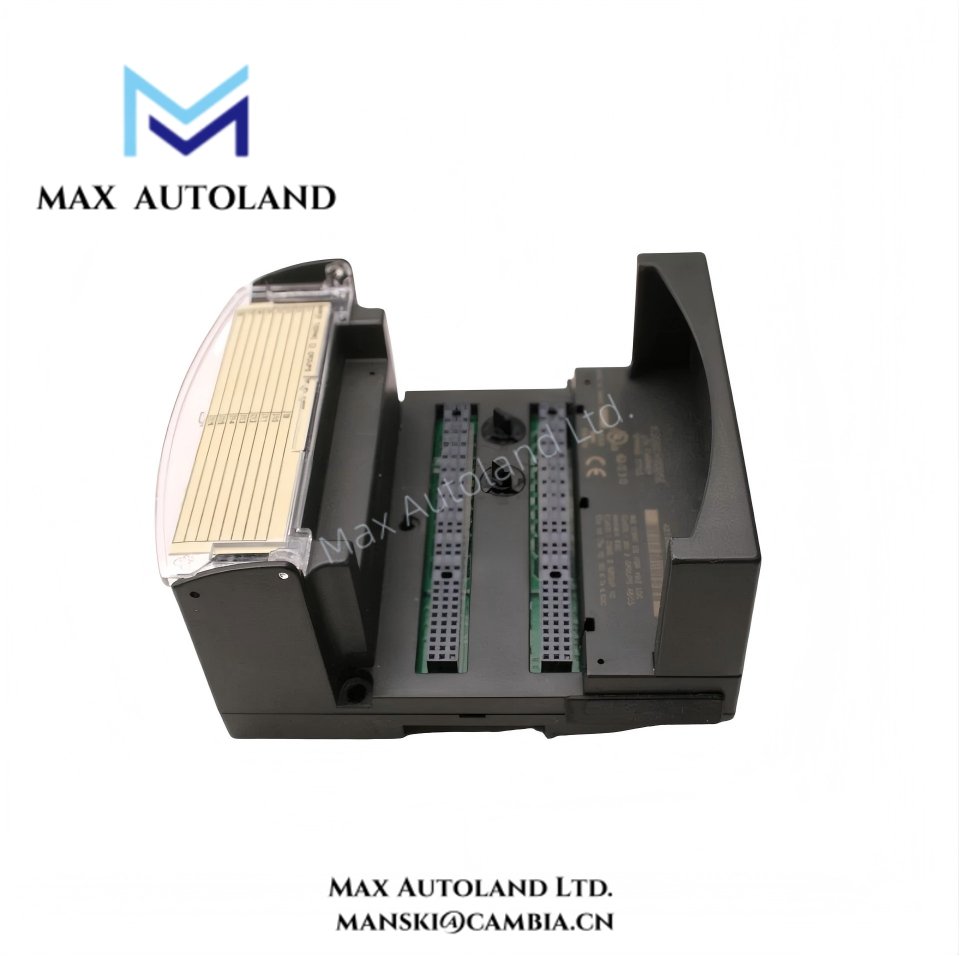

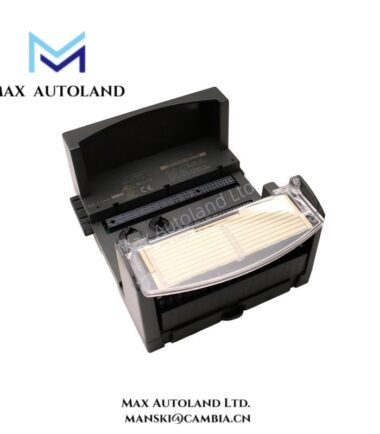

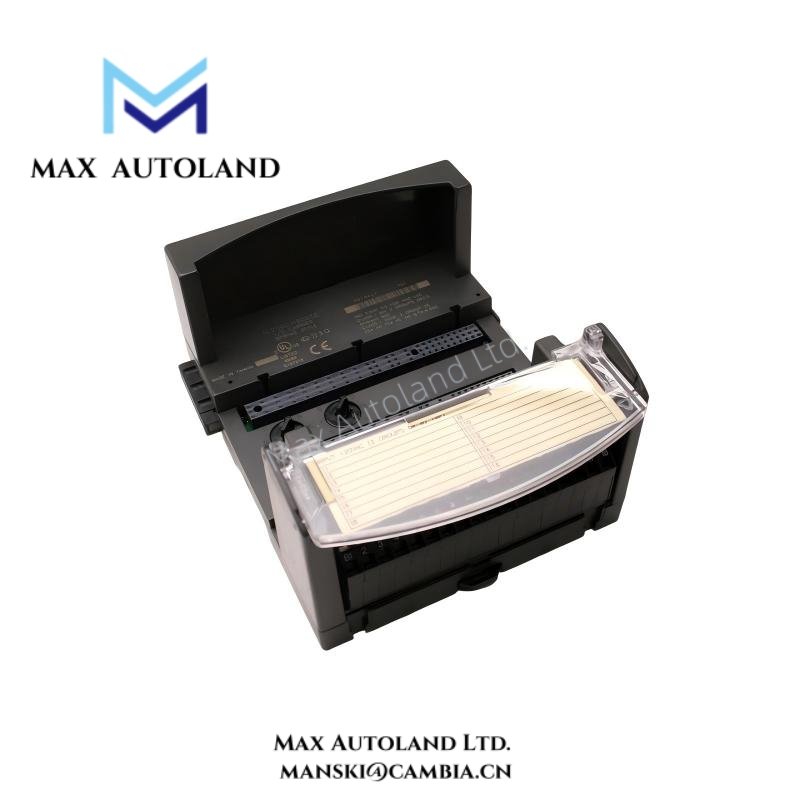

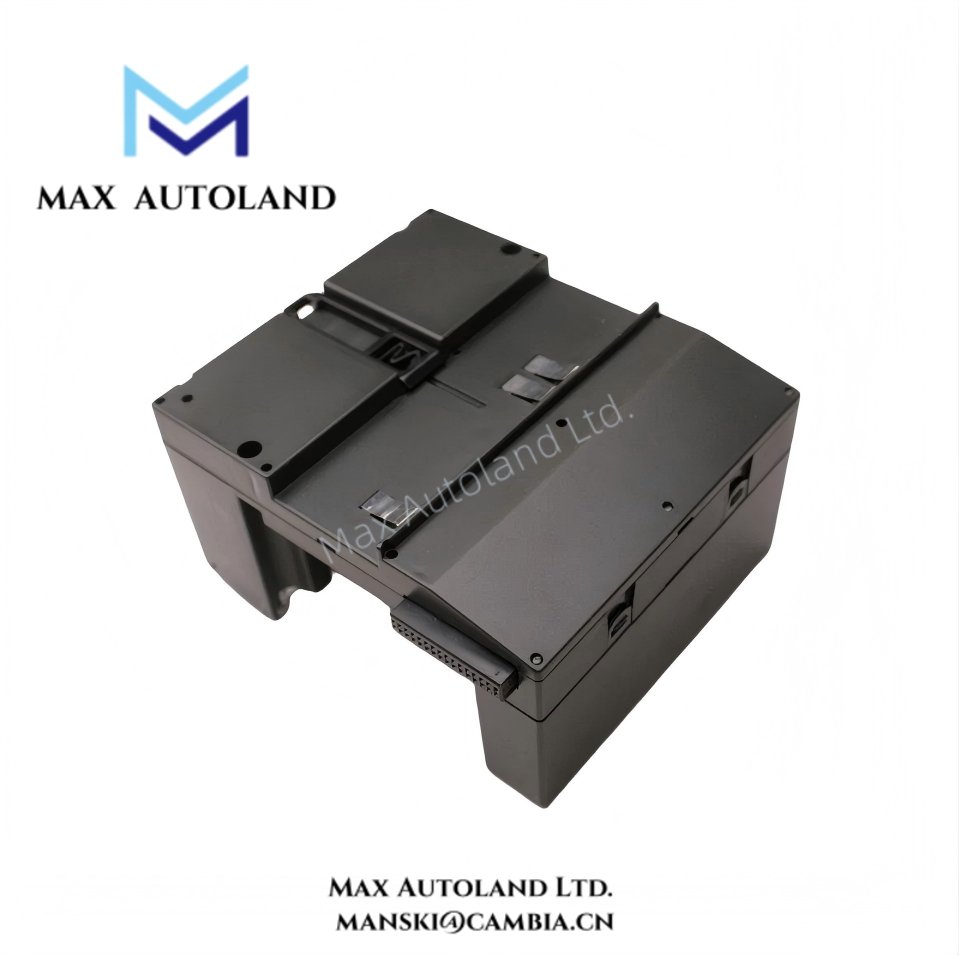

The IC200CHS005 is an I/O carrier module designed for use with the GE VersaMax system.
It provides a flexible and reliable platform for integrating various input/output modules into a modular control system.
Engineers use this module to expand I/O capacity in industrial applications, ensuring robust connectivity across systems.
The IC200CHS005 I/O carrier supports easy installation and configuration for both discrete and analog I/O modules.
Its rugged design and high-performance characteristics make it suitable for demanding automation environments.
By integrating this carrier module, users can achieve system scalability without compromising operational reliability.
Specification
| Parameter Category | Specification Detail |
|---|---|
| Manufacturer | General Electric |
| Product Model | IC200CHS005 |
| Product Type | VersaMax I/O Carrier Module |
| Compatible Series | VersaMax I/O System |
| Mounting Type | DIN rail mounting for easy installation |
| Maximum I/O Slots | 8 slots for I/O modules |
| I/O Types Supported | Digital inputs, digital outputs, analog inputs, analog outputs |
| I/O Module Compatibility | Supports VersaMax I/O modules and expansion units |
| Backplane Bus Speed | High-speed backplane connection for fast data transmission |
| Power Requirements | 5 VDC from the power supply module |
| Power Consumption | Approx. 3.5 W |
| Dimensions (Approx.) | 210 mm × 130 mm × 60 mm |
| Weight (Approx.) | 0.8 kg |
| Operating Temperature | –40°C to +70°C |
| Storage Temperature | –40°C to +85°C |
| Relative Humidity | 5–95% non-condensing |
| Communication Interface | Direct communication with the CPU module via the backplane |
| Environmental Protection | NEMA 1-rated enclosure for protection against dust and dirt |
| Compliance Standards | CE, UL listed for industrial applications |
FAQ
The IC200CHS005 supports up to 8 slots for I/O modules, accommodating both digital and analog inputs and outputs.
Q2: What types of I/O modules are compatible with the IC200CHS005?
It is compatible with various VersaMax I/O modules, including digital and analog inputs/outputs.
Q3: What is the power consumption of the IC200CHS005?
The module consumes approximately 3.5 W of power during normal operation.
Q4: Is the IC200CHS005 suitable for harsh industrial environments?
Yes, it operates within a wide temperature range from –40°C to +70°C and offers protection against dust and dirt with a NEMA 1-rated enclosure.
Q5: What shipping options do you offer for the IC200CHS005?
We offer fast shipping with DHL and other reliable global logistics providers, ensuring delivery within 3 days to 2 weeks.
