Overview
Engineers frequently select this module when industrial processes require reliable monitoring of temperature sensors across multiple control points.
Moreover, the module supports high-accuracy RTD signal acquisition, which helps maintain consistent thermal control in demanding production environments.
Its 16-bit analog resolution ensures detailed temperature measurement, improving monitoring precision across industrial heating, cooling, and process systems.

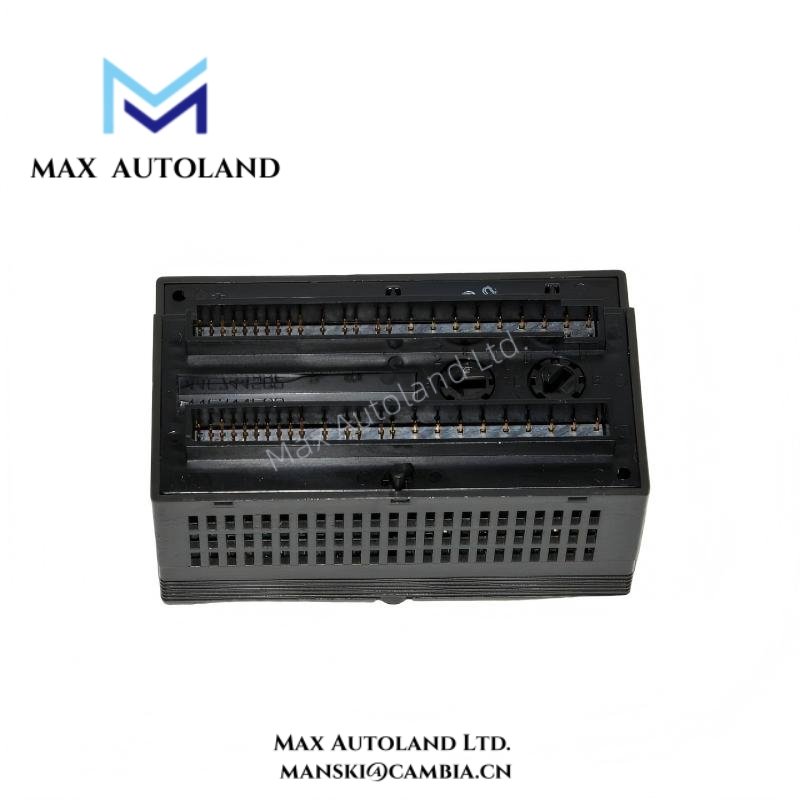

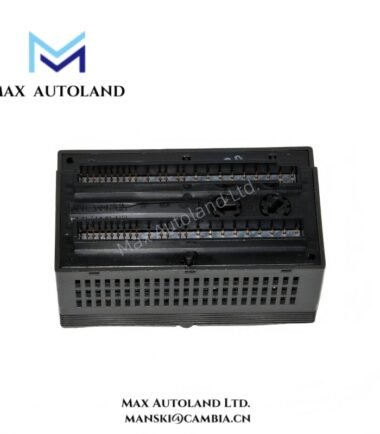

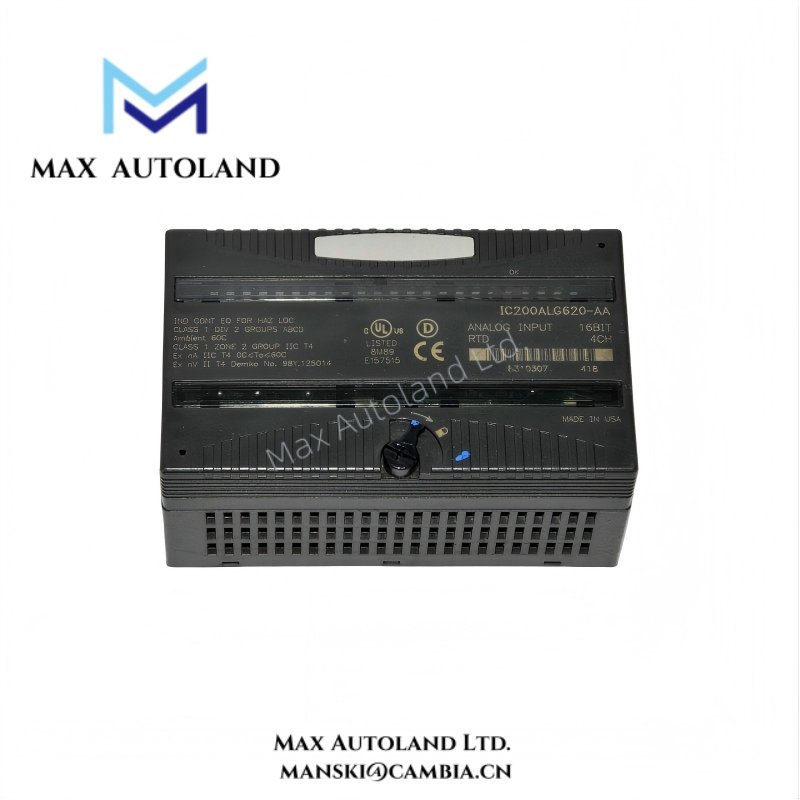

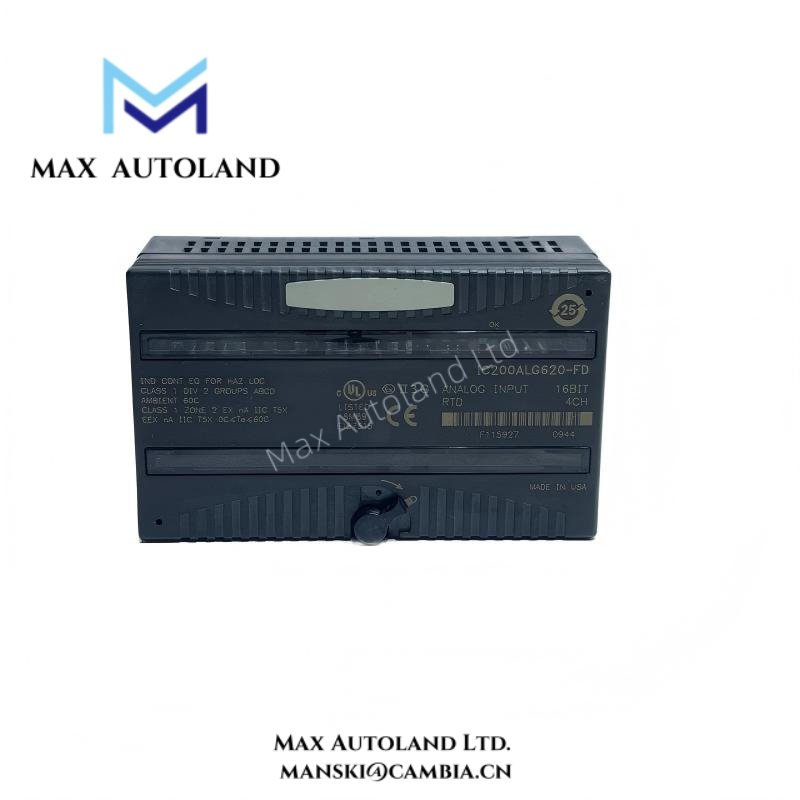

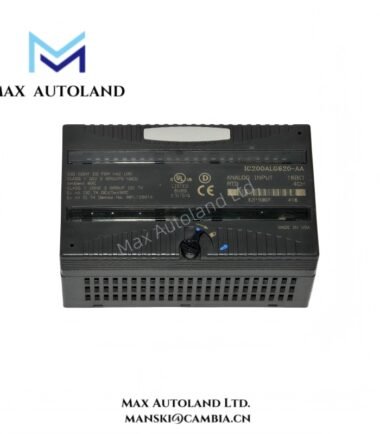

Therefore, many automation integrators install the IC200ALG620 module to enhance temperature monitoring reliability within PLC-based control architectures.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric |
| Model Number | IC200ALG620 |
| Product Type | RTD Analog Input Module |
| Series | VersaMax Distributed I/O |
| Input Channels | 4 RTD input channels |
| Input Sensor Types | RTD temperature sensors (for example Pt100 and similar industrial RTD types) |
| Resolution | 16-bit analog-to-digital conversion |
| Measurement Type | Temperature measurement using resistance temperature detectors |
| Input Configuration | Differential RTD measurement |
| Accuracy | High-precision industrial temperature measurement |
| Conversion Method | Integrated A/D conversion with digital signal processing |
| Diagnostic Indicators | LED indicators for module status and operation |
| Backplane Communication | VersaMax I/O high-speed backplane interface |
| Configuration | Configurable through VersaMax PLC programming software |
| Mounting Method | Installed on VersaMax I/O carrier or baseplate |
| System Compatibility | VersaMax PLC CPUs and distributed I/O networks |
| Power Supply | Powered through the VersaMax I/O backplane |
| Operating Temperature | Suitable for industrial control cabinet environments |
| Storage Temperature | Industrial storage temperature range supported |
| Environmental Conditions | Designed for factory automation and process control environments |
| Typical Applications | Temperature monitoring, process control, machine automation, energy systems |
FAQ
Q1: What sensors does the IC200ALG620 module support?
The module supports RTD temperature sensors, including commonly used industrial types such as Pt100 sensors.
Q2: How many RTD channels are available on this module?
The IC200ALG620 module provides four RTD input channels for multi-point temperature monitoring applications.
Q3: What resolution does the module provide for temperature measurement?
The module uses 16-bit analog-to-digital conversion to achieve high-accuracy temperature measurement.
Q4: Which automation systems support the IC200ALG620 module?
The module integrates with VersaMax PLC platforms developed by General Electric for distributed industrial control systems.
Q5: Where is this module typically used?
Engineers commonly install the module in manufacturing plants, energy facilities, and process automation environments requiring precise temperature monitoring.
