Overview

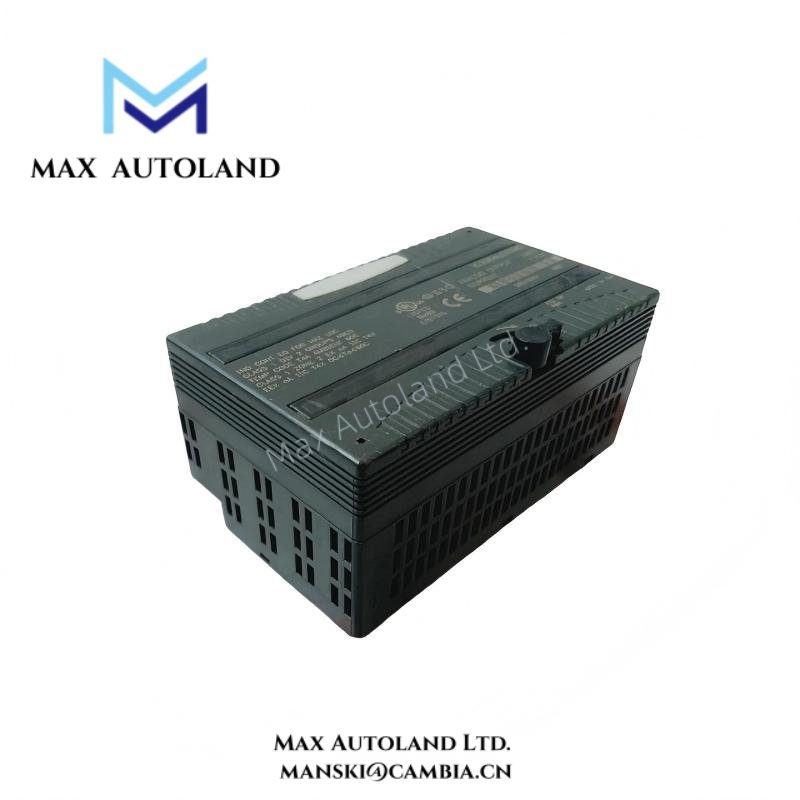

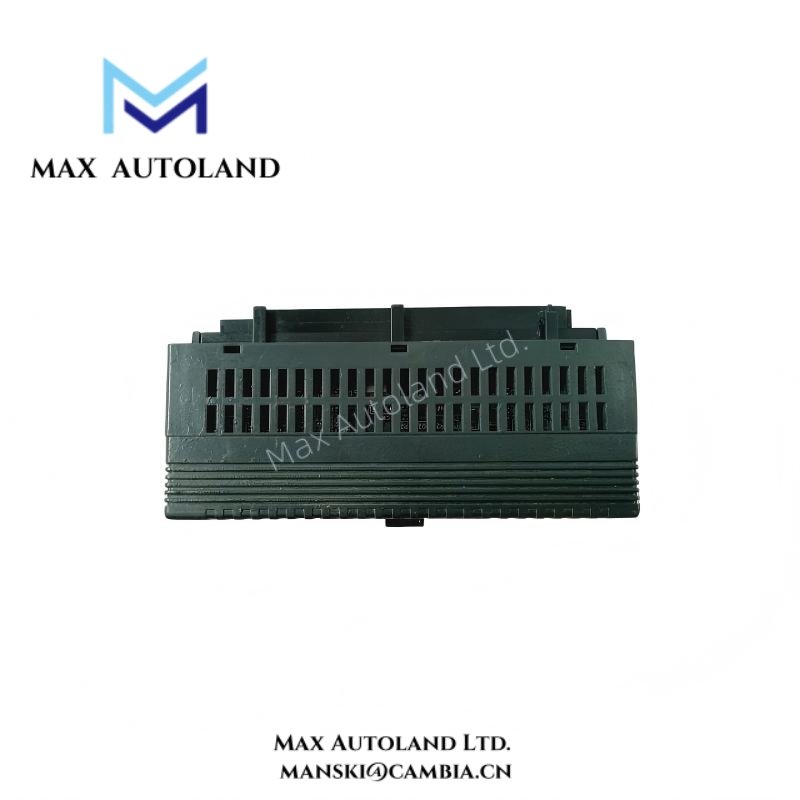

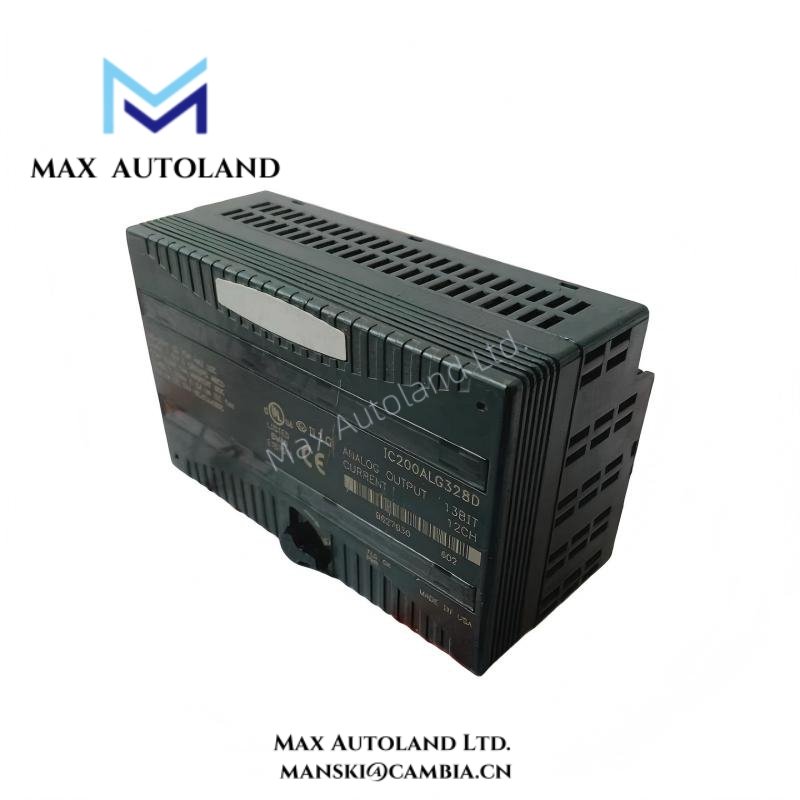

The IC200ALG328 module from GE Fanuc extends analog signal control inside the VersaMax distributed PLC I/O architecture.
Engineers deploy IC200ALG328 when industrial processes require stable and precise current-loop outputs for actuators, drives, or process equipment.
Moreover, IC200ALG328 delivers twelve independent current outputs designed for precise industrial control tasks.
Therefore, system integrators easily control valves, variable frequency drives, and analog instrumentation within modern automation systems.
In addition, the module operates with selectable 0–20 mA or 4–20 mA output ranges using a hardware configuration jumper.
Consequently, engineers integrate IC200ALG328 into process environments requiring standard industrial current-loop signaling.
Furthermore, the module supports high-resolution analog conversion and deterministic update timing suitable for real-time PLC applications.
For instance, process industries often require stable analog outputs for flow control loops and pressure regulation systems.
Specification
| Parameter | Detailed Specification |
|---|---|
| Product Model | IC200ALG328 |
| Manufacturer | GE Fanuc (Emerson Automation lineage) |
| Product Family | VersaMax Distributed I/O Platform |
| Module Category | Analog Output Module |
| Output Channel Count | 12 independent analog output channels |
| Output Signal Type | Current sourcing analog outputs |
| Standard Output Range | 4–20 mA |
| Optional Output Range | 0–20 mA selectable via configuration |
| Maximum Output Current | 20.38 mA per channel |
| Minimum Output Current | 0 mA |
| Output Resolution | 13-bit digital-to-analog conversion |
| Output Accuracy | ±0.15% of full scale typical |
| Linearity Error | ±0.05% of full scale typical |
| Update Time | Approximately 15 milliseconds maximum |
| Output Load Resistance | Up to 500 Ω recommended |
| Output Scaling | PLC analog register values mapped to %AQ memory |
| Backplane Power Requirement | 5 VDC from VersaMax backplane |
| Backplane Current Consumption | Approx. 50 mA |
| External Field Power Supply | 18–30 VDC |
| Typical Field Power Consumption | Approx. 100 mA |
| Maximum Field Current | Approx. 270 mA with all channels active |
| Channel Isolation | No isolation between individual channels |
| Module-to-Backplane Isolation | 250 VAC continuous |
| Dielectric Withstand | 1500 VAC for one minute |
| Crosstalk Rejection | Minimum 70 dB between channels |
| Diagnostic Indicators | OK LED (backplane power), FLD PWR LED (field power) |
| Output Protection | Internal electronic protection against wiring faults |
| Data Format | Binary or scaled integer values via PLC registers |
| Connector Type | Removable terminal block |
| Terminal Points | 24 field wiring terminals |
| Wire Size Range | 0.14–2.5 mm² (24–12 AWG) |
| Mounting Method | DIN rail mounting |
| Module Dimensions (H × W × D) | 110 mm × 66.8 mm × 50 mm |
| Approximate Weight | 0.3–0.5 kg |
| Operating Temperature | 0°C to 60°C industrial operating range |
| Storage Temperature | −40°C to 85°C |
| Relative Humidity | 5–95% non-condensing |
| Environmental Rating | Industrial control cabinet installation |
| Compliance Standards | CE, UL, and industrial EMC compliance typical |
| Compatible PLC Systems | VersaMax PLC and distributed I/O nodes |
| Typical Lifecycle | Designed for long-term industrial automation operation |
FAQ
Q1: What output signals does the IC200ALG328 support?
The IC200ALG328 provides twelve analog current outputs supporting 4–20 mA and 0–20 mA industrial current loops.
Q2: What power supply does the module require?
The IC200ALG328 requires an external field power supply between 18 and 30 VDC.
Q3: What is the analog resolution of the module?
The IC200ALG328 uses a 13-bit resolution converter to deliver precise output signal control.
