Overview

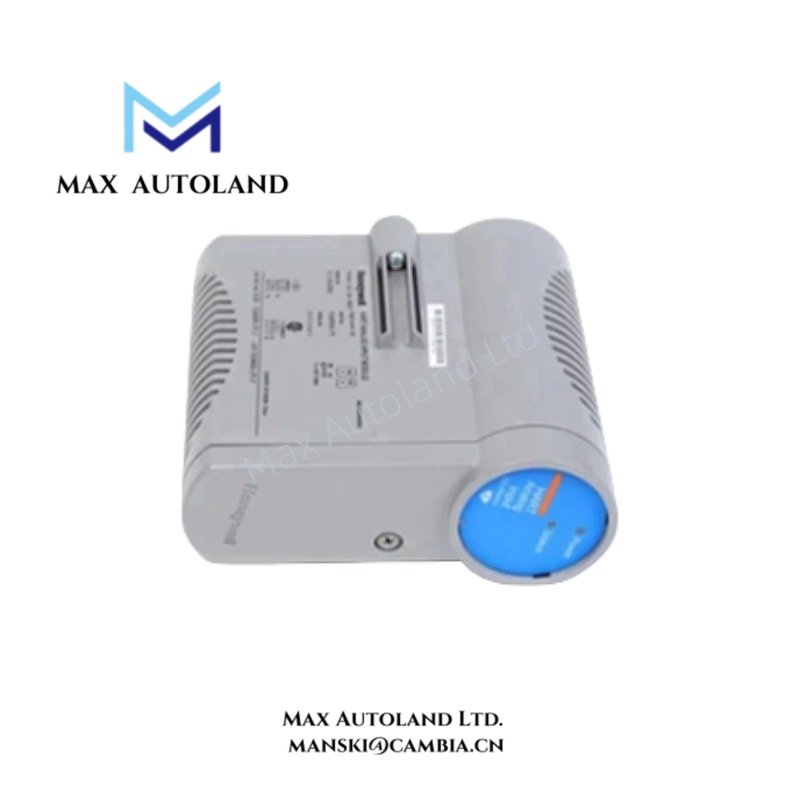

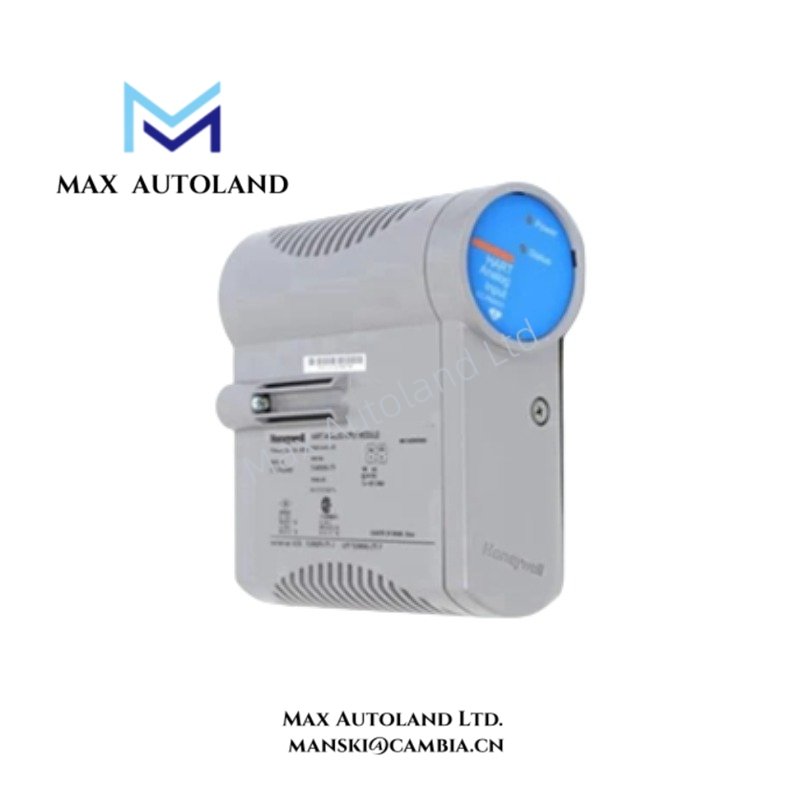

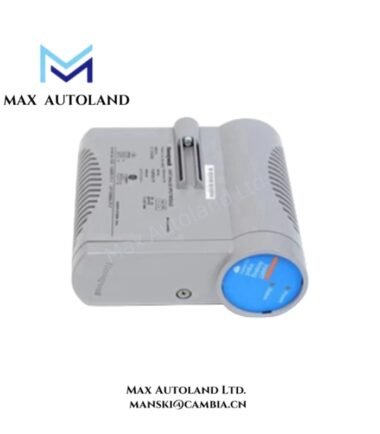

Configured for electrical power conditioning and distribution in Honeywell TDC 3000 and Experion PKS platforms, the Honeywell 51307106-175 (51307106-175 Power Conditioning Power Wiring Assembly) provides direct physical and electrical execution.
Suffix Breakdown & Model Matrix
The complete catalog number 51307106-175 designates a specific hardware build within the Honeywell distributed control system architecture. Because the base model 51307106 represents the foundational mechanical and electrical layout, the suffix -175 denotes specific manufacturing revisions, terminal configurations, and regional compliance tolerances tailored for rail-mounted Universal I/O (UIO) configurations.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51307106-175 |
| Brand | Honeywell |
| Origin | USA |
| Weight | Approximately 1 kg |
| Dimensions | Confirm against the physical unit |
| Operating Temp | Refer to the applicable Honeywell hardware documentation |
| Power Consumption | Determined by connected module load and loop distribution |
| System Compatibility | Honeywell TDC 3000 / Experion PKS |
| Assembly Type | Power Conditioning PWA |
| Installation | Rail-mounted UIO assembly |
| Power Function | Power conditioning and distribution |
| Protection | Reverse-polarity protection |
| Operating Voltage | 24 VDC (reported; verify against hardware label) |
| Current Rating | 5 A (reported; verify against hardware documentation) |
4-20 mA Loop Protocol and Signal Distribution
Operating within demanding DCS environments, the assembly manages internal power distribution while maintaining rigorous signal integrity. Furthermore, channel-to-channel isolation safeguards the surrounding architecture from transient voltage spikes and ground loops. Consequently, the power conditioning PWA ensures stable excitation voltages for connected loops, preventing data corruption across communication buses. Additionally, the internal circuitry actively suppresses electrical noise, thereby preserving the fidelity of connected analog and discrete control signals throughout the loop architecture.
Frequently Asked Questions
Q: Can the 51307106-175 assembly be hot-swapped while the primary power feed remains active?
A: No. Technicians must disconnect the primary power source before replacing or servicing the assembly to prevent arc flash events and protect downstream UIO modules.
Q: How does the reverse-polarity protection function during installation?
A: The integrated protection circuitry blocks current flow if input voltage leads are accidentally inverted, thereby shielding internal components from permanent electrical damage.
Field Installation Guidelines
- Verify the complete part number and hardware revision before initiating mechanical installation.
- Confirm structural compatibility with the existing rail-mounted Honeywell UIO assembly.
- Check the power supply rating and terminal assignments against the applicable system documentation.
- Disconnect all primary power supplies before replacing or servicing the assembly.
- Inspect the wiring harnesses and electrical connections thoroughly before commissioning the system loop.
