Overview

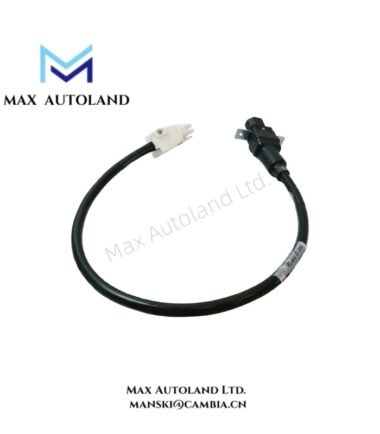

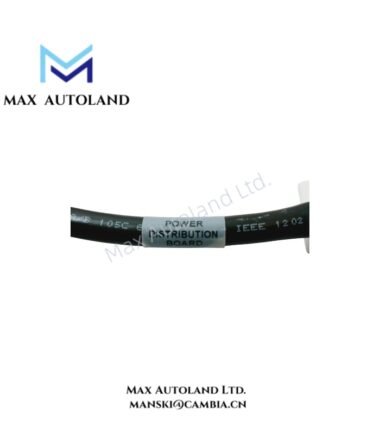

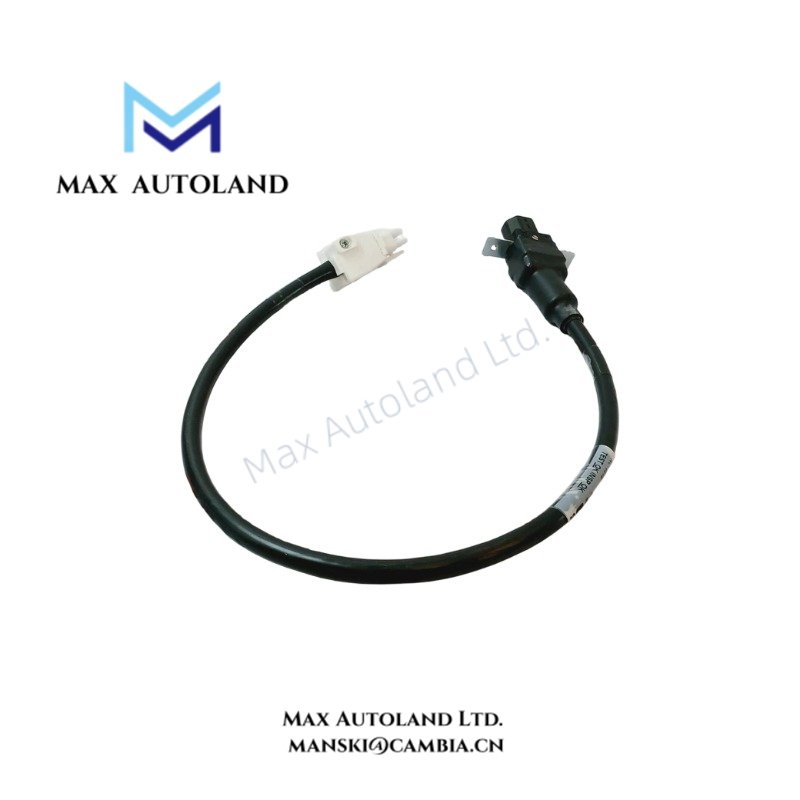

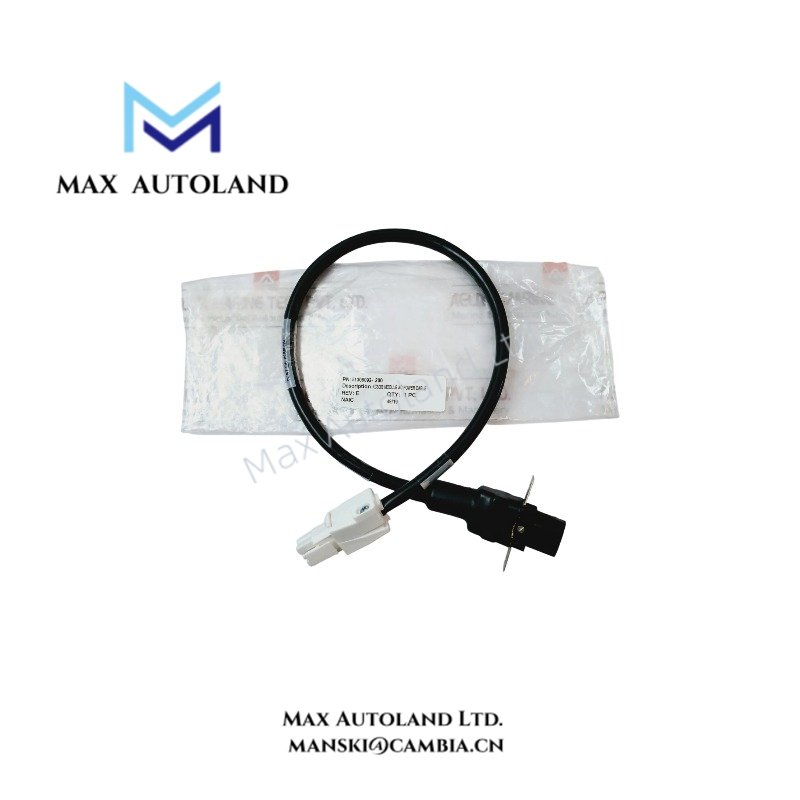

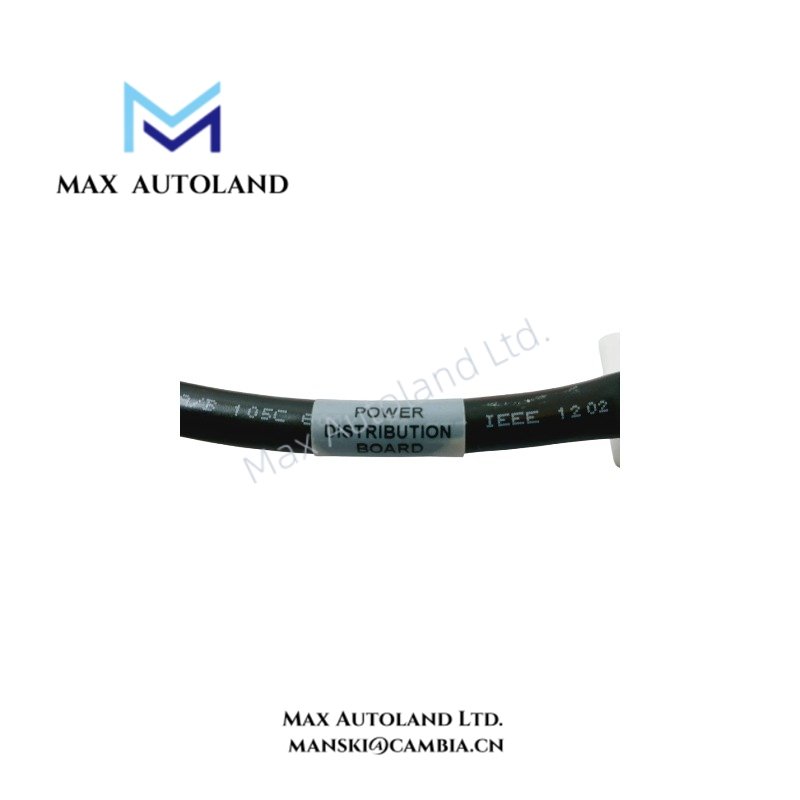

The Honeywell 51308092-200, also cataloged as the 51308092-200 AC Power Cable, operates as a dedicated hardware component for power connectivity and distribution within XC3000 and TDC 3000X control systems. Furthermore, this cable establishes direct electrical delivery to control chassis and power distribution boards by matching specific physical current and voltage thresholds across industrial network architectures.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51308092-200 |
| Brand | Honeywell |
| Origin | Standard Industrial Manufacturing |
| Weight | 0.136 kg (0.30 lbs / 200 g) |
| Dimensions | Standard industrial length and gauge profile |
| Operating Temp | -20 deg C to +60 deg C (typical industrial cabinet range) |
| Power Consumption | Passive distribution component (rated for up to 10 A) |
| Current Rating | 10 A |
| Voltage Rating | 250 V AC |
| Power Supply Compatibility | 120 V / 220 V AC |
Channel-to-Channel Isolation & DCS Loop Integrity
Engineered specifically for Honeywell process control environments, this cable maintains rigorous electrical separation properties to prevent ground loops and electromagnetic interference within power distribution pathways. By supporting standard 120 V AC and 220 V AC input distributions alongside channel-to-channel isolation safeguards, the assembly mitigates voltage spikes that could otherwise corrupt sensitive DCS loop signaling. Consequently, the cable secures stable operational states across distributed nodes without introducing harmonic distortion or thermal degradation into the primary chassis power plane.
Frequently Asked Questions
Q: What is the maximum continuous current load permitted through the 51308092-200 cable?
A: The cable is rated for a maximum continuous current of 10 A under standard operating temperatures.
Q: Can this power cable support both 120 V AC and 220 V AC power supplies?
A: Yes, it is fully compatible with both 120 V AC and 220 V AC power distribution systems within XC3000 and TDC 3000X architectures.
Q: Does this component require specific grounding procedures during installation?
A: Yes, proper shield grounding and physical strain relief must be applied to ensure electrical safety and prevent mechanical fatigue at the terminal connections.
Field Installation Guidelines
- Verify that the upstream power source is completely de-energized and locked out before initiating any physical handling or insertion of the power cable.
- Inspect the connector pins and housing for any debris, oxidation, or mechanical deformation prior to mating with the control chassis or power distribution board.
- Secure the cable along designated industrial cable trays using appropriate routing clips to minimize mechanical tension and eliminate sharp bending radii.
- Confirm that the operating voltage matches the 120 V AC / 220 V AC system requirements and that current loads do not exceed the 10 A threshold.
