Overview

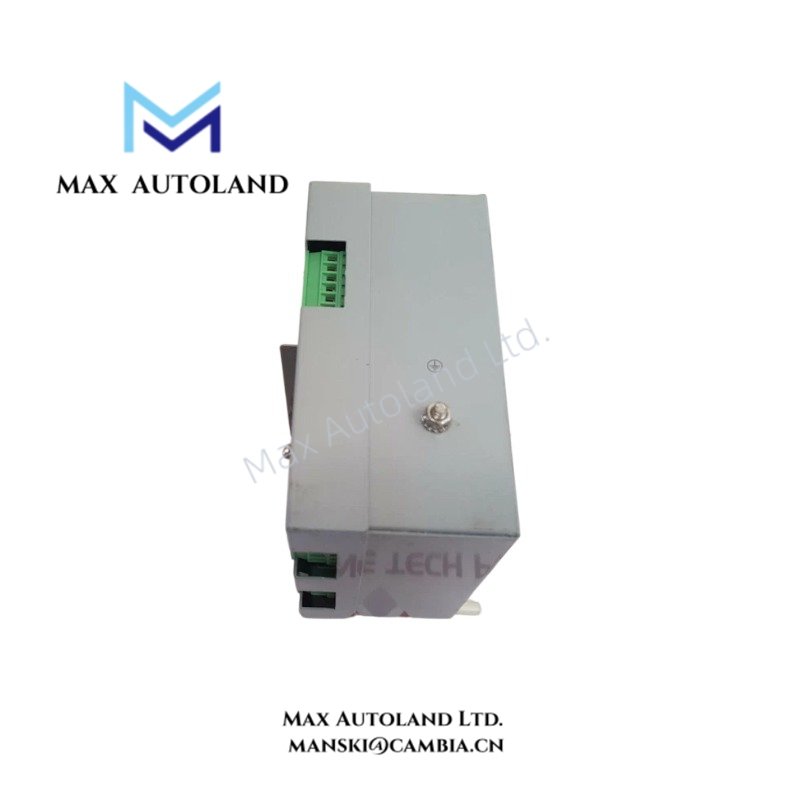

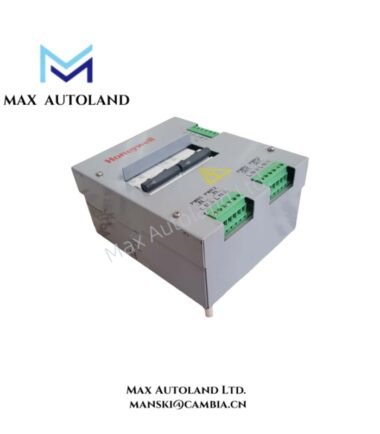

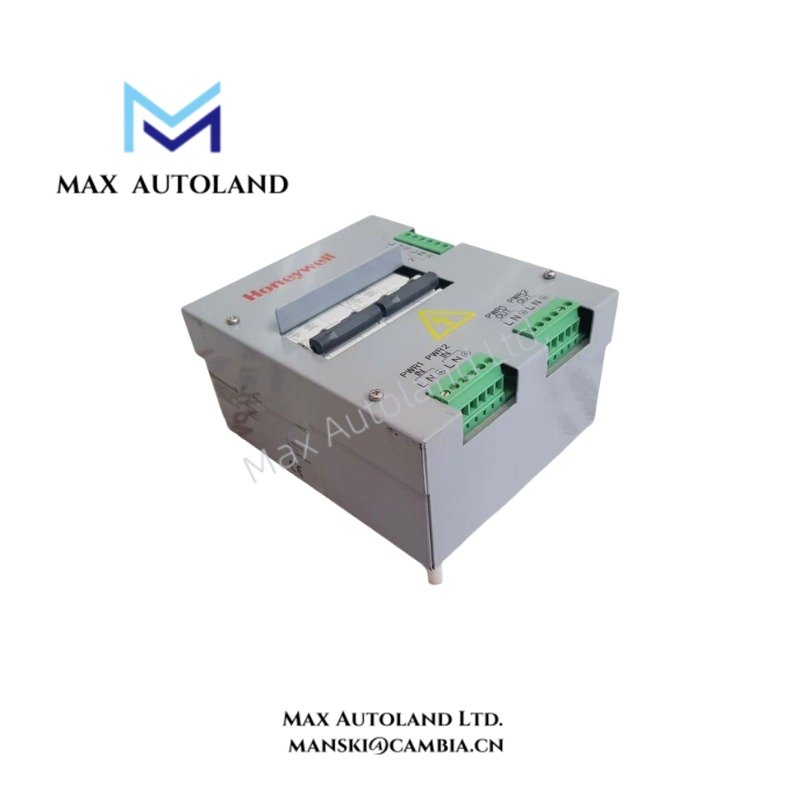

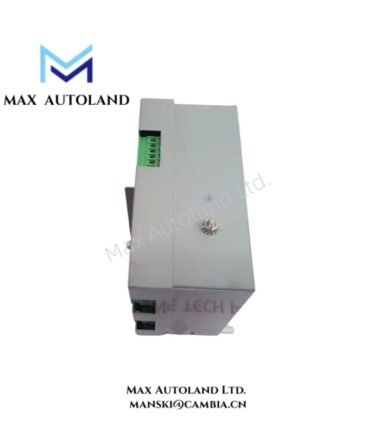

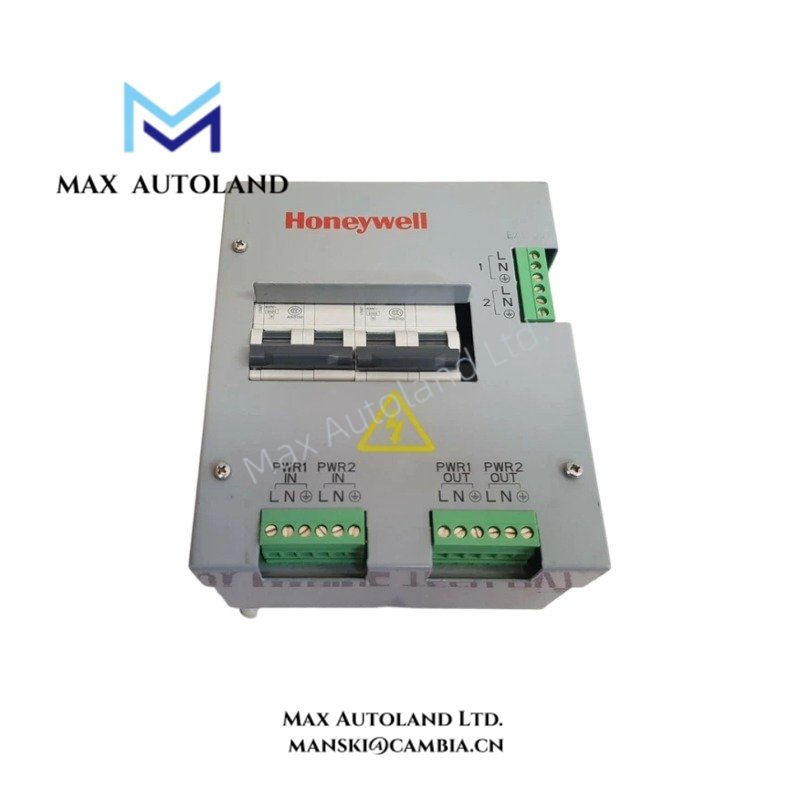

Configured for power distribution and circuit protection in industrial control systems, the Honeywell 51307039-100 (51307039-100 Circuit Breaker Box Assembly) provides direct physical power routing and electrical isolation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51307039-100 |
| Brand | Honeywell |
| Origin | USA |
| Weight | 0.14 kg |
| Dimensions | 22 x 12 x 5 cm |
| Operating Temp | -20 deg C to +60 deg C |
| Power Consumption | Passive Component |
| Power Input (VAC) | 100-120 / 220-240 (2 channels) |
| Power Output (VAC) | 100-120 / 220-240 (2 channels) |
| Capacity (A) | 10 |
| Power Extension | 2 channels |
Channel-to-Channel Isolation and Power Management
To maintain robust signal integrity and prevent ground loops across distributed control architecture, the assembly incorporates strict physical separation between input and output circuits. Specifically, the integrated dual-channel AC architecture ensures that each power path operates independently, thereby minimizing electrical noise propagation. Furthermore, the unit features channel-to-channel isolation barriers which protect downstream instrumentation from transient voltage spikes originating on incoming power lines. Consequently, operators can safely manage dual power inputs while routing protected outputs and power extensions to auxiliary control equipment without signal degradation.
Frequently Asked Questions
Q: What is the maximum current rating supported by each output channel of the circuit breaker box?
A: Each output channel supports a maximum current capacity of 10 A under standard operating conditions.
Q: Can the dual AC switches be utilized for simultaneous independent circuit interruption?
A: Yes, the two integrated switches are explicitly designed to control AC inputs on or off independently, allowing technicians to isolate specific power lines during maintenance procedures.
Q: Does this hardware require external firmware configuration or backplane communication?
A: No, the 51307039-100 operates as a passive and electromechanical circuit breaker assembly without active microprocessor control, backplane bus communication, or configurable firmware.
Field Installation Guidelines
When mounting the 51307039-100 circuit breaker box assembly within an industrial enclosure, technicians must adhere to standard physical and electrical clearance requirements. First, securely fasten the unit to a grounded mounting plate using appropriate hardware to ensure structural stability against mechanical vibration. Second, route incoming AC power lines and outgoing power extensions through dedicated cable ducts, maintaining physical separation from low-voltage instrumentation signal wiring to prevent electromagnetic interference. Finally, verify all terminal connections for proper torque settings prior to energizing the system, and confirm that total aggregate current draw does not exceed the specified 10 A capacity limits.
