Overview
The Honeywell 51202971-100, also cataloged as the 51202971-100 I/O Link Cable Assembly, operates as a dedicated hardware component for Series 8 I/O Link 1 interconnections within Honeywell Experion control systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51202971-100 |
| Brand | Honeywell |
| Origin | Verified manufacturer source |
| Weight | 0.2kg |
| Dimensions | 6-inch (152 mm) drop pitch |
| Operating Temp | Industrial cabinet rating |
| Power Consumption | Passive cabling component |
| Product Type | I/O Link Cable Assembly |
| Product Series | Series 8 |
| Cable Classification | I/O Link 1 (IOL1) |

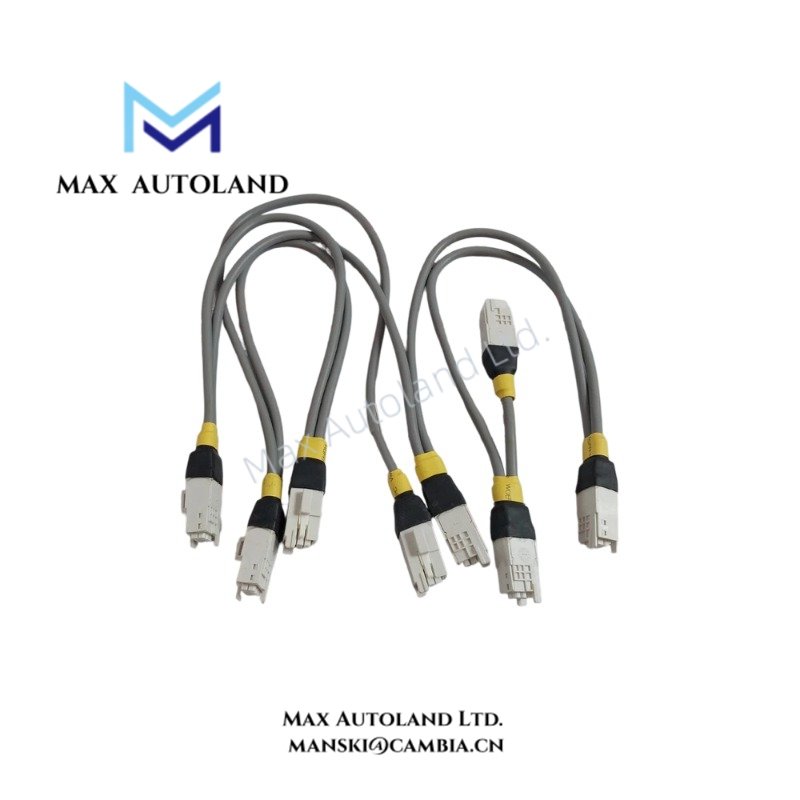

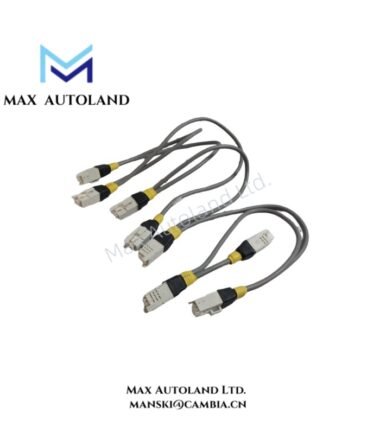

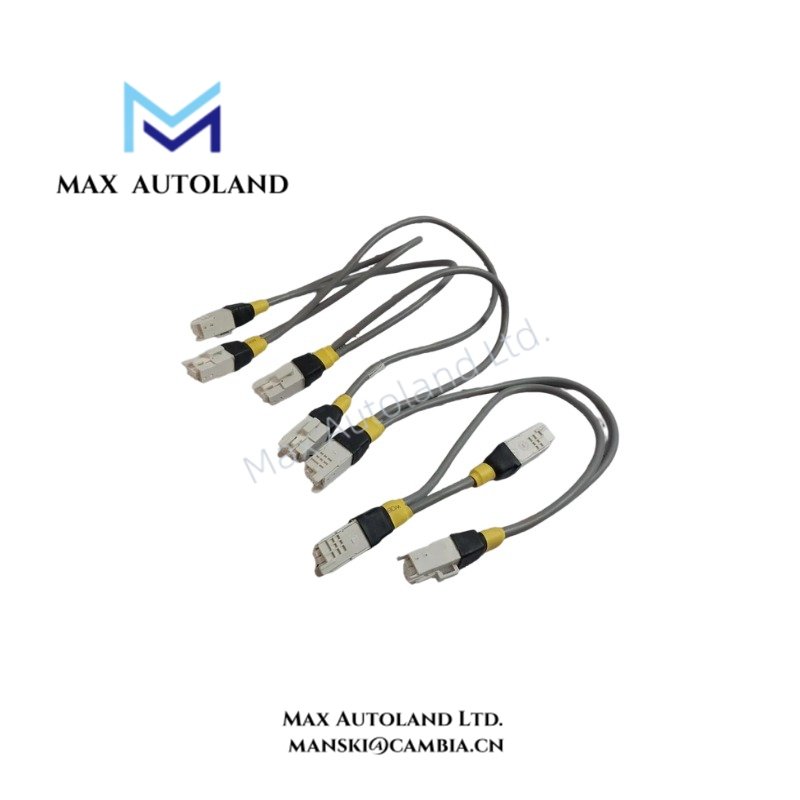

| Cable Type | Gray Drop Cable |
| Number of Drops | 6 |

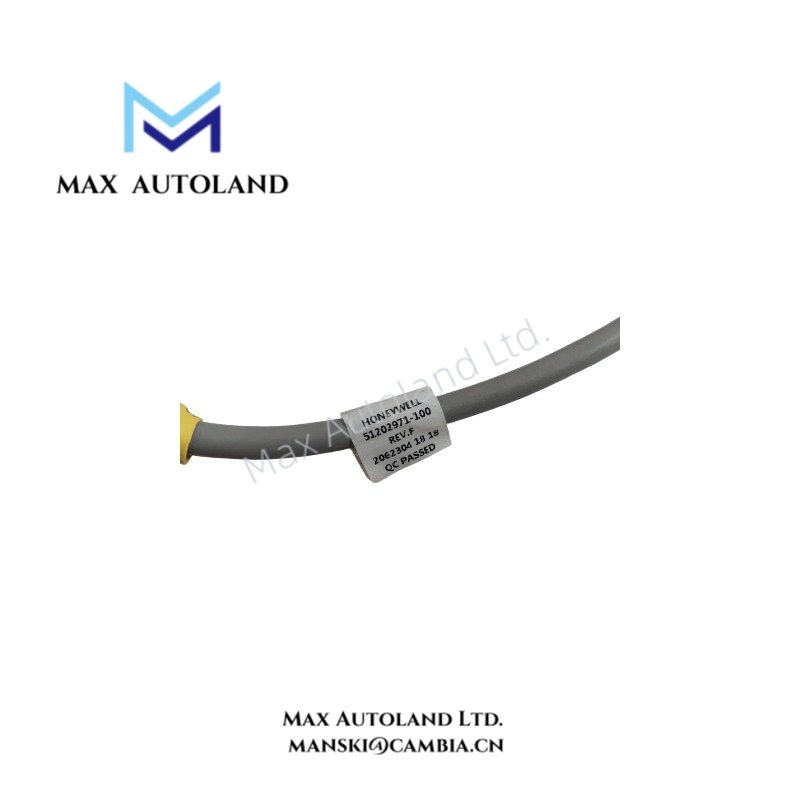

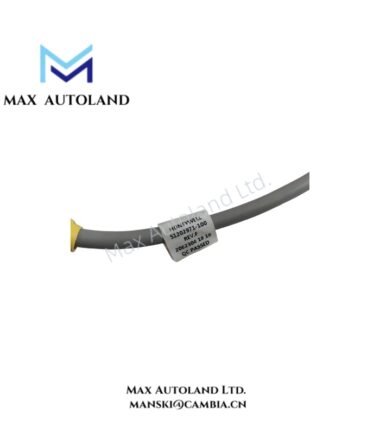

| Identification Label | Yellow (Cable A) |
| Compatible Platform | Honeywell Experion Series 8 |
Series 8 I/O Bus Channel-to-Channel Isolation and Loop Protocol
The Honeywell Series 8 I/O architecture establishes reliable physical communications through dedicated link cabling, ensuring robust signal integrity across distributed nodes. The gray drop cable layout incorporates standard 152 mm drop pitches to minimize electromagnetic interference and maintain precise termination distances between associated I/O termination assemblies (IOTAs). Furthermore, physical cable differentiation utilizing yellow identification markers (Cable A) prevents configuration errors during multi-channel redundant deployment phases.
Frequently Asked Questions
Q: Does the individual 51202971-100 assembly support redundant controller configurations on its own?
A: No. The 51202971-100 represents Cable A (yellow label) only. Full redundancy requires pairing it with Cable B (51202971-101) as defined in the 51202971-102 cable assembly kit.
Q: What is the specific drop pitch spacing utilized on this I/O Link 1 cable?
A: The cable features six connection drops arranged at a 6-inch (152 mm) pitch to match standard Series 8 cabinet dimensions.
Field Installation Guidelines
Route the gray drop cable carefully within industrial control cabinets to avoid sharp bends or excessive mechanical strain. Ensure that cable shielding and grounding adhere strictly to Honeywell Experion Series 8 installation standards. Verify that the yellow identification label correctly matches the designated Cable A port before finalizing module connections.
