Overview

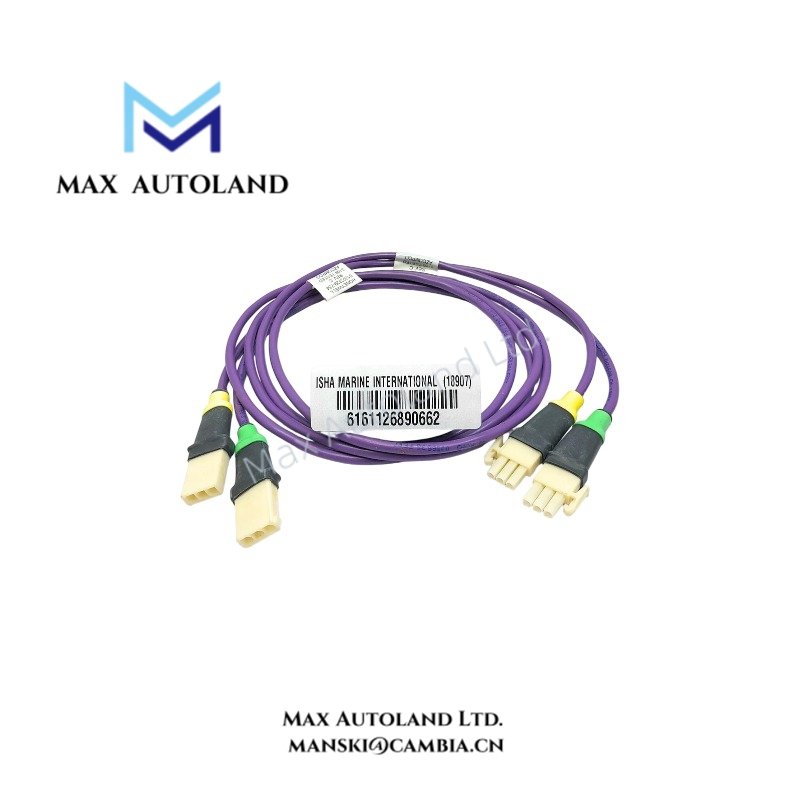

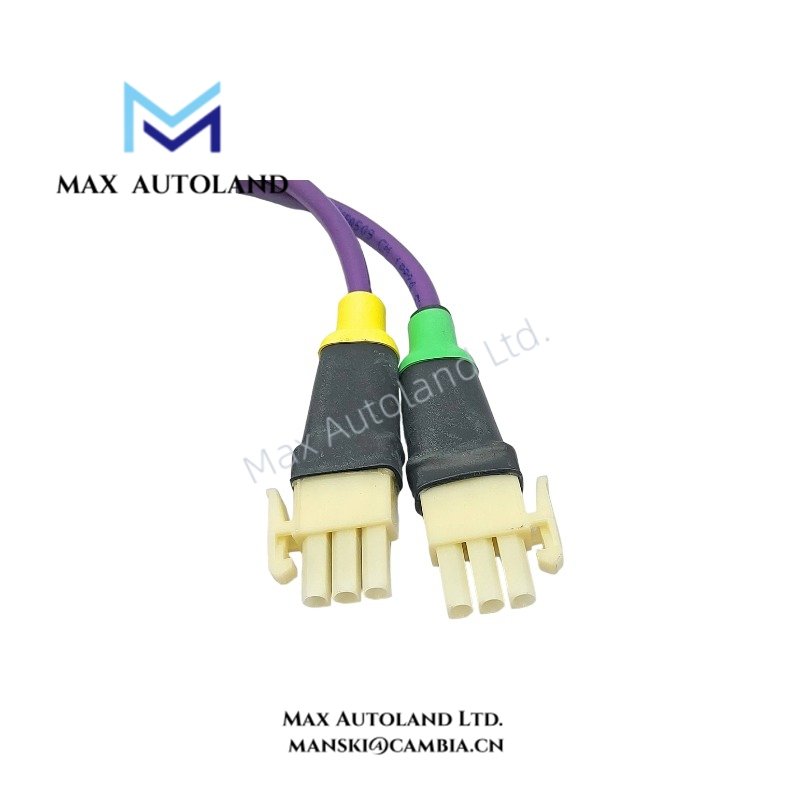

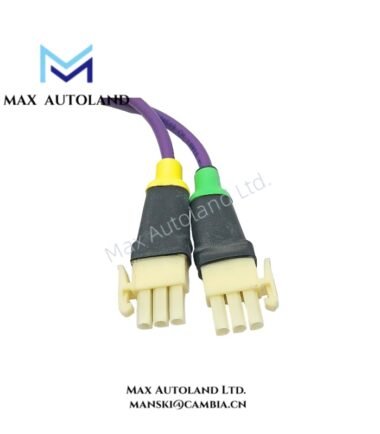

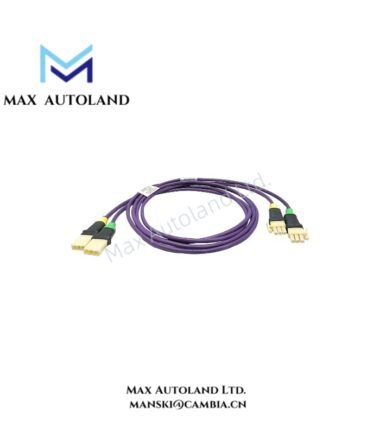

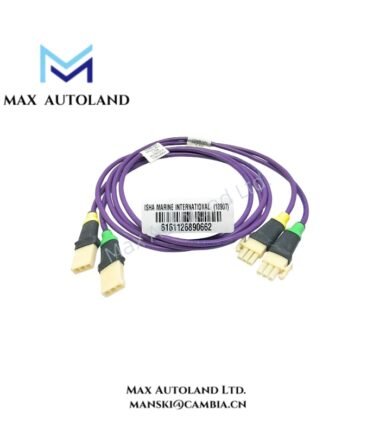

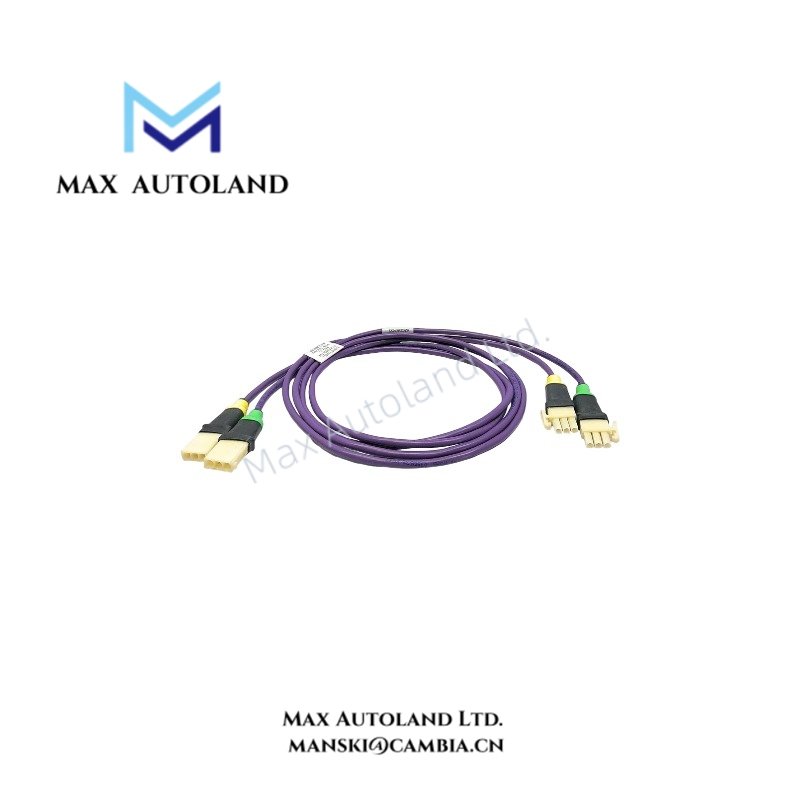

The Honeywell 51202329-615, also cataloged as the 51202329-615 Series C I/O Link Cable, provides physical communication connectivity between Honeywell Experion PKS controllers and Series C I/O components. The cable supports data transmission within the control system architecture, connecting C300 controllers with local or remote I/O interfaces.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51202329-615 |
| Brand | Honeywell |
| Product Type | Series C I/O Link Cable / Drop Cable |
| System Compatibility | Experion PKS Series C |
| Controller Compatibility | C300 |
| Connection Function | I/O Link Communication |
| Cable Construction | Shielded Industrial Communication Cable |
| Signal Transmission | Digital Data Communication |
| EMI Protection | Shielded cable construction |
Series C I/O Link Communication Characteristics
The 51202329-615 provides a physical communication path within the Honeywell Series C control architecture. It connects compatible control-system interfaces and supports data exchange between the controller and associated I/O components.
Furthermore, its shielded cable construction helps reduce electromagnetic interference coupling into the communication conductors. Proper cable routing and shield termination support signal integrity in electrically noisy control cabinets.
The cable serves as a communication interconnect rather than an active signal-processing module. Therefore, it does not independently perform analog-to-digital conversion, control logic execution, or field signal conditioning.
Frequently Asked Questions (FAQ)
Q: Can the Honeywell 51202329-615 operate as an independent communication interface?
A: No. The cable provides physical connectivity between compatible Honeywell system components. Communication depends on the connected controller, I/O interface, and system configuration.
Q: Does the 51202329-615 require an external power supply?
A: The supplied information identifies it as a passive I/O Link cable. No independent power supply requirement is specified.
Q: How should the cable shield be handled during installation?
A: Follow the Honeywell system installation documentation for shield termination and grounding. Separate communication wiring from high-voltage power conductors where practical to reduce electromagnetic interference.
Field Installation Guidelines
- Verify the complete part number, 51202329-615, against the system bill of materials and installation documentation.
- Confirm that the connected controller and I/O interfaces support the specified Series C I/O Link connection.
- Inspect the cable jacket, connectors, and contact surfaces for mechanical damage before installation.
- Route the communication cable separately from motor leads, switching power circuits, and other high-noise conductors.
- Maintain the cable’s specified bend radius and avoid excessive tensile loading or sharp bends.
- Terminate the cable shield according to Honeywell’s grounding and cabinet wiring requirements.
- Secure the cable to prevent vibration-induced movement and connector strain.
- After installation, verify connector engagement and inspect the controller’s communication diagnostics for link faults.
