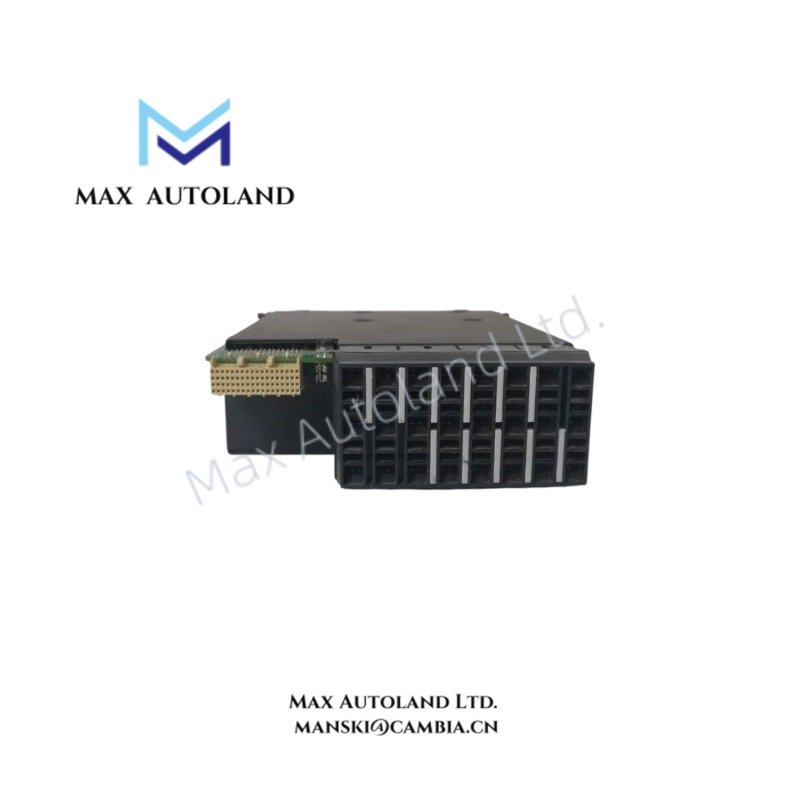

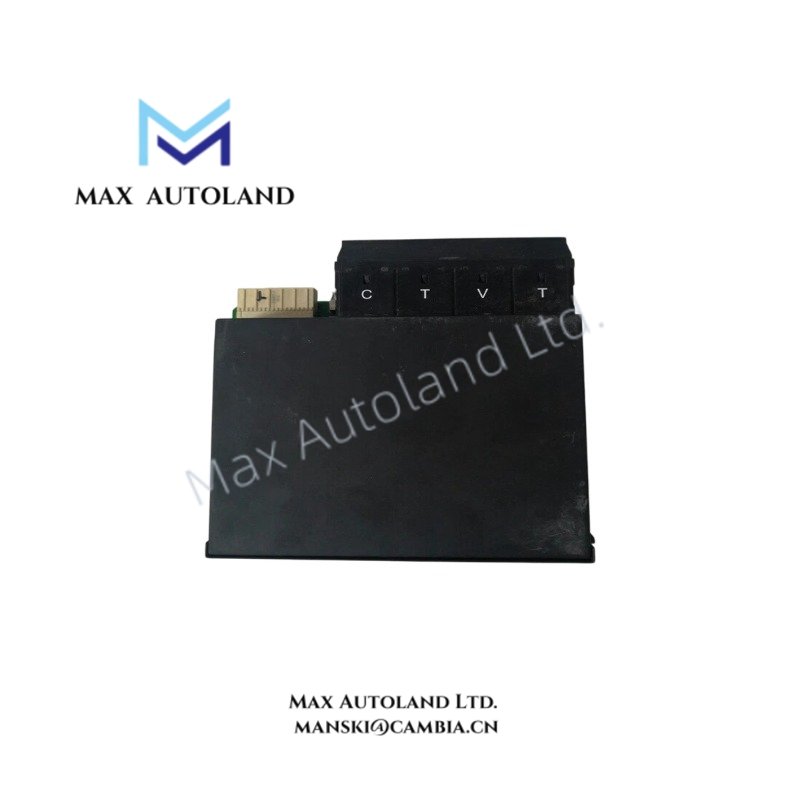

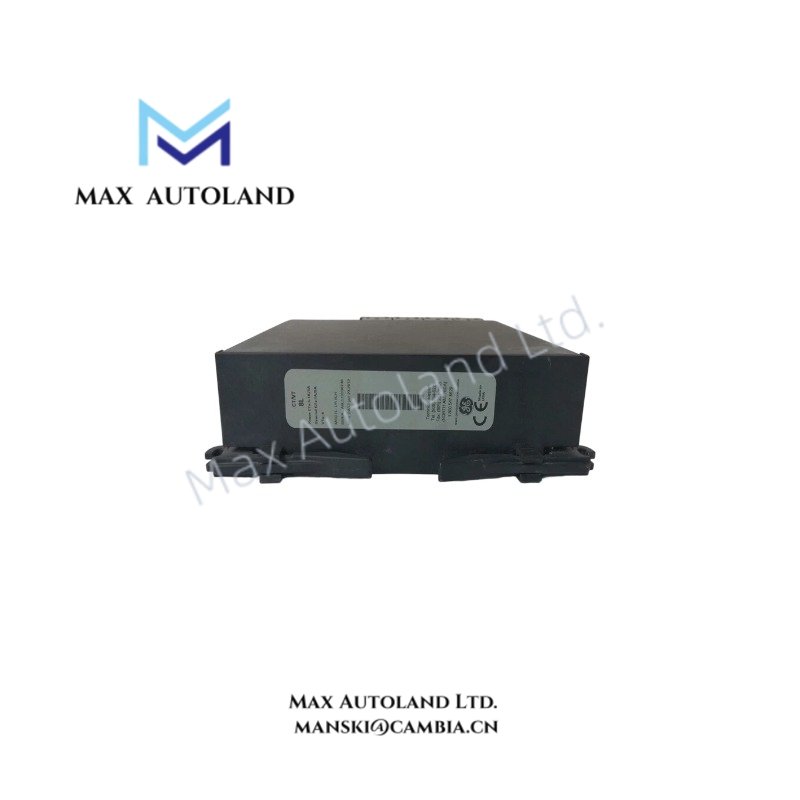

GE UR8LV Multilin CT/VT Module

Overview

Configured for current and voltage measurement in Multilin protection relay systems, the GE FANUC UR8LV (UR8LV CT/VT Module) provides direct physical/electrical execution of analog signal scaling and isolation within GE Multilin UR platform architectures.

Hardware Specifications

Industrial Control Backplane and Signal Integration Characteristics

The UR8LV module interfaces with GE Multilin UR-series backplane communication structures where deterministic data exchange is synchronized across protection and monitoring nodes. Backplane bus communication velocity governs CT/VT sampling propagation into relay logic layers, ensuring stable analog-to-digital conversion timing under high-density I/O configurations. Firmware flash compatibility constraints define module-level revision alignment within UR platform controllers, preventing mismatch conditions during system-level synchronization. IO density scaling behavior is dependent on chassis slot allocation and internal bus arbitration, affecting how multiple measurement modules share processing bandwidth in protection schemes.

Frequently Asked Questions

Q: Can the UR8LV be hot-swapped during relay operation?
A: The module does not support field hot-swap under energized CT/VT input conditions. Removal requires de-energized secondary circuits to prevent signal collapse or backfeed into measurement channels.

Q: What is the backplane load contribution of the UR8LV?
A: Backplane current draw is dependent on UR chassis implementation, but the module participates in shared bus loading where CT/VT sampling channels contribute to internal processing traffic rather than direct power consumption.

Q: Is firmware version alignment required between UR8LV and host relay CPU?
A: Yes. Firmware compatibility between the CT/VT module and UR-series main processor is required to maintain deterministic sampling and correct scaling tables.

Field Installation Guidelines

• Install module only on compatible GE Multilin UR-series DIN rail chassis slots.
• Verify CT and VT secondary circuits are fully de-energized before insertion or removal.
• Maintain shielded twisted pair routing for analog input conductors to minimize electromagnetic coupling.
• Ensure proper grounding of cable shields at a single-point earth reference.
• Avoid routing CT/VT wiring parallel to high-frequency switching conductors or drive output cables.
• Confirm mechanical locking of DIN rail latch to prevent vibration-induced disconnection in panel environments.
