Overview

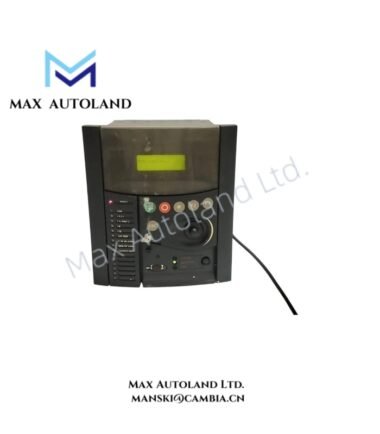

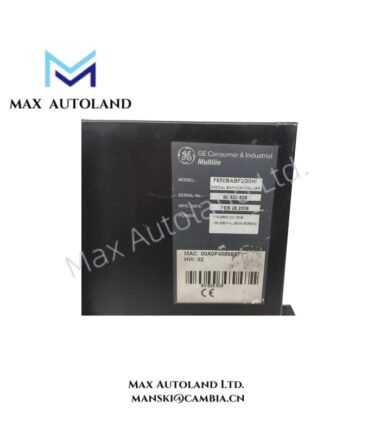

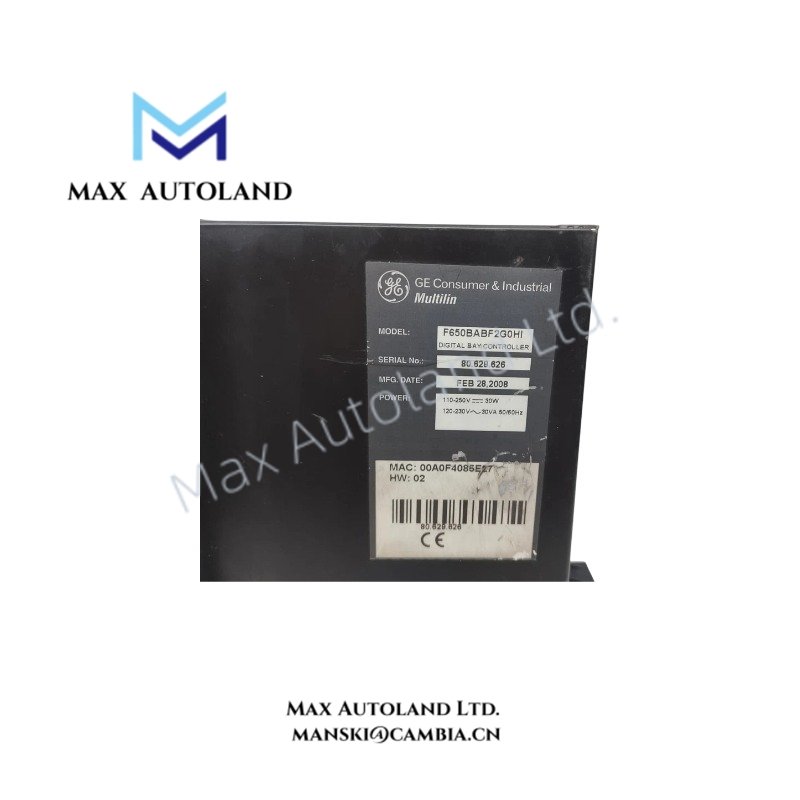

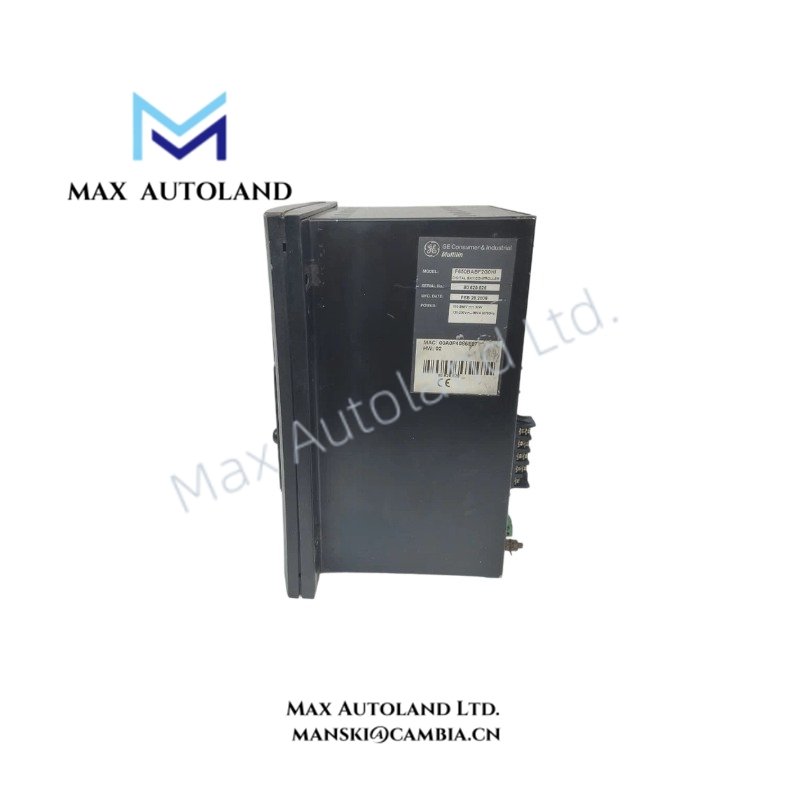

The GE Multilin F650GNFBF1G0HICE, also cataloged as the F650 Feeder Protection Relay, performs feeder protection, breaker control, and bay monitoring functions through digital measurement, programmable logic, and substation communication interfaces.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | F650GNFBF1G0HICE |
| Brand | GE Multilin |
| Origin | United States |
| Product Type | Feeder Protection Relay / Digital Bay Controller |
| Series | Multilin F650 Feeder Protection Relay |
| Application | Feeder protection, bay control, substation automation |
| Protection Functions | Phase, neutral, ground, sensitive ground overcurrent; directional protection; voltage and frequency protection |
| Control Functions | Breaker control, breaker failure protection, trip circuit supervision, automatic reclosing |
| Measurement Inputs | Current, voltage, frequency, power, power factor metering |
| Display Interface | Graphical LCD with programmable control keys and single-line diagram display |
| Event Recording | Time-tagged event records and fault analysis data |
| Oscillography | High-resolution waveform capture |
| Communication Protocols | IEC 61850, Modbus RTU, Modbus TCP/IP, DNP3.0, IEC 60870-5-103/104 |
| Ethernet Interface | 10/100 Base Ethernet communication |
| Time Synchronization | IRIG-B, SNTP, IEEE 1588 PTP |
| Power Supply | 24 VDC to 125 VDC or 110 VAC to 240 VAC options |
| Operating Temp | -40 deg C to +60 deg C |
| Weight | Approx. 5 kg |
| Configuration Software | EnerVista software suite |
| Mounting Type | Panel mounting with modular draw-out construction |
GE Multilin Industrial Communication and Control Features
The GE Multilin F650GNFBF1G0HICE integrates digital protection processing with substation automation communication. It exchanges protection status, measurement values, and control commands through IEC 61850 based networks and serial communication channels.
Furthermore, the relay supports deterministic industrial communication networks through Ethernet interfaces. The design enables integration with SCADA systems, RTUs, and station controllers while maintaining programmable logic execution for feeder automation schemes.
The F650 platform applies firmware-based configuration management to define protection elements, input/output mapping, and control logic. In addition, the relay supports Profinet / EtherNet-IP style deterministic network concepts used in industrial control environments through Ethernet communication infrastructure.
The relay provides programmable protection and control functions, including:
- Phase instantaneous and time overcurrent protection (ANSI 50/51)
- Neutral and ground overcurrent protection (ANSI 50N/51N, 50G/51G)
- Directional overcurrent protection (ANSI 67P, 67N)
- Voltage protection (ANSI 27/59)
- Negative sequence monitoring (ANSI 46/47)
- Thermal overload protection (ANSI 49)
- Breaker failure protection (ANSI 50BF)
- Automatic reclosing (ANSI 79)
- Frequency protection and rate of change of frequency (ANSI 81/81R)
- Synchronism check (ANSI 25)
Frequently Asked Questions
Q: Does the F650GNFBF1G0HICE support IEC 61850 communication?
A: Yes. The relay supports IEC 61850 communication for integration with substation automation systems, including monitoring, control, and protection data exchange.
Q: What type of protection measurements does the F650 relay process?
A: The relay processes current, voltage, frequency, power, and power factor measurements for feeder protection and control functions.
Q: Does the relay provide local operation functions?

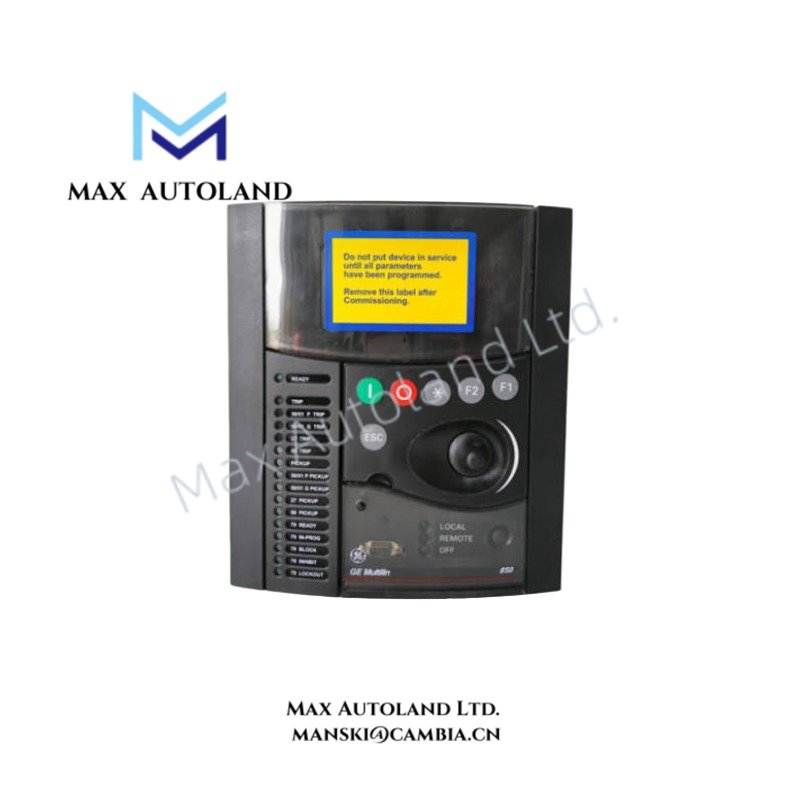

A: Yes. The F650GNFBF1G0HICE includes a graphical LCD interface, programmable control keys, and configurable single-line diagram functions for local bay operation.
Field Installation Guidelines
- Install the relay inside a suitable protection panel with controlled environmental conditions.
- Verify auxiliary power supply compatibility before energizing the unit.
- Connect current transformer and voltage transformer circuits according to the approved protection wiring drawings.
- Separate communication cables from high-voltage power conductors to reduce electromagnetic interference.
- Apply shield grounding practices according to substation wiring standards.
- Configure communication parameters, protection settings, and input/output assignments using the approved configuration software.
- Perform insulation checks, wiring verification, and functional protection tests before commissioning.
- Confirm time synchronization settings when integrating the relay into IEC 61850 or SCADA networks.
