Overview

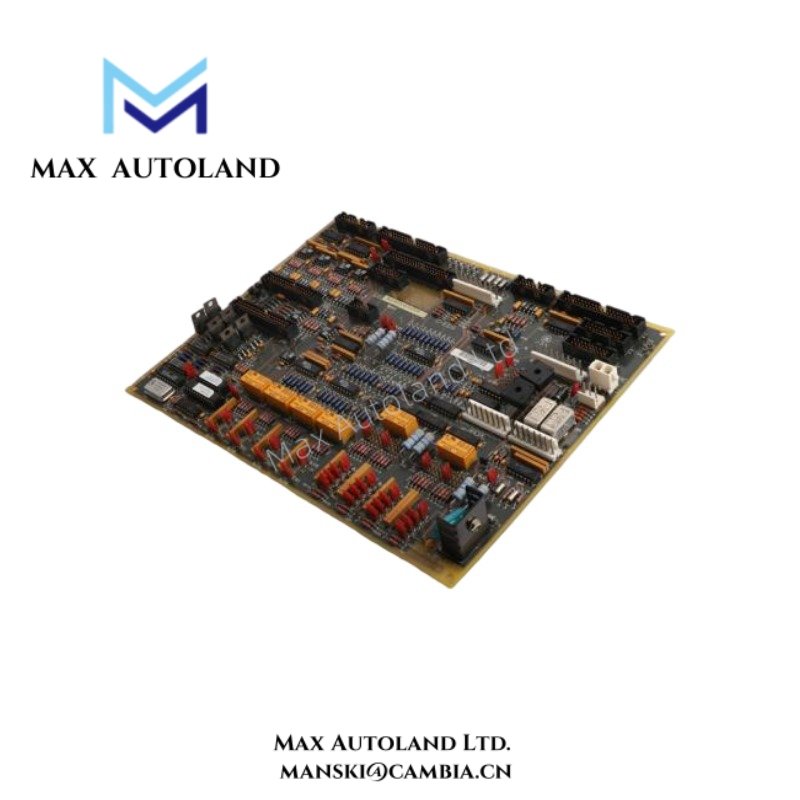

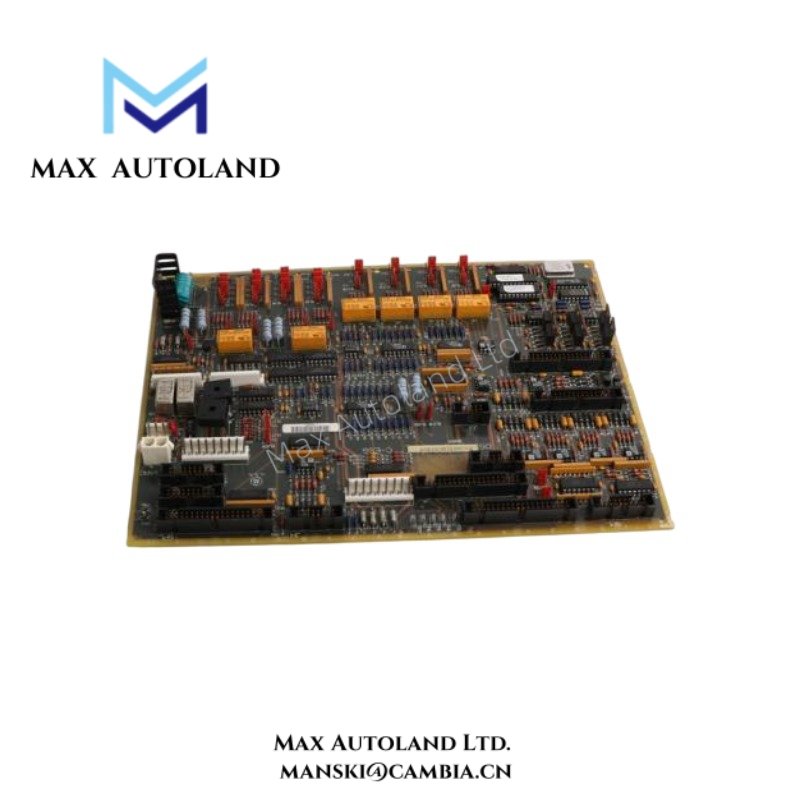

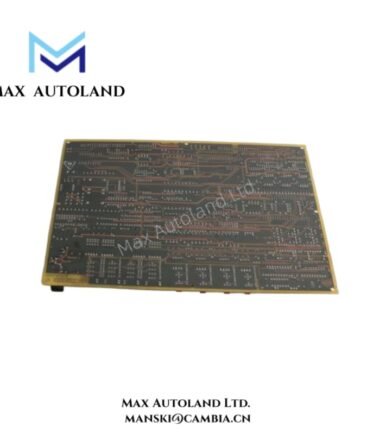

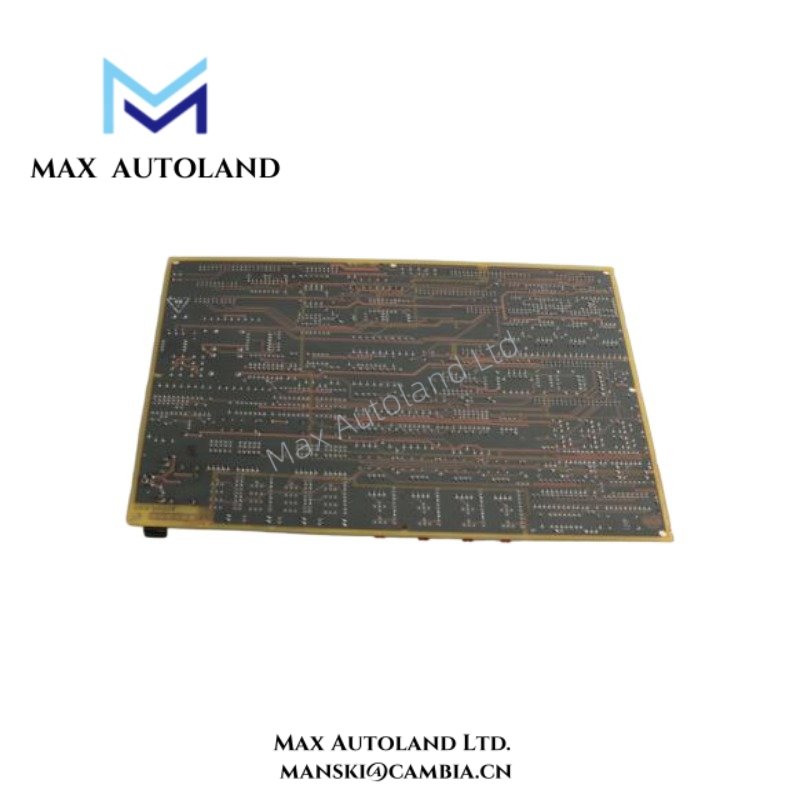

GE DS200TCQCG1BJF Analog I/O Expander Board belongs to the trusted Mark V turbine control platform. This module supports reliable analog signal expansion for demanding industrial automation and turbine management applications. Engineers frequently install this board in gas turbine, steam turbine, and balance-of-plant control environments requiring stable signal processing performance.
The DS200TCQCG1BJF board improves communication between analog field devices and the Mark V control architecture. Moreover, the module provides dependable signal handling for monitoring, regulation, and protection functions across complex industrial systems. Its rugged construction supports long operational life under continuous industrial operating conditions.
This GE analog I/O expander board integrates efficiently with existing Mark V hardware assemblies and cabinet configurations. Therefore, maintenance teams can reduce installation complexity and minimize unexpected downtime during replacement procedures. The board also supports accurate analog data transmission for critical process control operations.
Many industrial operators select the DS200TCQCG1BJF board because of its proven reliability in high-availability turbine applications. In addition, the module supports long-term system stability within power generation, petrochemical, and heavy manufacturing facilities. The compact board design simplifies cabinet integration while maintaining dependable electrical performance.
Functional Highlights
- Supports analog input and output signal expansion within GE Mark V turbine control systems
- Designed for continuous-duty industrial environments requiring dependable long-term operation
- Improves communication accuracy between field instrumentation and control processors
- Compatible with multiple GE turbine control cabinet configurations
- Simplifies maintenance and replacement activities during scheduled outages
- Provides stable signal conditioning for turbine monitoring and regulation functions
- Manufactured using industrial-grade electronic components for enhanced operational reliability
- Suitable for retrofit projects and legacy control system maintenance programs
Specification
| Parameter | Description |
|---|---|
| Manufacturer | General Electric (GE) |
| Product Model | DS200TCQCG1BJF |
| Product Type | Analog I/O Expander Board |
| Functional Acronym | TCQC |
| Series | Mark V Speedtronic Turbine Control System |
| Main Function | Analog signal expansion and overflow management |
| Application | Turbine control and industrial automation systems |
| Compatible Systems | GE Mark V control platforms |
| Installation Method | Rack-mounted control cabinet installation |
| Board Coating | Standard protective coating |
| Operating Mode | Continuous industrial-duty operation |
| Signal Type | Analog input and output processing |
| Signal Functions | Signal conditioning, buffering, and communication support |
| System Role | Analog interface expansion and processor communication |
| Connector Type | Multi-pin industrial connectors |
| 40-Pin Connectors | JFF, JE, 6PL |
| 34-Pin Connectors | JFF, 1PL, JA |
| 16-Pin Connector | JC |
| Jumper Quantity | 24 configurable jumpers |
| Relay Configuration | Maintenance-free onboard relays |
| Cable Interface | Ribbon cable communication |
| PCB Construction | Industrial-grade multilayer printed circuit board |
| Communication Capability | Stable analog data transmission |
| EMC Protection | Recommended 90-degree cable crossing design |
| Supported Functions | Analog monitoring, turbine regulation, LVDT support |
| Redundancy Support | Single, dual, and triple modular redundancy systems |
| Typical Cabinet Position | Mark V core control section |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Cooling Method | Passive cabinet ventilation |
| Approximate Dimensions | 100 mm × 80 mm × 20 mm |
| Approximate Weight | 0.35 kg to 0.8 kg |
| Environmental Suitability | Power plants, petrochemical facilities, heavy industry |
| Integration Capability | Interfaces with Mark V termination boards |
| Maintenance Requirements | Periodic connector inspection recommended |
| Installation Recommendation | Use ESD protection during handling and installation |
| Typical Applications | Gas turbines, steam turbines, compressor control, DCS systems |
| Reliability Features | Industrial-grade components for long operational life |
| System Benefits | Improved analog communication accuracy and stable process control |
FAQ
Q1: What is the main purpose of the GE DS200TCQCG1BJF board?
A1: The DS200TCQCG1BJF board expands analog input and output capabilities within GE Mark V turbine control systems.
Q2: Which control platform supports the DS200TCQCG1BJF module?
A2: This module is designed specifically for GE Mark V turbine control platform applications.
Q3: Where is the DS200TCQCG1BJF commonly used?
A3: Power generation plants, petrochemical facilities, and heavy industrial automation systems commonly use this board.
Q4: Does the board support long-term industrial operation?
A4: Yes, the module uses industrial-grade electronic components for stable continuous-duty performance.
Q5: Can the DS200TCQCG1BJF help during system maintenance projects?
A5: Yes, maintenance teams frequently install this board during Mark V repair, retrofit, and modernization projects.
Q6: Why do industrial operators choose the DS200TCQCG1BJF module?
A6: Operators value the module because of its reliable analog signal handling and proven field performance.
