Overview

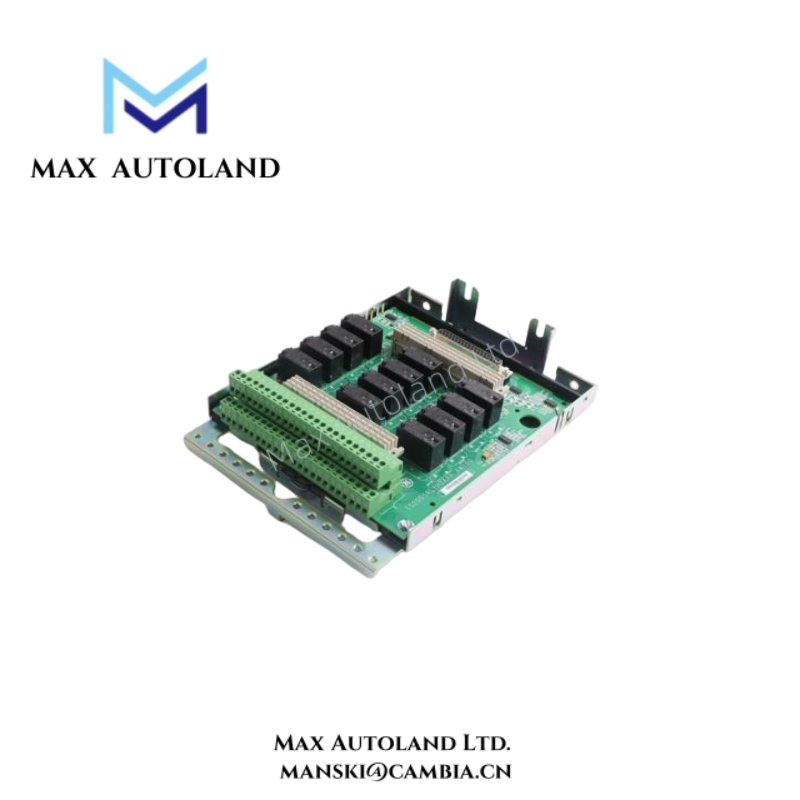

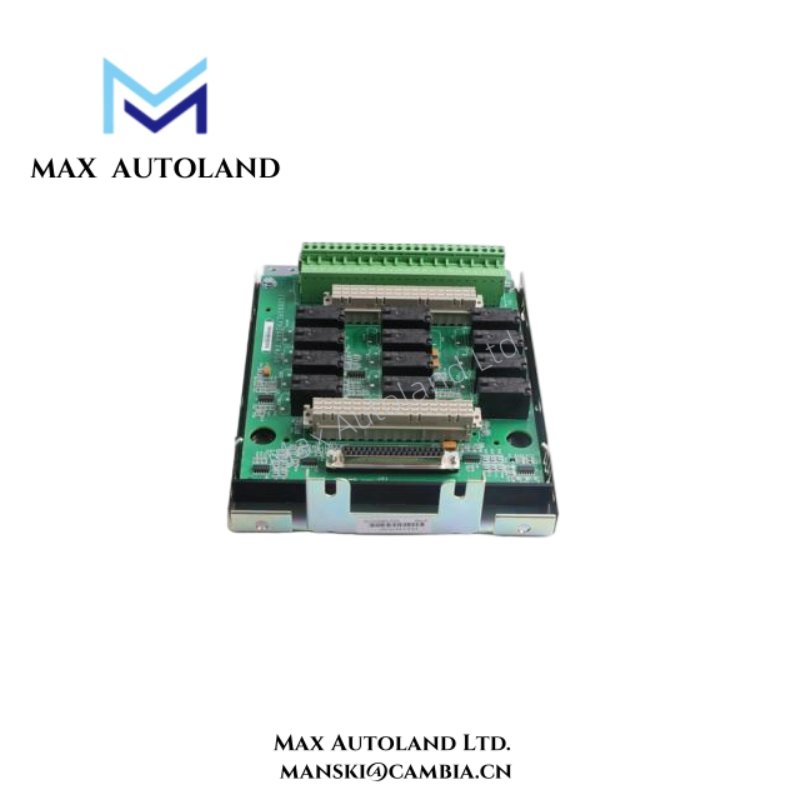

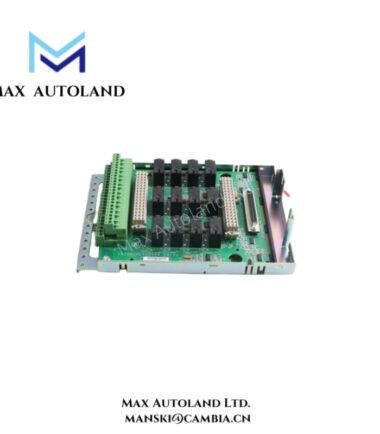

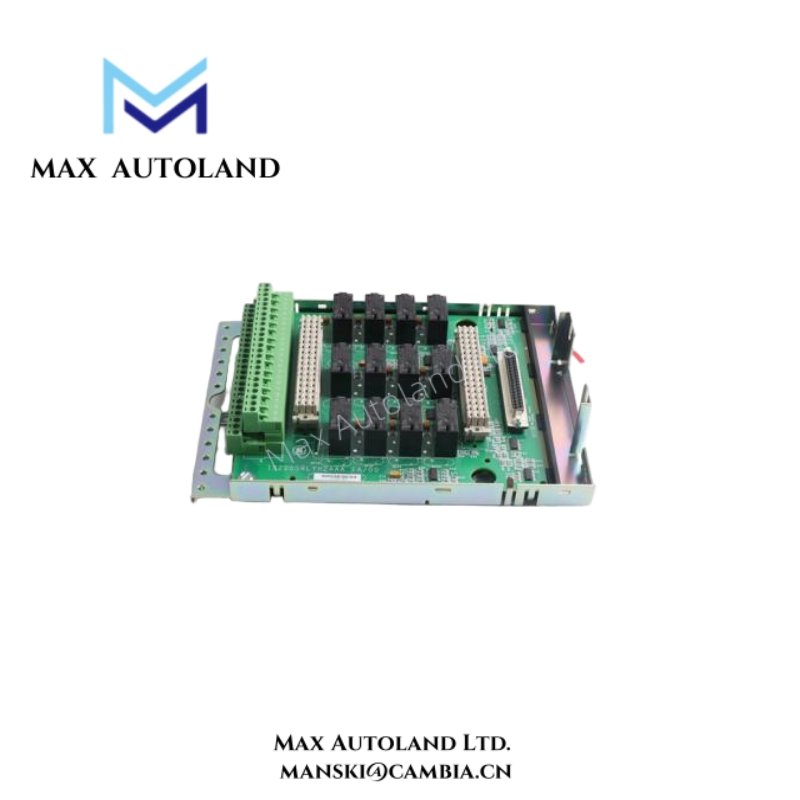

Engineered for both legacy and modern turbine control architectures, the IS230SNRLH2A enables efficient signal distribution while simplifying maintenance. In addition, its clear labeling and secure terminal connections facilitate rapid installation and troubleshooting. Engineers rely on this module for consistent discrete control operations, particularly in applications where reliability and precision are paramount.
Specification
| Parameter | Specification | Notes |
|---|---|---|
| Model | IS20OSNRLH2A（IS230SNRLH2A) | GE Fanuc discrete output module |
| Module Type | Discrete Output | Digital signal switching module |
| Function | Signal interface for turbine/process control | Provides reliable discrete signal output |
| Compatible Systems | Mark V, Mark VIe | Works with both legacy and modern control systems |
| Output Points | 32 discrete channels | Each channel individually isolated |
| Terminal Type | Screw terminals | Secure and easy-to-wire connections |
| Switching Capacity | 1 A per point | Supports standard sensor and actuator loads |
| Signal Type | Digital (On/Off) | Compatible with common industrial digital devices |
| Isolation | Channel-to-channel & channel-to-ground | Ensures operational safety and signal integrity |
| Operating Voltage | 24 VDC nominal | Standard control system voltage |
| Max Operating Temperature | 70°C | Suitable for typical industrial conditions |
| Storage Temperature | -40°C to 85°C | For shipment and storage safety |
| Relative Humidity | 5–95% non-condensing | Operates reliably in humid environments |
| Mounting | DIN rail or backplane | Flexible installation in panels or racks |
| Dimensions | Approx. 150 mm x 100 mm x 35 mm | Compact module footprint |
| Weight | Approx. 0.55 kg | Lightweight for easy handling |
| Compliance | CE, UL | Meets industrial safety and quality standards |
FAQ
A1: It is compatible with GE Fanuc Mark V and Mark VIe turbine control systems.
Q2: How many discrete output channels does this module support?
A2: The IS230SNRLH2A provides 32 discrete output channels with individual isolation.
Q3: What is the operating voltage for this module?
A3: The module operates at a nominal 24 VDC standard industrial control voltage.
Q4: Can the module handle high-temperature environments?
A4: Yes, it operates reliably up to 70°C and stores safely between -40°C and 85°C.
Q5: How is the module installed in control systems?
A5: It supports DIN rail or backplane mounting for flexible panel integration.
Q6: Does this module provide channel isolation?
A6: Yes, channel-to-channel and channel-to-ground isolation ensures safety and signal integrity.
