Overview

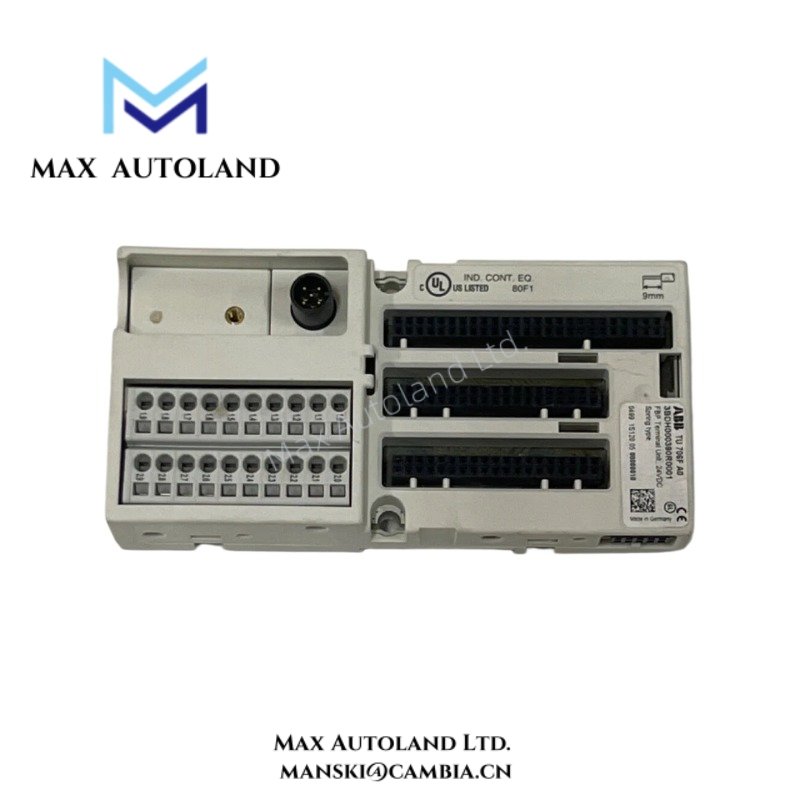

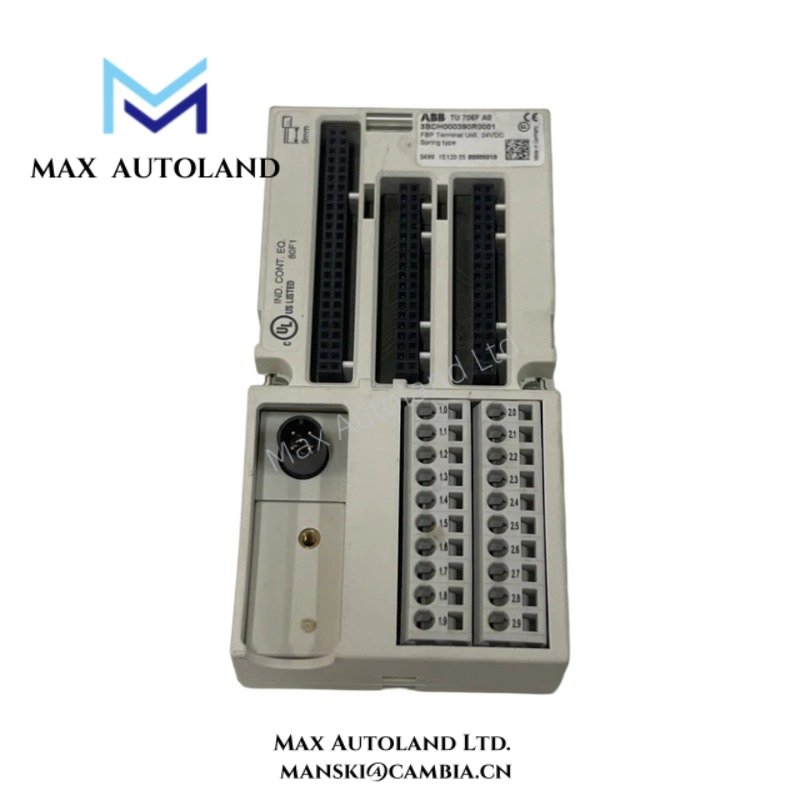

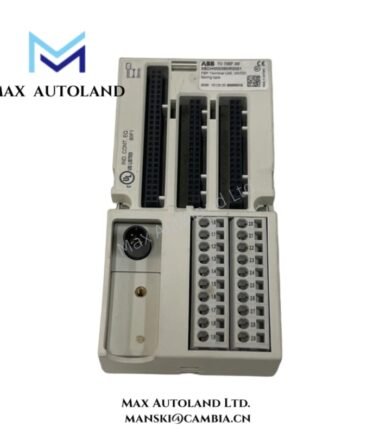

The ABB TU706F, also cataloged as the TU706F Terminal Unit, operates as a dedicated hardware component for field signal termination and wiring distribution within ABB Freelance control systems. The unit provides physical connection points between field devices and associated I/O modules while maintaining structured signal routing inside the automation cabinet.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | TU706F |
| Brand | ABB |
| Product Type | Terminal Unit |
| System Platform | ABB Freelance |
| Function | Field Signal Termination |
| Mounting Method | DIN Rail Mounting |
| Connection Type | Screw Terminal Connections |
| Signal Interface | I/O Wiring Interface |
| Application | Field-to-I/O Signal Distribution |
| Origin | ABB Manufacturing Network |
| Weight | Not specified |
| Dimensions | Not specified |
| Operating Temp | Not specified |
| Power Consumption | Passive Device, Not Specified |
I/O Density Scaling and Cabinet Integration
The TU706F functions as an interface layer between field wiring and controller I/O assemblies. Terminal units of this type support structured cabinet layouts by separating field termination from electronic processing modules. During system expansion, additional terminal units can be incorporated without modification to controller firmware, allowing scalable I/O distribution within the control architecture.
Frequently Asked Questions
Q: Does the TU706F process analog or digital signals internally?
A: No. The terminal unit provides wiring termination and signal routing only. Signal processing is performed by the connected I/O module.
Q: Can the TU706F be replaced while field wiring remains connected?
A: Power isolation is recommended before installation or removal. Replacement procedures should follow the applicable ABB system maintenance instructions.
Q: Does the terminal unit require a dedicated power supply?
A: The TU706F is a passive termination component and does not require independent operating power for its termination function.
Field Installation Guidelines
- Mount the terminal unit securely on a compatible DIN rail before connecting field wiring.
- Isolate cabinet power before wiring or maintenance activities.
- Route signal cables separately from high-voltage power conductors.
- Apply cable shield grounding according to site EMC requirements.
- Verify terminal identification before connecting field signals.
- Tighten terminal screws according to approved installation procedures.
- Inspect wiring continuity and terminal integrity before system commissioning.
