Overview

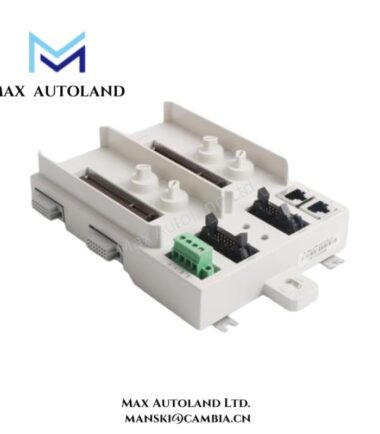

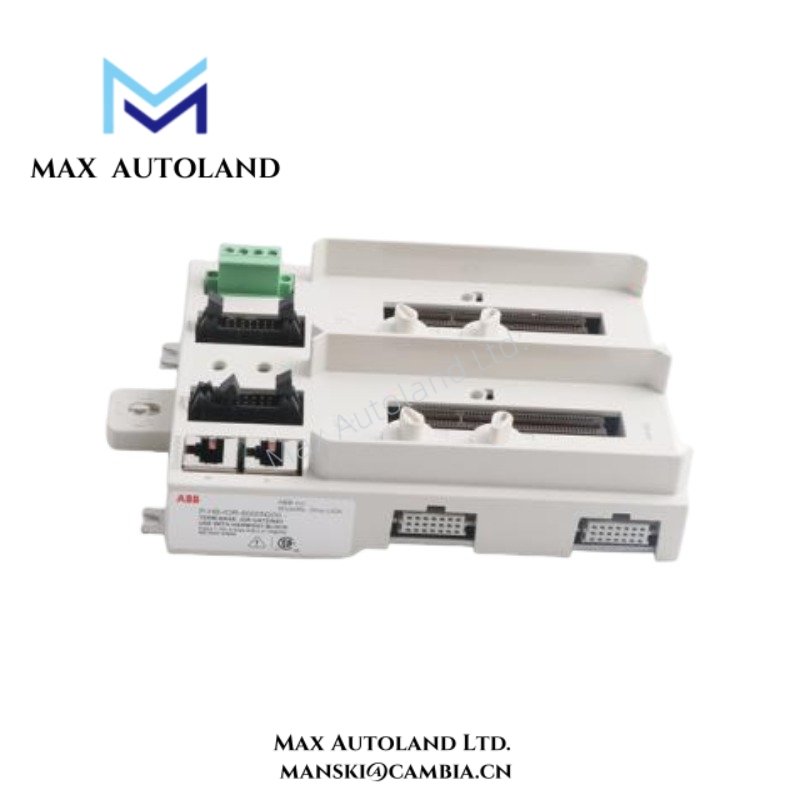

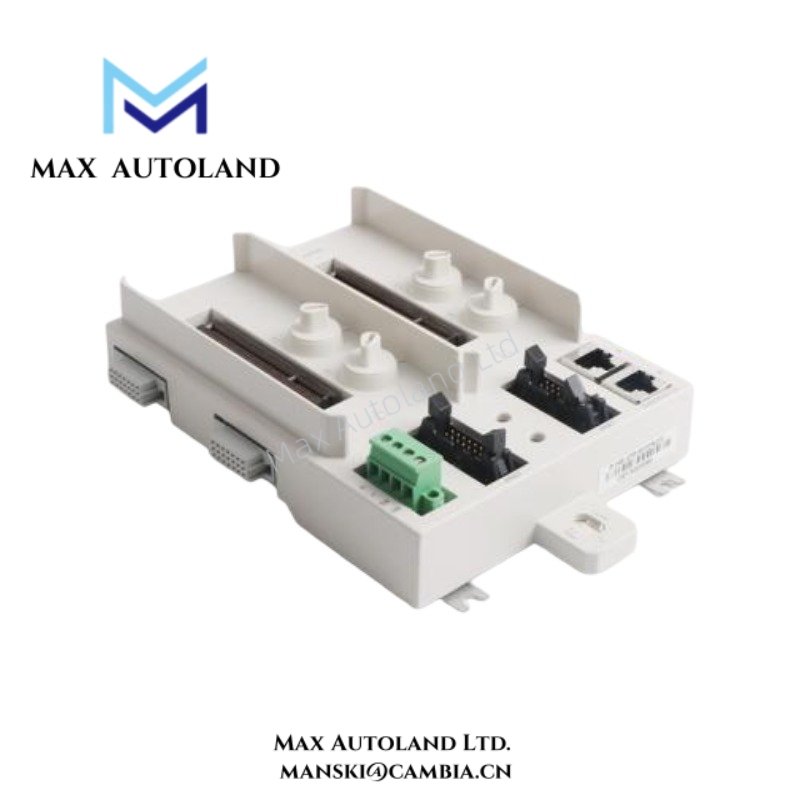

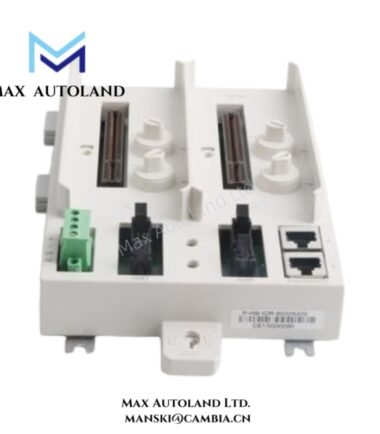

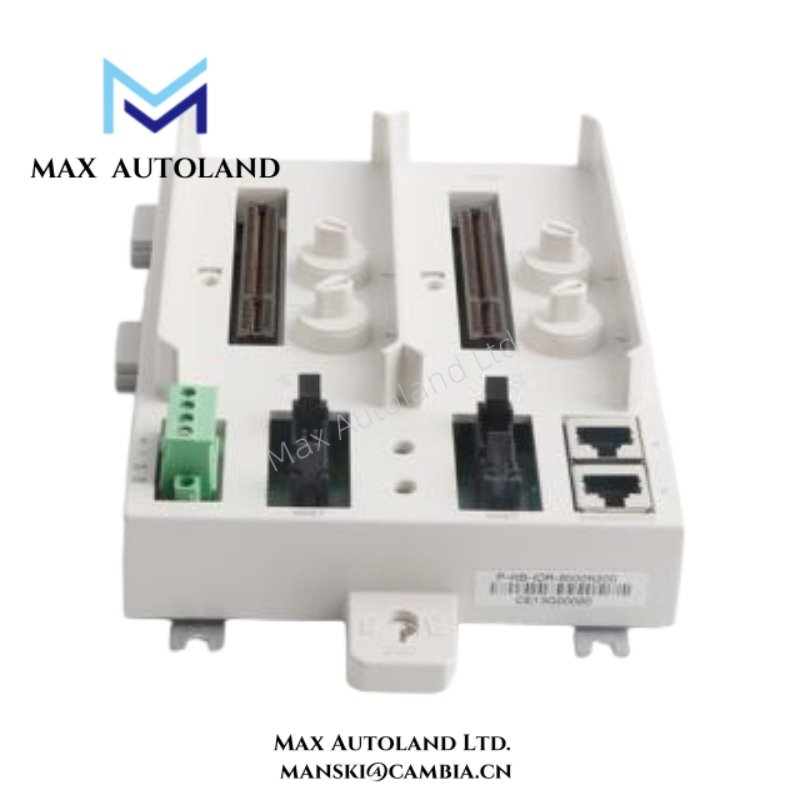

Configured for mechanical mounting and module retention in ABB Harmony control system architectures, the ABB P-HB-IOR-8000N200 (P-HB-IOR-8000N200 Mounting Base) provides direct physical support and interface positioning. The assembly serves as the installation platform for compatible I/O hardware, maintaining mechanical alignment and electrical connection integrity within the cabinet structure.
Suffix Breakdown & Model Matrix
No official suffix breakdown or ordering matrix is specified in the available documentation.
| Parameter | Specification |
|---|---|
| Model Variant | P-HB-IOR-8000N200 |
| Description | Mounting Base |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | P-HB-IOR-8000N200 |
| Brand | ABB |
| Product Type | Mounting Base |
| System Platform | ABB Harmony Series |
| Primary Function | Mechanical Module Mounting |
| Installation Type | Cabinet Installation |
| Interface Function | Module Support and Positioning |
| Construction | Industrial Mounting Assembly |
| Origin | ABB Manufacturing Network |
| Weight | Not specified |
| Dimensions | Not specified |
| Operating Temp | Not specified |
| Power Consumption | Passive Component, Not Applicable |
I/O Density Scaling Infrastructure
The P-HB-IOR-8000N200 forms part of the physical infrastructure supporting Harmony system I/O deployment. Mounting bases enable organized cabinet layouts and simplify module replacement procedures by maintaining consistent hardware positioning. Additional I/O capacity can be accommodated through expansion of compatible mounting assemblies without modification of application software or controller firmware.
Frequently Asked Questions
Q: Does the P-HB-IOR-8000N200 perform signal processing functions?
A: No. The unit serves as a mechanical mounting platform and does not perform control, communication, or signal processing tasks.
Q: Does the mounting base require external power?
A: No. The assembly is a passive hardware component intended for module support and installation.
Q: What should be inspected before installing modules onto the base?
A: Verify connector condition, mounting hardware integrity, cabinet grounding provisions, and mechanical alignment before module installation.
Field Installation Guidelines
- Secure the mounting base to the designated cabinet structure before installing associated modules.
- Confirm adequate clearance for module insertion and maintenance access.
- Inspect all mounting points for mechanical damage prior to installation.
- Maintain separation between low-level signal wiring and high-energy power conductors.
- Verify cabinet grounding arrangements before system commissioning.
- Route cables to prevent excessive mechanical stress on connected modules.
- Check retention hardware and fastening points during scheduled maintenance inspections.
