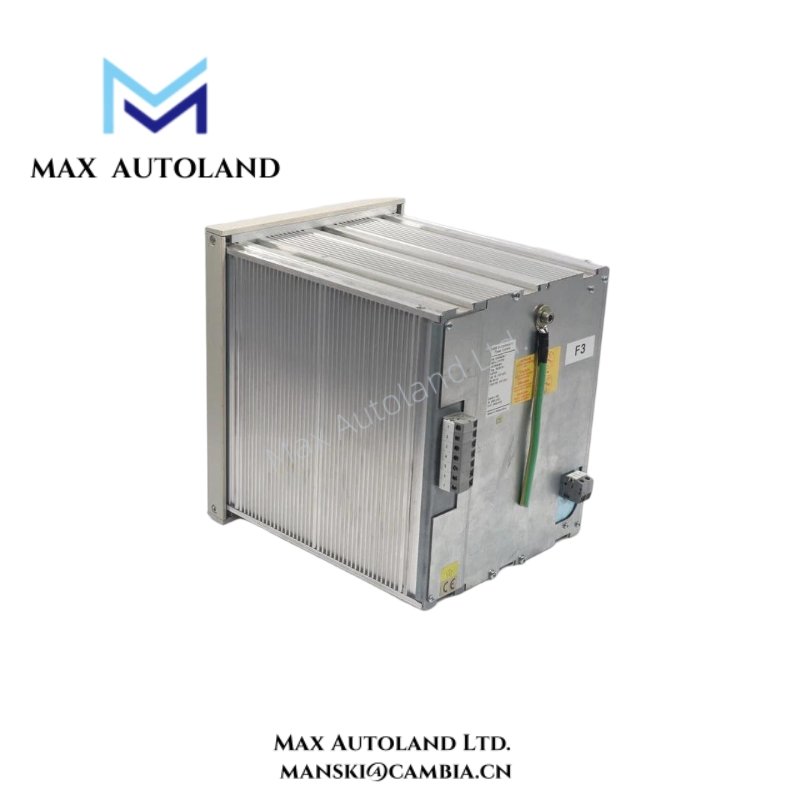

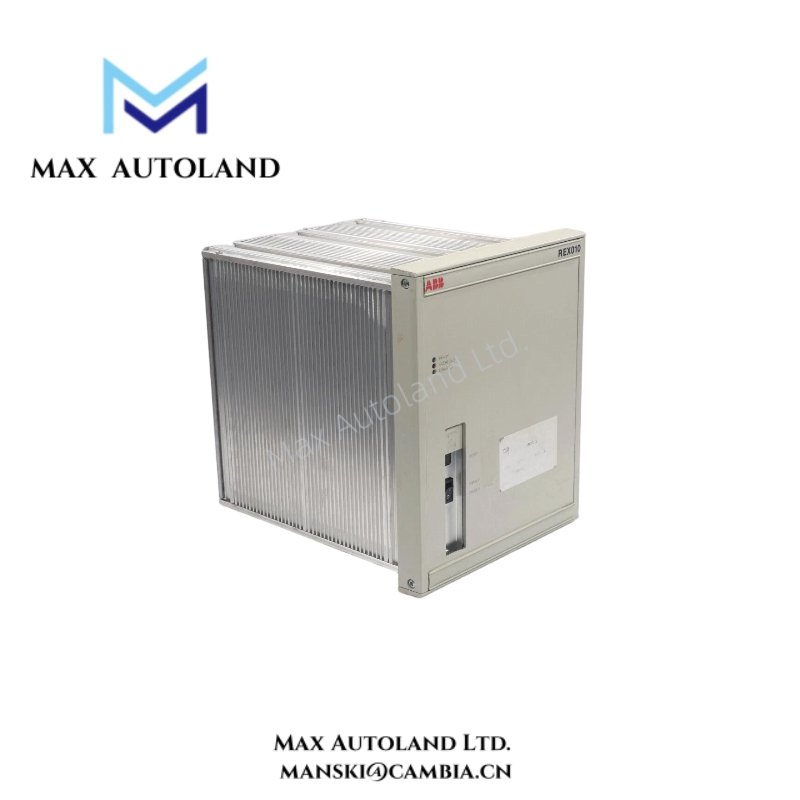

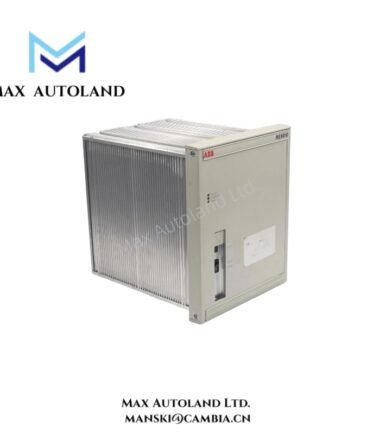

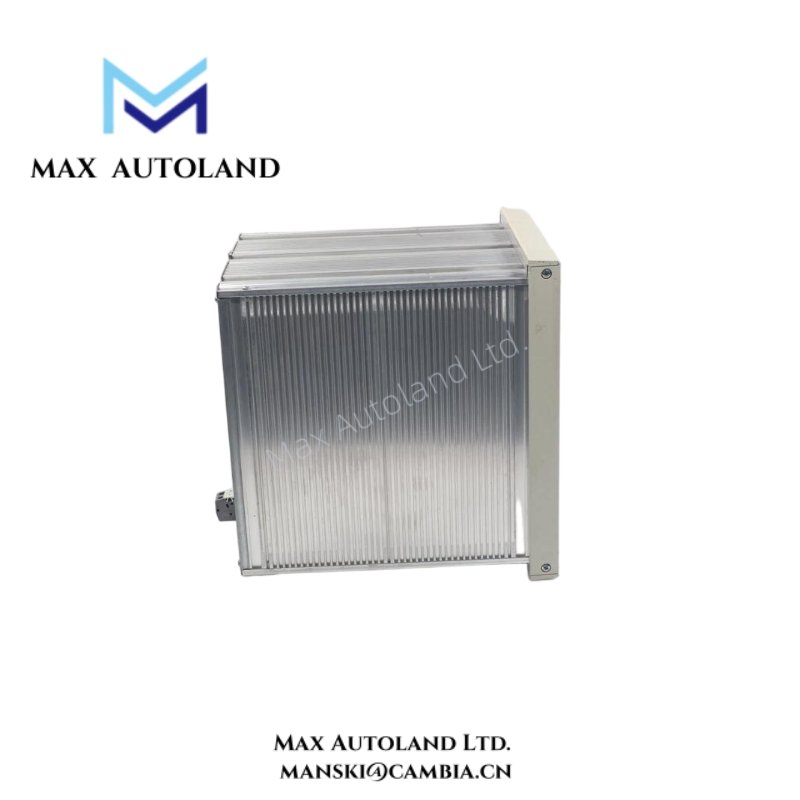

Overview
Specification
| Parameter | Description |
|---|---|
| Model Number | HESG448766R1 |
| Module Type | Power Supply Module |
| Input Voltage | 110–240 VAC, 50/60 Hz |
| Output Voltage | 24 VDC nominal |
| Output Current | 5 A maximum |
| Voltage Regulation | ±2% under load conditions |
| Efficiency | >85% typical at nominal load |
| Protection Features | Overvoltage, overcurrent, thermal shutdown |
| Status Indicators | LED for power and fault |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -25°C to 70°C |
| Mounting | Panel or DIN-rail compatible |
| Cooling Method | Natural convection |
| Weight | 0.85 kg |
| Dimensions | 180 x 90 x 45 mm |
| Standards Compliance | IEC 60950-1, UL508, CE |
FAQ
A: It is compatible with most ABB HESG-series modules. Confirm with system manuals for exact compatibility.
Q2: What protection features are included?
A: Overvoltage, overcurrent, and thermal protection safeguard connected equipment.
Q3: Can it operate in harsh industrial conditions?
A: Yes, the module maintains reliable performance in temperatures from 0°C to 55°C with vibrations and electrical noise.
Q4: How is the module installed?
A: Panel or DIN-rail mounting ensures flexible installation in control cabinets.
Q5: Does it have diagnostic indicators?
A: Yes, LED indicators display power and fault status for easy monitoring.
