Overview
Specification
| Parameter | Specification |
|---|---|

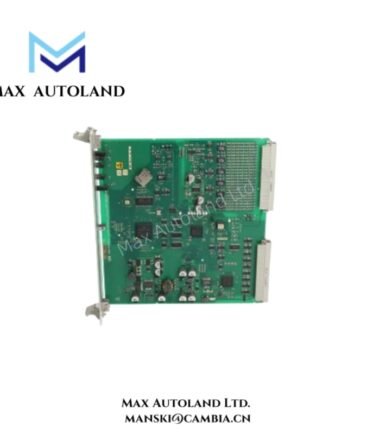

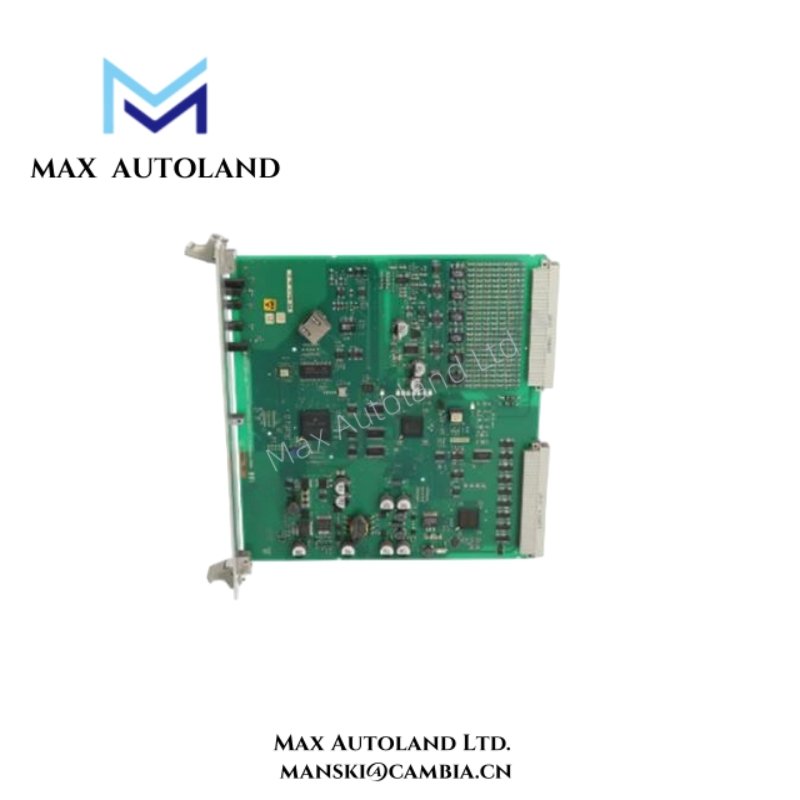

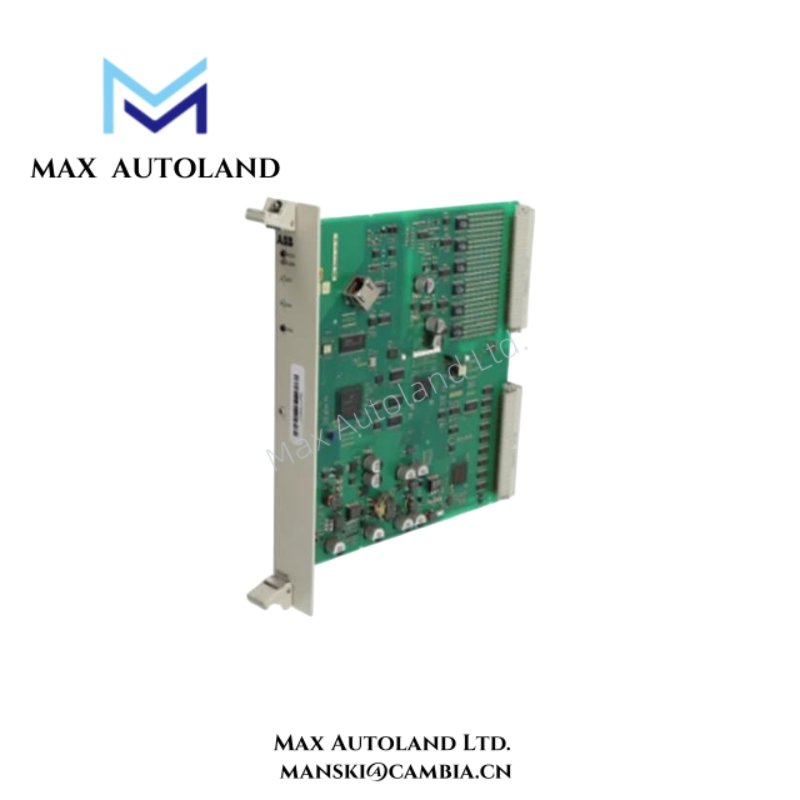

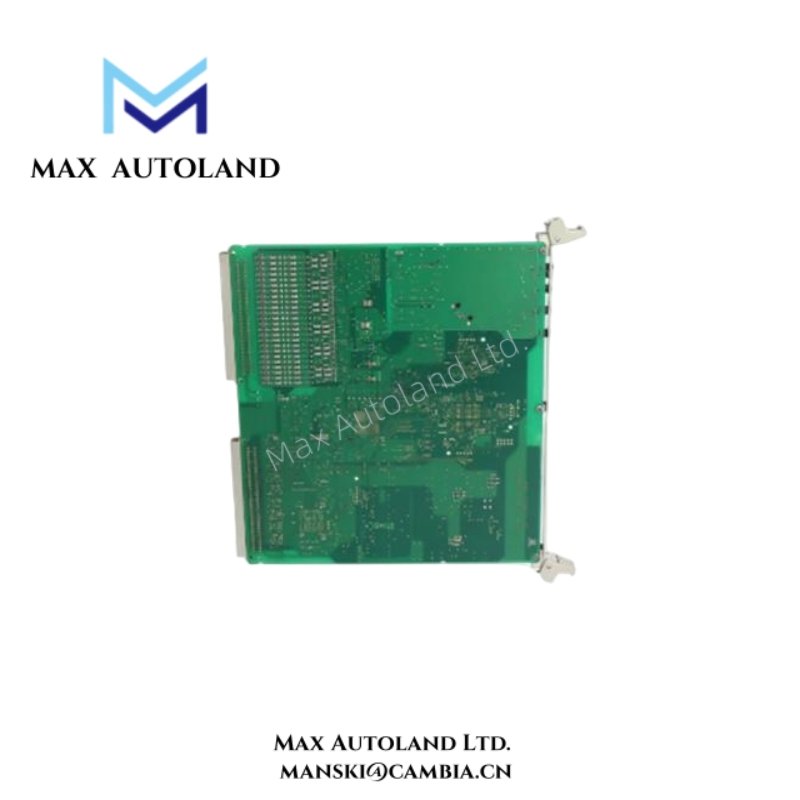

| Model Number | 216GW62 HESG324008 |
| Function | Drive Control Board for ABB AC Drives |
| Control Supply Voltage | 24 VDC ±10% |
| Input Signal Type | Digital and analog control inputs |
| Output Signal Type | Drive interface outputs for motor control |
| Communication Interface | ABB proprietary drive protocol |
| Operating Temperature | 0°C – 55°C (32°F – 131°F) |
| Storage Temperature | -25°C – 70°C (-13°F – 158°F) |
| Humidity | 5% – 95% non-condensing |
| Power Consumption | <10 W typical |
| Fault Protection | Overcurrent, overvoltage, thermal protection |
| Mounting | DIN rail or panel mount |
| Dimensions | 150 mm × 100 mm × 40 mm (approx.) |
| Weight | 0.45 kg |
| Diagnostics | Real-time monitoring of drive status and faults |
| Compliance | CE certified, industrial-grade components |
| Environmental Rating | IP20 / indoor use |
FAQ
A: It is compatible with most ABB AC drive models. Check specific drive manuals for compatibility.Q: Can it handle high-temperature environments?
A: Yes, it operates reliably between -20°C and 60°C.
Q: Does it include protective features for fault conditions?
A: Yes, it has overvoltage, short circuit, and thermal protections.
Q: Is installation difficult for retrofit applications?
A: No, it is designed for easy installation with clear wiring and mounting options.
Q: Where can I find firmware updates or technical support?
A: ABB provides support and updates through official channels and authorized distributors.
