Overview

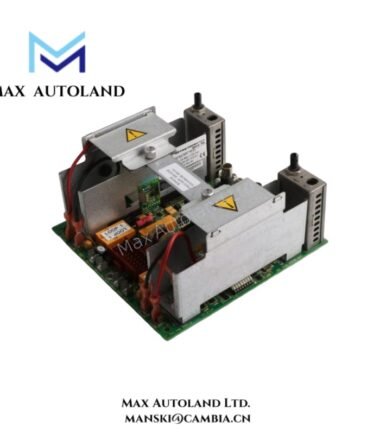

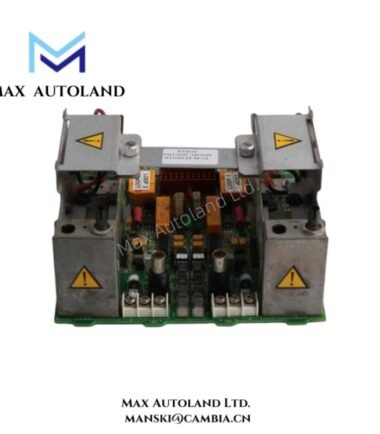

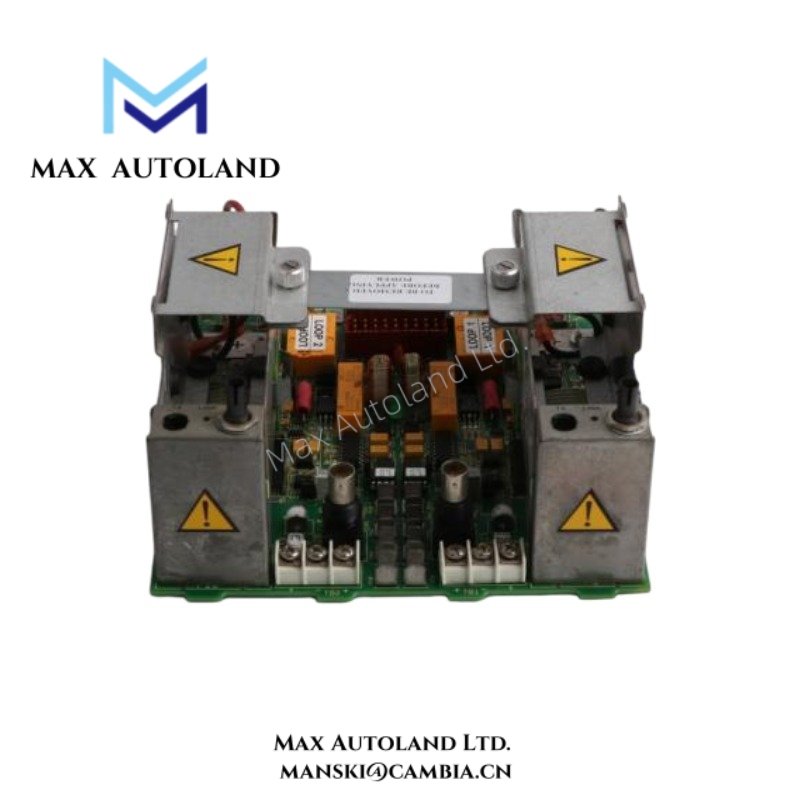

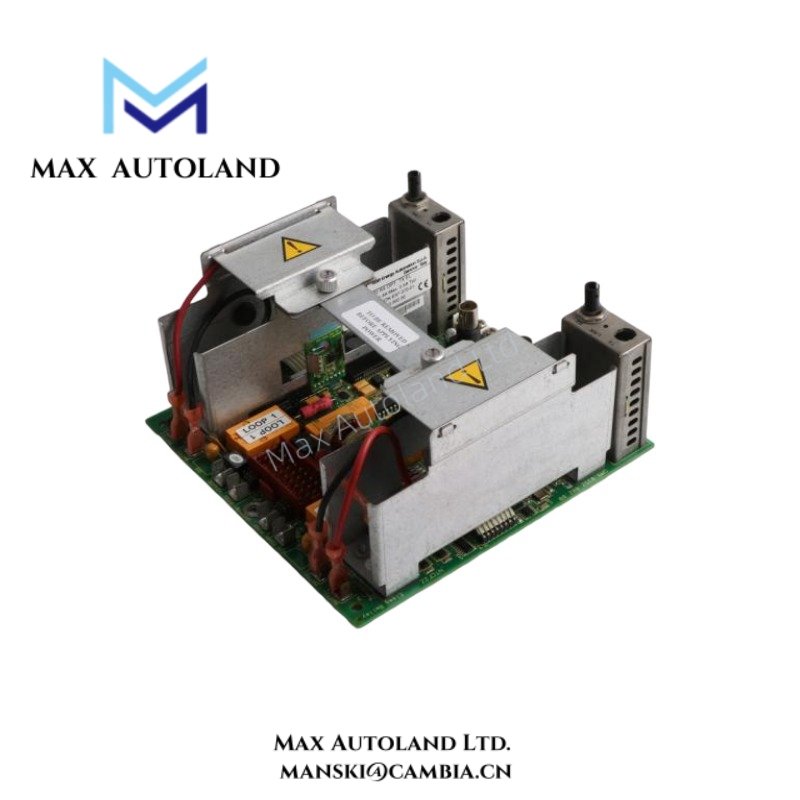

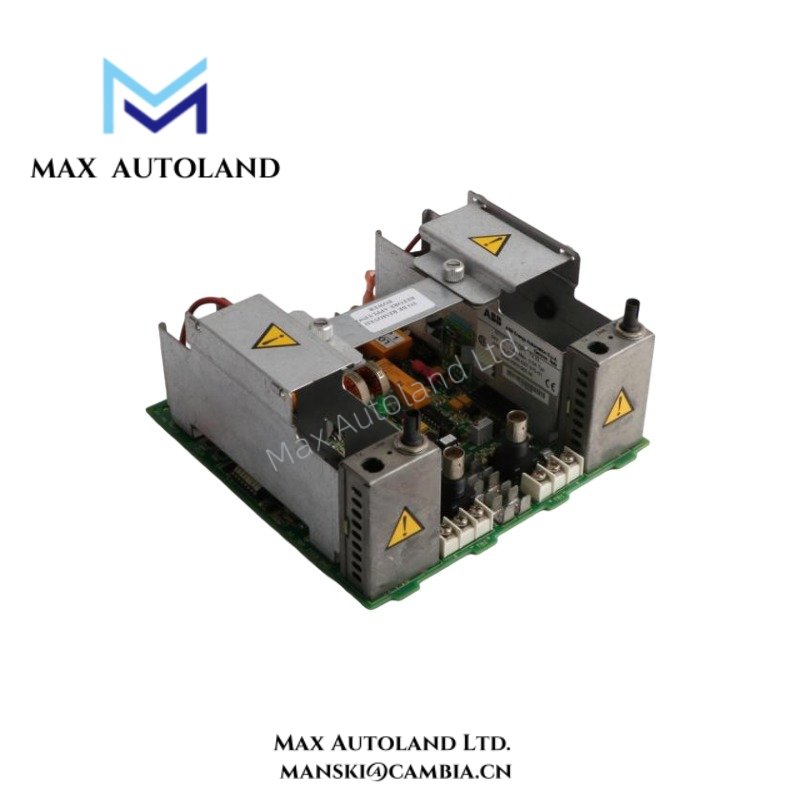

Configured for optic-to-electric signal termination in the INFI-Net communication network, the ABB NTCF22 (NTCF22 Termination Unit) provides direct physical signal conversion between fiber-optic communication links and electrical network interfaces. The module is identified as an INFI-Net Optic-to-Electric Termination Unit within the Symphony Harmony INFI 90 hardware platform.
Suffix Breakdown & Model Matrix
The supplied documentation identifies a single catalog designation, NTCF22. No official suffix variants or ordering matrix are specified in the available documentation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | NTCF22 |
| Brand | ABB |
| Product Type | INFI-Net Optic-to-Electric Termination Unit |
| System Family | Symphony Harmony INFI 90 |
| ABB Product Family | Harmony Rack HW |
| Communication Function | Fiber-optic to electrical signal termination |
| Network Interface | INFI-Net communication system |
| Origin | Italy (IT) / India (IN) |
| Dimensions | 160.02 mm x 210.82 mm x 226.06 mm |
| Weight | Gross Weight: 5.2 kg |
| Operating Temp | Not specified in available documentation |
| Power Consumption | Not specified in available documentation |
| Mounting Environment | Harmony rack hardware installation |
| Product Category | Hardware |
| Technical Information | INFI-Net Optic-to-Electric TU |
Backplane Communication and Network Integration
The NTCF22 functions as a communication termination interface within the Symphony Harmony INFI 90 architecture. Its primary task is the conversion and termination of optical communication signals for integration into the electrical communication infrastructure of the control system.
Within distributed control configurations, optic-to-electric termination hardware allows fiber communication segments to interface with rack-mounted communication equipment while maintaining separation between optical transmission media and electrical network circuitry.
Frequently Asked Questions
Q: Does the NTCF22 perform signal conversion or protocol processing?
A: The documented function of the NTCF22 is optic-to-electric termination and signal conversion for the INFI-Net communication system. No protocol gateway or controller processing functionality is specified.
Q: Can the NTCF22 be installed outside a Harmony rack environment?
A: Available product information identifies the device as part of the Harmony Rack HW family. Installation should follow the rack and cabinet requirements defined for the associated Symphony Harmony INFI 90 platform.
Q: Are operating temperature limits and power consumption values published for this module?
A: The referenced documentation does not provide operating temperature or power consumption specifications. System engineering should therefore rely on the applicable Harmony rack hardware manuals and cabinet design requirements.
Field Installation Guidelines
- Install the module only in approved Harmony rack hardware locations.
- Verify fiber-optic cable routing before energizing communication links.
- Maintain separation between communication cabling and high-current power conductors.
- Observe cabinet grounding and shield termination practices specified for the INFI-Net network.
- Inspect optical connectors for contamination before installation.
- Confirm proper seating of the termination unit in the rack backplane connection area.
- Perform communication diagnostics after installation to verify optical link continuity and electrical network connectivity.
