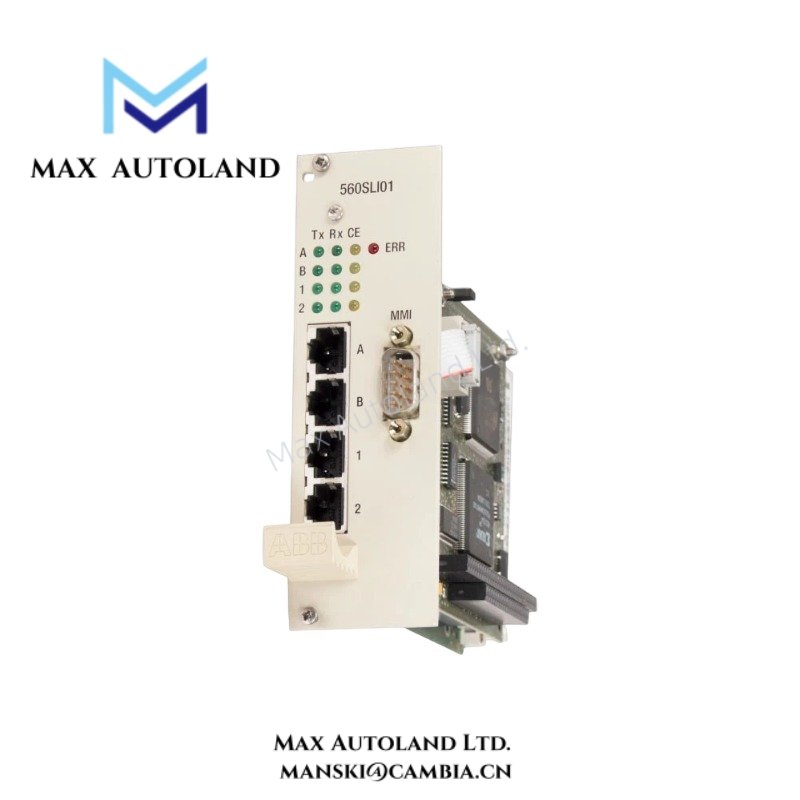

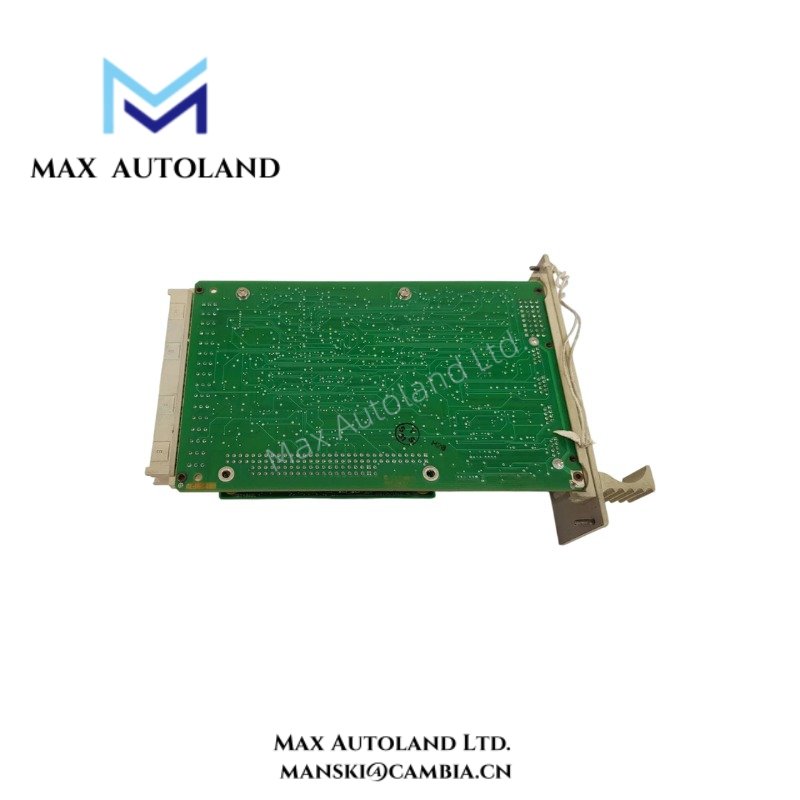

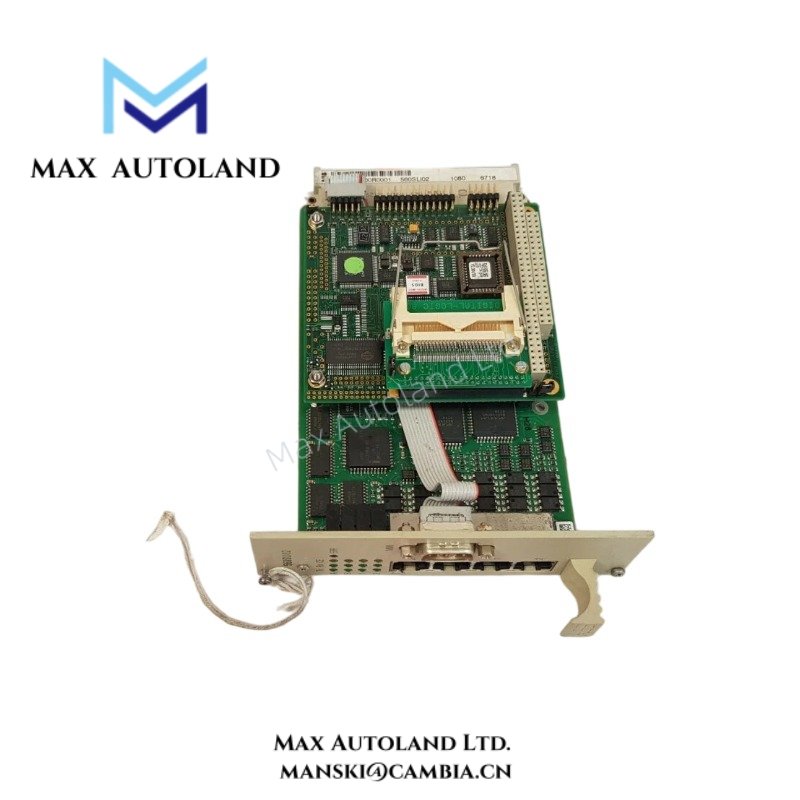

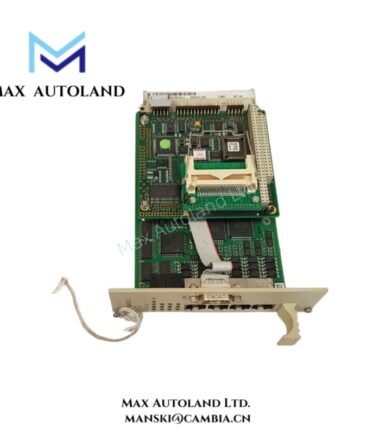

ABB MasterBus 300 Series 560SLI01 Communication Interface Modules

Overview

Configured for serial data communication in ABB automation backplane environments, the ABB 560SLI01 (560SLI01 Serial Line Interface Unit) provides direct electrical execution. The module functions as a communication interface between serial devices and ABB control system architectures, enabling data transfer through dedicated serial line connections and backplane communication channels.

Suffix Breakdown & Model Matrix

The supplied documentation identifies a single catalog number: 560SLI01. No official suffix matrix or ordering-code breakdown is specified in the available source material. The associated model type is listed as 1KGT006000R0001.

Hardware Specifications

Backplane Communication and Network Integration

The 560SLI01 functions as a serial communication interface within ABB automation platforms. First, the module receives data through connected serial communication channels. It then transfers the acquired information directly to the control architecture through its interface circuitry. As a result, the system can exchange data between field devices and supervisory control components without additional processing hardware.

Furthermore, users can expand communication capacity by installing additional interface modules while maintaining the existing controller configuration. This approach simplifies system scaling and reduces modification requirements for the primary control platform.

In addition, engineers typically install communication modules close to the controller rack inside the system cabinet. Consequently, shorter cable runs help reduce signal exposure to electrical noise. At the same time, the installation arrangement supports consistent communication performance between field-connected equipment and the controller backplane.

Frequently Asked Questions

Q: Does the 560SLI01 perform control logic execution?
A: No. The 560SLI01 handles serial communication tasks and data exchange functions. Instead of executing control algorithms, it transfers communication data between connected devices and the ABB automation system.

Q: Can the module operate as a communication gateway for serial devices?
A: Yes. The module establishes serial communication links with compatible field devices and exchanges data with the host automation platform through the system interface architecture.

Q: Are power consumption and environmental ratings available?
A: The available documentation does not specify numerical values for power consumption or operating temperature. Therefore, users should consult the original ABB technical manual before defining environmental or electrical design limits.

Field Installation Guidelines

• First, install the module in a properly grounded control cabinet.
• Next, route serial communication cables separately from motor power conductors and switching circuits.
• Additionally, terminate cable shields according to the facility grounding strategy and ABB installation practices.
• Before applying power, verify correct alignment between the module connector and the backplane interface.
• During installation, maintain sufficient clearance for cable bending radius and future maintenance access.
• Furthermore, confirm that communication parameters match the settings of all connected serial devices before commissioning.
• Finally, perform continuity and insulation verification on all communication wiring prior to energization.
