Overview

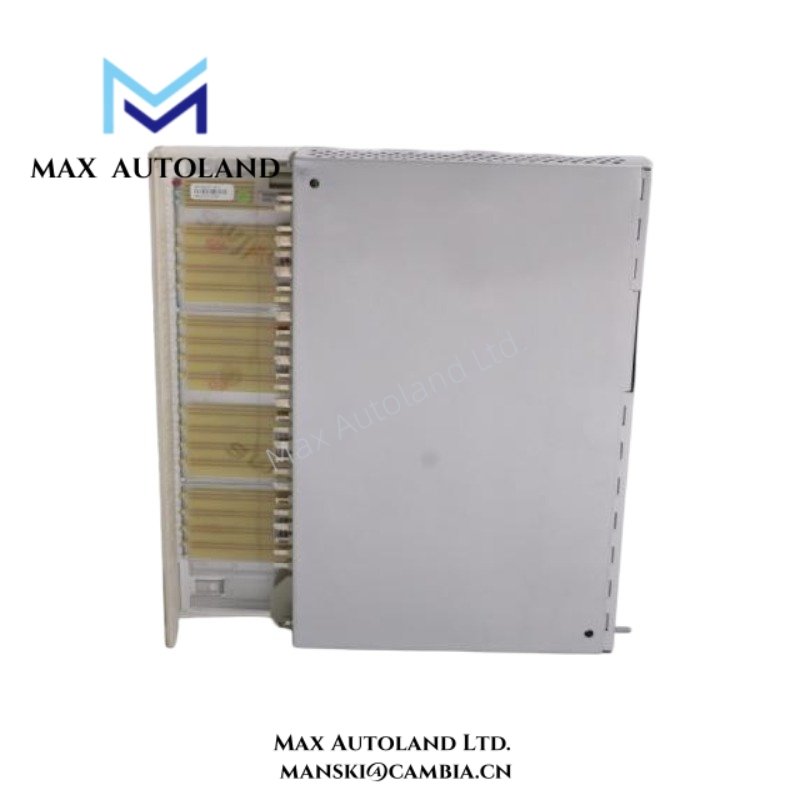

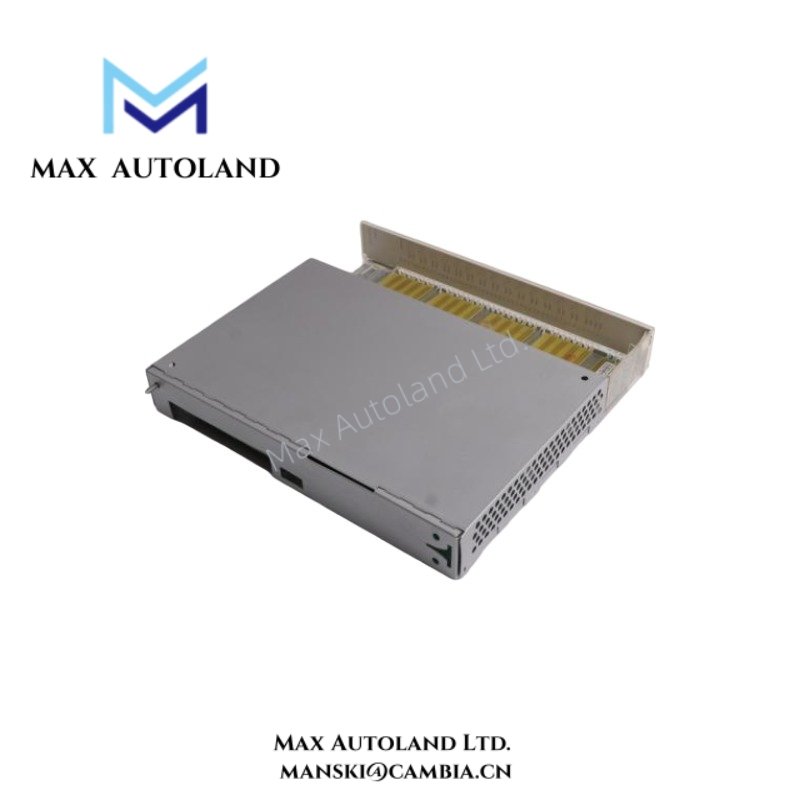

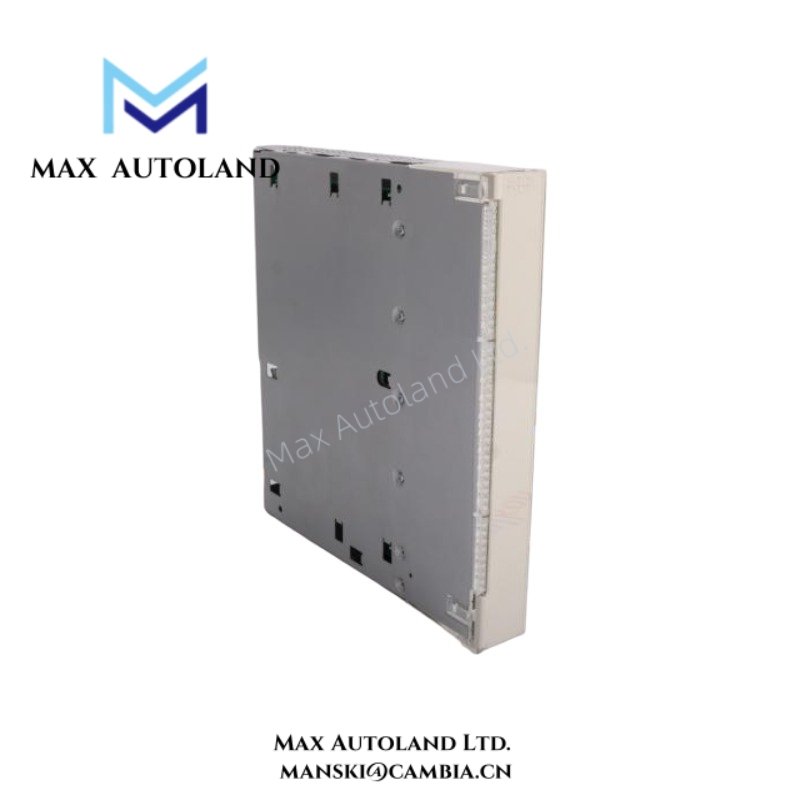

Configured for discrete signal actuation in Advant Master distributed control architectures, the ABB DO630 3BHT300007R1 (DO630 Digital Output Module) provides direct electrical switching of field loads through backplane-integrated output drivers within the ABB Master system environment.
Suffix Breakdown & Model Matrix
The full ordering designation 3BHT300007R1 identifies the hardware revision level within the DO630 module family. No additional functional suffix segmentation (such as channel count or option codes) is defined separately from the base module identity in the available documentation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DO630 3BHT300007R1 |
| Brand | ABB |
| Origin | Not explicitly specified |
| Weight | Not explicitly specified |
| Dimensions | Not explicitly specified |
| Operating Temp | Not explicitly specified |
| Power Consumption | Not explicitly specified |
| Product Type | Digital Output Module |
| System Compatibility | ABB Advant Master / Master System |
| Output Function | Discrete ON/OFF signal switching |
| Channel Architecture | Multi-channel digital output (implementation defined by system backplane) |
| Mounting | Rack-based backplane insertion |
| Isolation | Channel-to-system galvanic isolation (system-level implementation) |
ABB MasterBus Backplane Output Execution Behavior
The DO630 module operates as a backplane-addressed digital actuator within the ABB Master control environment. Output commands are received through internal MasterBus communication, and each output channel maps to a deterministic switching register.
Within ABB PLC/DCS architectures of this class, I/O density scaling occurs at the rack level. Accordingly, multiple digital output modules share a synchronized backplane timing reference. The DO630 output stage employs transistor-based switching elements. These elements respond to internal logic decoding of backplane commands.
In addition, the system maintains signal integrity through channel-level electrical isolation. This isolation reduces cross-channel coupling during inductive load switching conditions. The output refresh also synchronizes with system scan cycles defined by the Master system controller firmware.
Frequently Asked Questions
Q: Does the DO630 support hot-swap replacement during system operation?
A: The module targets rack-based installation. However, hot-swap capability depends on the specific Advant Master rack configuration and backplane design. In standard configurations, technicians must perform a controlled system shutdown before removal.
Q: What is the backplane current dependency of the DO630 module?
A: The module draws operating power from the system backplane. In practice, exact current consumption depends on rack engineering design, output loading configuration, and overall system architecture.
Q: Can the DO630 outputs be paralleled for higher current drive?
A: Each output channel operates as an individually controlled switching point. Therefore, parallel operation does not represent a standard configuration. Engineers must follow ABB system design rules to prevent driver stage contention.
Field Installation Guidelines
- Install the module only into compatible ABB Master rack backplane slots.
- First, verify mechanical keying alignment before full module insertion.
- Next, ensure load wiring remains disconnected during insertion to avoid unintended output activation.
- Maintain proper shielding and grounding for output cable assemblies at cabinet entry points.
- Route digital output wiring separately from high-frequency communication and analog signal lines.
- Confirm output channel mapping against controller configuration prior to energization.
- Finally, execute a controlled I/O test sequence to validate channel switching integrity.
