Overview
Specification
| Parameter | Description |
|---|---|

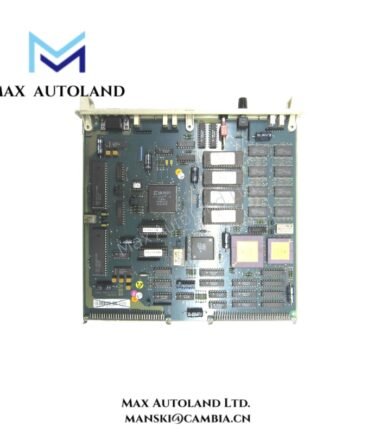

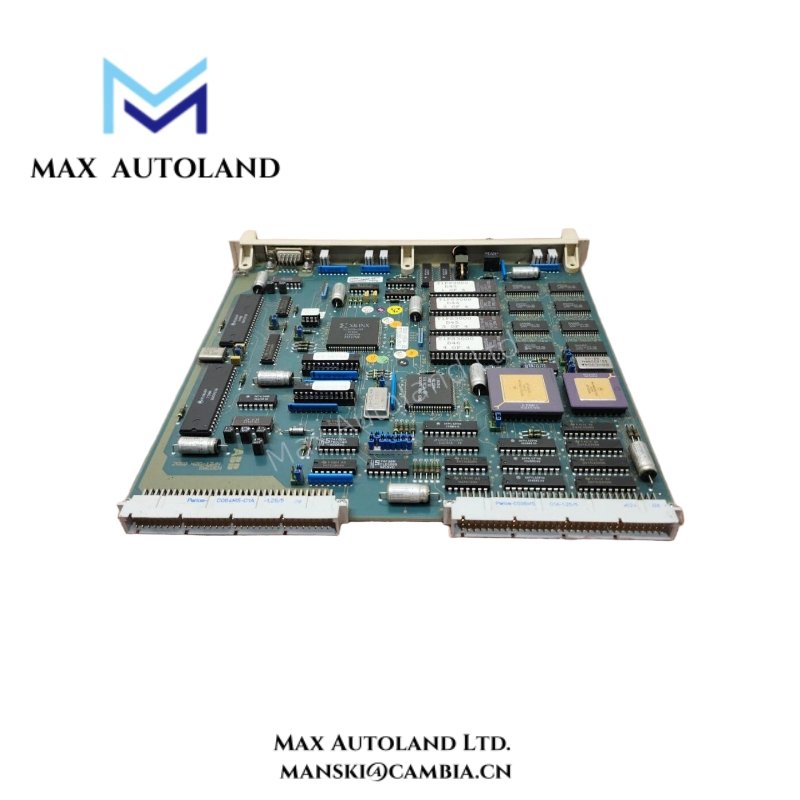

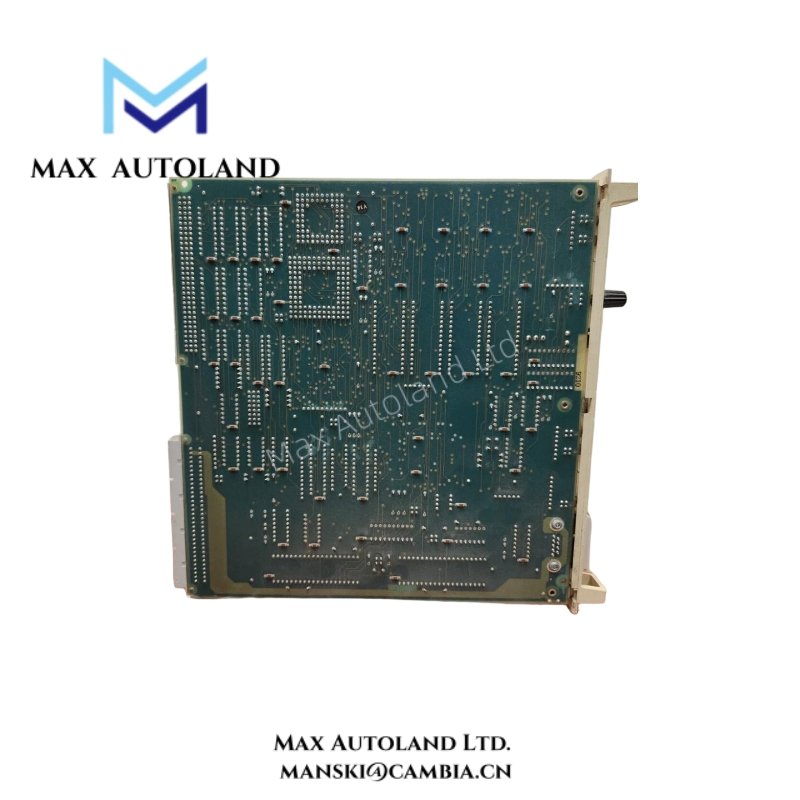

| Model Number | DSCA 190V REP57310001-PK |
| Module Type | Master Communication Processor |
| System Compatibility | ABB Advant OCS / 800xA Automation Systems |
| Function | Manages data exchange across master and peripheral devices |
| Network Interface | Supports Master Bus 300 / ABB communication protocols |
| Data Rate | High-speed industrial communication |
| Input Voltage | 24 V DC typical |
| Power Consumption | ≤ 5 W |
| Operating Temperature Range | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature Range | –20°C to 70°C (–4°F to 158°F) |
| Humidity | 5% to 95% non-condensing |
| Mounting | Rack-mounted in standard ABB control cabinets |
| Diagnostics | LED indicators for operational and communication status |
| Dimensions | Standard ABB module size |
| MTBF | >100,000 hours typical in industrial environments |
| Certifications | Complies with ABB industrial and safety standards |
FAQ
It is fully compatible with ABB Advant OCS and 800xA automation networks.
Q2: What is the primary function of this processor?
It actively manages high-speed data communication between controllers, field devices, and peripheral modules.
Q3: Can it operate reliably in harsh industrial environments?
Yes, it tolerates electrical noise, vibration, and temperature fluctuations without performance loss.
Q4: How is this module installed in a control cabinet?
It mounts easily on a standard ABB Advant OCS or 800xA control rack.
Q5: Are diagnostic tools available for monitoring its operation?
Yes, built-in LED indicators provide clear status for communication and operational health.
