Overview

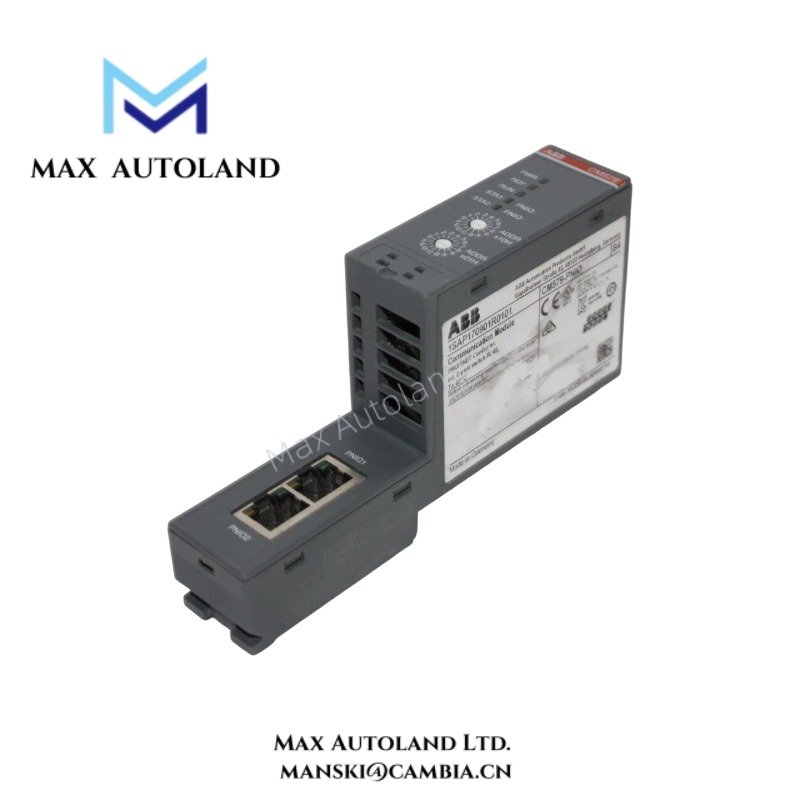

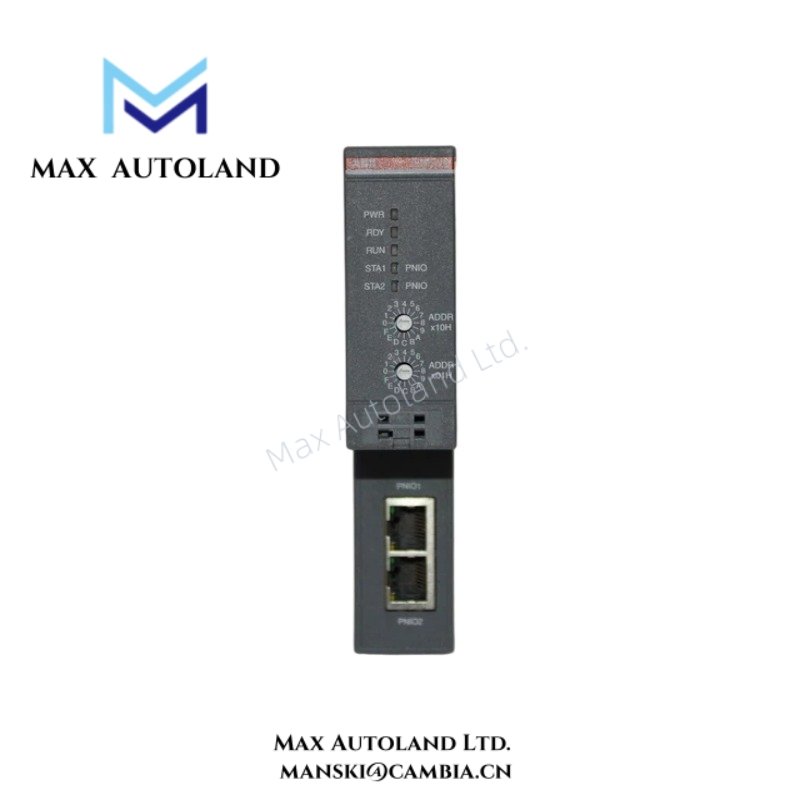

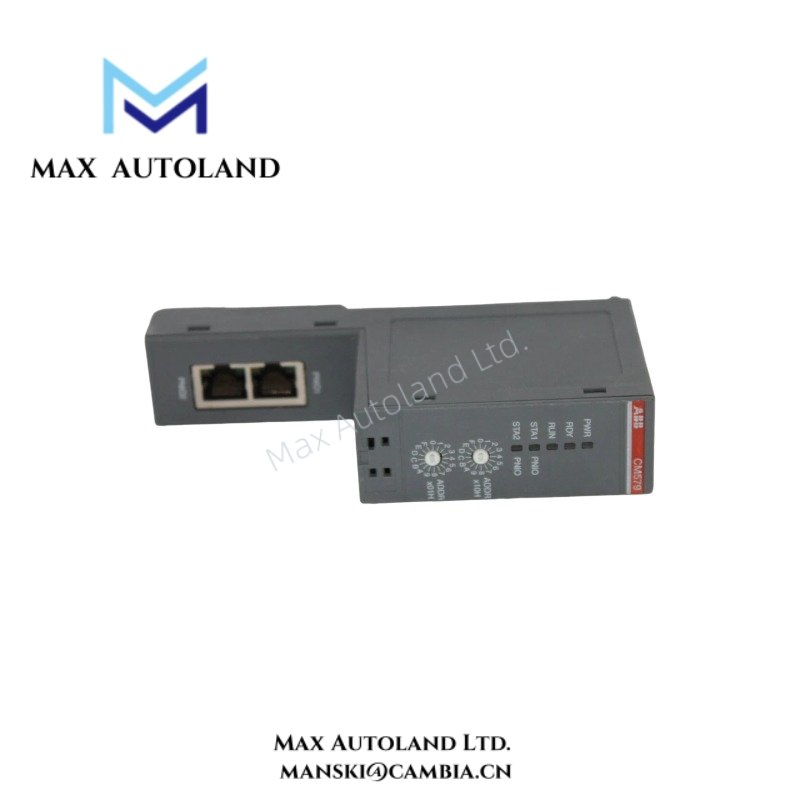

Configured for PROFINET I/O real-time data exchange in ABB AC500-based control architectures, the ABB CM579-PNIO PROFINET I/O RT Master Communication Module (CM579-PNIO Communication Module) provides direct fieldbus communication execution for Ethernet-based deterministic process data transfer within AC500 PLC systems.
Suffix Breakdown & Model Matrix
The designation CM579-PNIO identifies a communication module variant within the ABB CM57x series.
- CM: Communication Module family
- 579: PROFINET-enabled hardware generation within AC500 extension modules
- PNIO: PROFINET IO RT (Real-Time) protocol support
No additional hardware option suffixes or functional sub-variants are defined in the provided documentation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | CM579-PNIO |
| Brand | ABB |
| Origin | Not explicitly specified |
| Weight | Not explicitly specified |
| Dimensions | Not explicitly specified |
| Operating Temp | Not explicitly specified |
| Power Consumption | Not explicitly specified |
| Product Type | PROFINET I/O Communication Module |
| System Compatibility | ABB AC500 PLC platform |
| Protocol | PROFINET IO RT |
| Interface | Industrial Ethernet |
| Mounting | DIN-rail mounted PLC expansion module |
| Function | Master/slave PROFINET I/O data exchange |
PROFINET Deterministic Network Execution and AC500 Integration Behavior
The CM579-PNIO module operates as a PROFINET IO RT communication interface within the AC500 backplane expansion architecture. It manages cyclic and acyclic data exchange between PLC process image memory and external PROFINET IO devices.
Within AC500 system topology, the module participates in deterministic Ethernet scheduling. The PROFINET stack executes cyclic process data frames using real-time scheduling classes, enabling predictable update intervals between controller and field devices.
Additionally, the module maps PROFINET IO data structures directly into PLC process image registers. This mapping reduces software-layer translation overhead and aligns communication timing with the PLC scan cycle execution.
The Ethernet communication stack handles frame prioritization at the MAC layer, ensuring IO telegram sequencing consistency under mixed traffic conditions.
Frequently Asked Questions
Q: Does the CM579-PNIO support hot-swapping during PLC operation?
A: The module is designed for DIN-rail PLC system integration. Hot-swapping depends on AC500 CPU configuration and system firmware settings. In most standard configurations, module replacement requires system stop or controlled maintenance mode.
Q: Can the module operate in PROFINET IRT mode?
A: The CM579-PNIO is specified for PROFINET IO RT operation. IRT (Isochronous Real-Time) support depends on system-level AC500 hardware and firmware combinations and is not guaranteed by the module alone.
Q: How is PROFINET device addressing handled?
A: Device naming and IP assignment are managed through PROFINET engineering tools. The module stores configuration parameters in non-volatile memory and applies them during system initialization.
Field Installation Guidelines
- Mount the module on a standard DIN rail compatible with AC500 PLC backplane architecture.
- Verify that the PLC is in a safe operational state before inserting or removing the module.
- Ensure Ethernet cabling complies with industrial Cat5e or higher shielding requirements.
- Maintain separation between PROFINET cables and power wiring to reduce electromagnetic coupling.
- Use proper shield termination at cabinet entry points with low-impedance grounding.
- Confirm correct PROFINET device naming before commissioning.
- Perform controlled network diagnostics to verify cyclic IO data exchange stability after installation.
