Overview

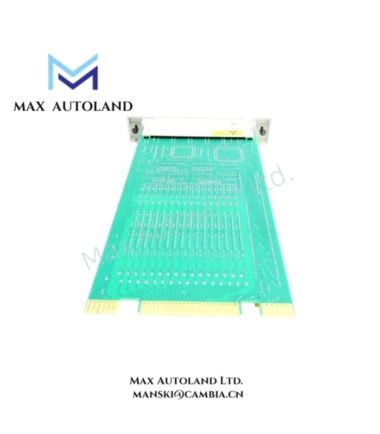

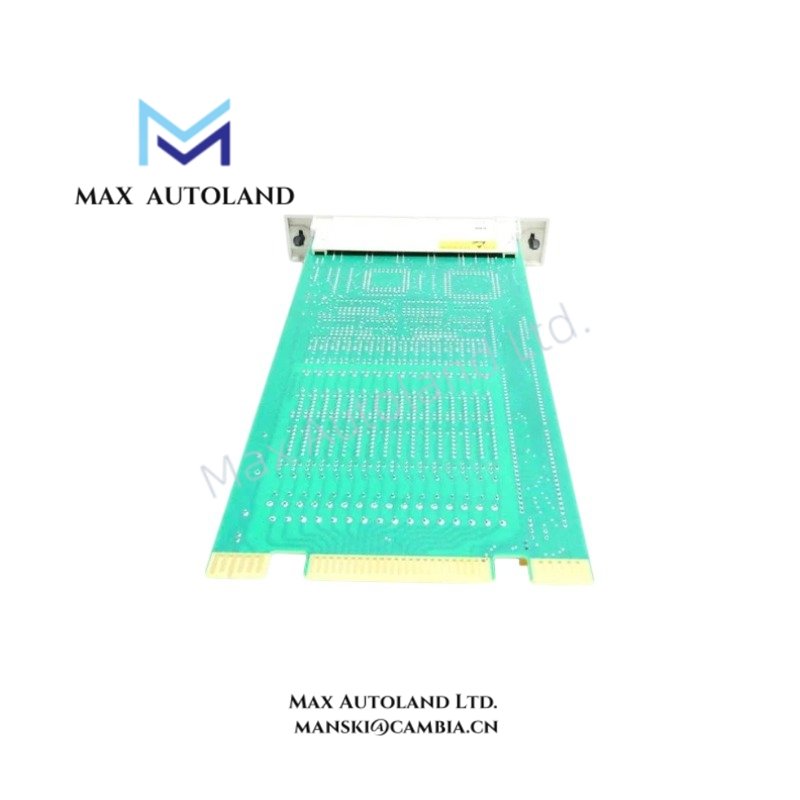

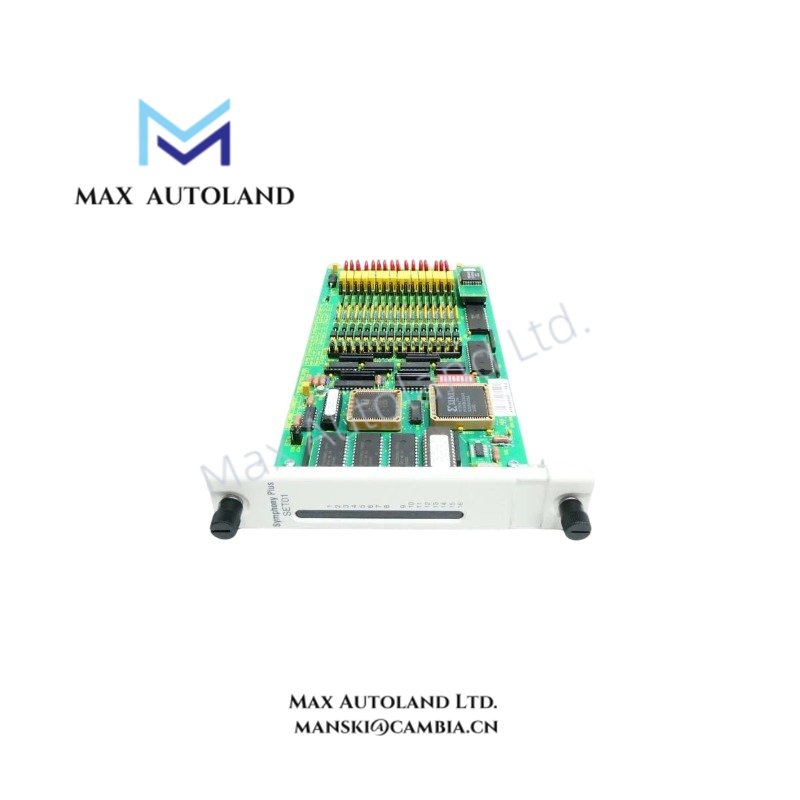

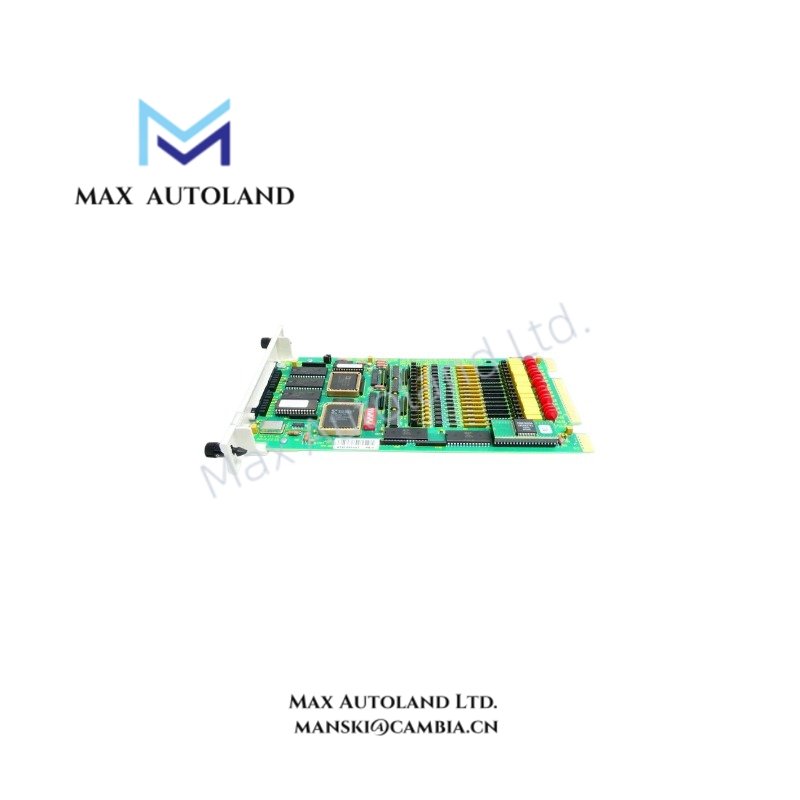

The ABB SPSET01, also cataloged as the SPSET01 Sequence-of-Events Digital Input Module, operates as a dedicated hardware component for high-resolution event timestamping and controller time synchronization within ABB distributed control system networks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model Brand | ABB SPSET01 |
| Origin | Sweden |
| Weight | 0.4 kg |
| Dimensions | 17.8 x 5.1 x 33.0 cm |
| Operating Temp | -25 … +70 degC (rack air) |
| Storage Temp | -40 … +85 degC |
| Power Consumption | Back-plane: +5 V DC 350 mA; Field-loop: 24 V DC 30 mA |
| Channels | 16, optically isolated |
| Input Voltage | 24 V DC (ON >= 15 V, OFF <= 5 V, 2 V hysteresis) |
| Input Current | 4 mA @ 24 V |
| SOE Resolution | 1 us |
| Isolation | 500 V AC channel-to-back-plane |
Backplane Bus Communication and Firmware Flash Compatibility
The module interfaces with the controller backplane via a high-speed deterministic bus, ensuring timestamp data is transferred without polling latency. Firmware flash compatibility is strictly bound to the specific BRC controller generation; cross-flashing between different controller families is prohibited to prevent communication timeouts and SOE buffer mismatches. The module requires a stable +5 V DC backplane supply within +/- 5% tolerance to maintain the internal oscillator accuracy for time synchronization.
Frequently Asked Questions
Q: What is the maximum permissible backplane current draw for this module?
A: The module draws a nominal 350 mA from the +5 V DC backplane supply. System power budget calculations must account for this load to prevent voltage drop below the minimum operating threshold of 4.75 V DC.
Q: Is hot-swapping supported for the SPSET01 module?
A: No. To prevent corruption of the SOE buffer and disruption of the time synchronization link, power must be removed from the rack before inserting or removing the module.
Q: How is the 1 us SOE resolution maintained across multiple modules?
A: Resolution is maintained through the dedicated time synchronization link to the BRC controller, which distributes a common high-accuracy clock reference to all SOE modules in the rack.
Field Installation Guidelines
Mount the module into the designated slot of the ABB controller rack, ensuring the extractor levers fully seat the unit onto the backplane connector. Torque the module retaining screws to the specified value. Route field wiring away from high-voltage power conductors to minimize inductive interference. Ground the shield of the input cables at a single point to the rack ground busbar. Verify that the field-loop supply voltage is stable at 24 V DC prior to energizing the module.
