Overview

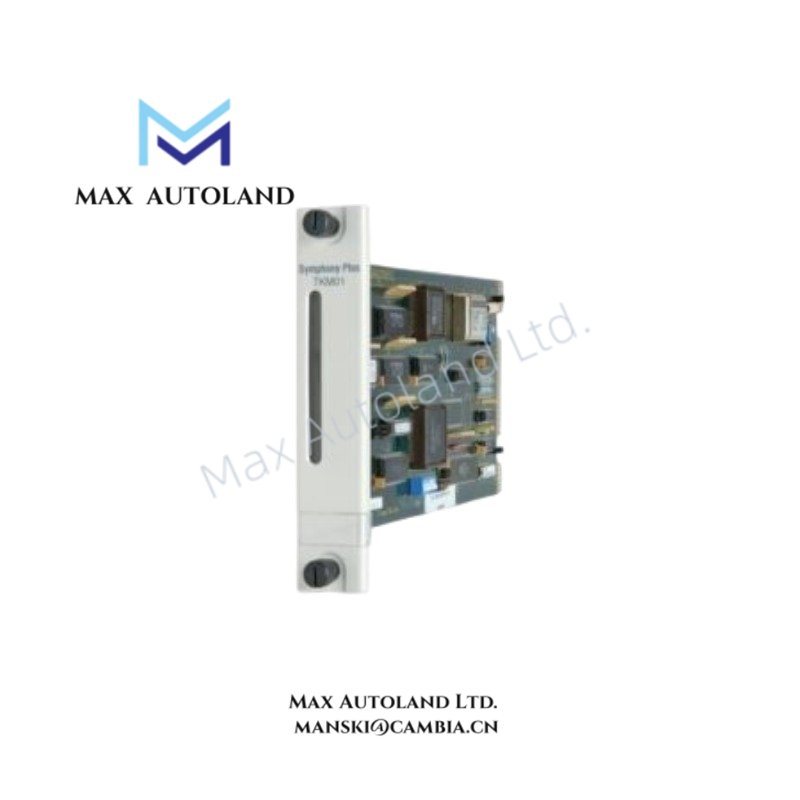

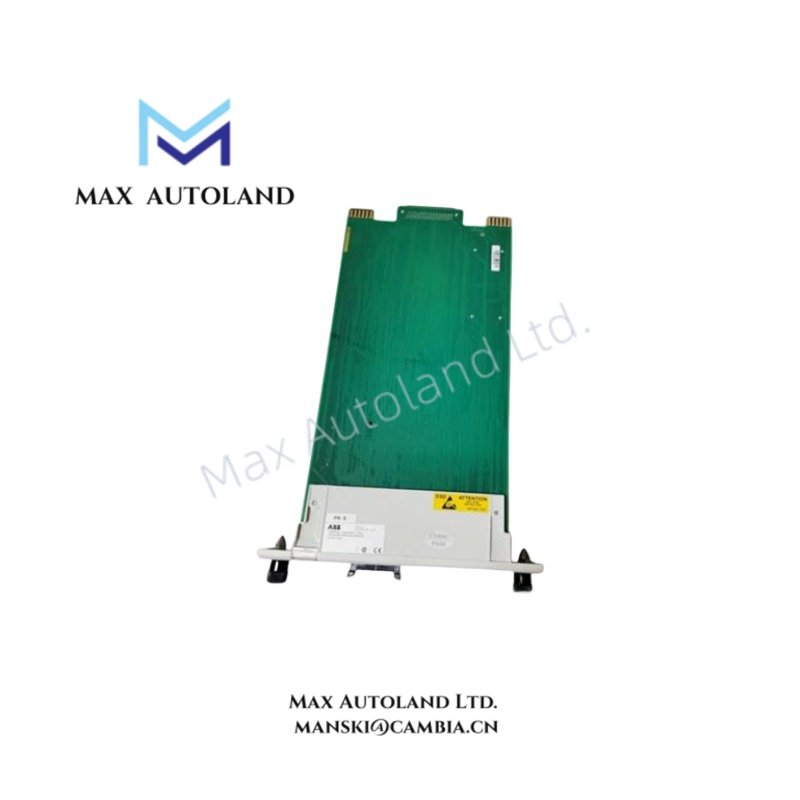

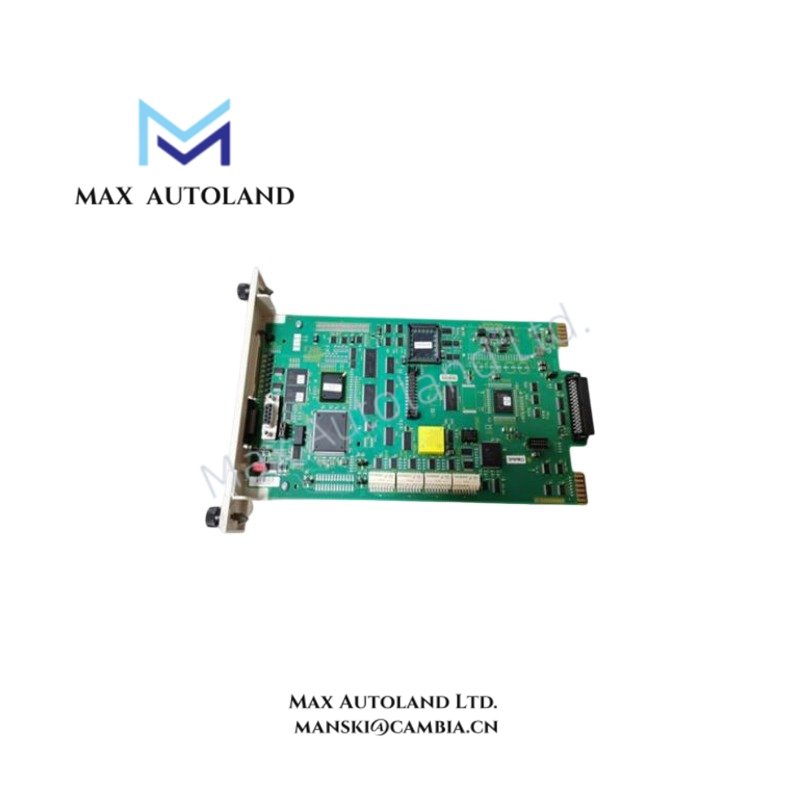

Configured for precise sequence-of-event timestamping in distributed control system networks, the ABB SPTKM01, also cataloged as the SPTKM01 SOE Time Keeper Master, provides direct physical and electrical execution of high-resolution event recording and time synchronization.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | SPTKM01 |
| Brand | ABB |
| Origin | SWEDEN |
| Weight | 0.32 kg |
| Dimensions | 27.1 x 10 x 2.2 cm |
| Operating Temp. | -40 degC to +70 degC |
| Power Consumption | 1.8 W (typical), 2.5 W (max) |
| Power Supply | 24 V DC (19.2–28.8 V) via backplane |
| Time Sync Interfaces | IRIG-B (DC/AM), PTP (IEEE 1588), SNTP |
| Time Accuracy | +/- 1 us |
| Timestamp Resolution | 1 us |
| Event Buffer Capacity | 8192 events |
| Analog Inputs | 0–10 V, 4–20 mA |
| Analog Outputs | 0–10 V, 4–20 mA |
| Isolation | 1500 V AC (channel-to-logic) |
| Humidity | 5–95% RH (non-condensing) |
| Vibration | 3 g @ 10–500 Hz (IEC 60068-2-6) |
Backplane Bus Communication and Firmware Flash Compatibility
The module interfaces with the ABB controller backplane via a dedicated bus architecture, requiring strict adherence to firmware flash compatibility matrices. Incorrect firmware versions may result in communication timeouts or failure to synchronize the distributed clock. The deterministic exchange of SOE data packets is dependent on the licensed backplane bus communication velocity, which must be configured to match the system’s scan cycle parameters.
Frequently Asked Questions
Q: Does the SPTKM01 support hot-swapping while the DCS rack is under power?
A: No. The module requires a complete power-down of the rack before removal or insertion to prevent backplane bus contention and potential damage to the logic circuitry.
Q: What is the impact of backplane voltage drop on time accuracy?
A: A supply voltage below 19.2 V DC can cause instability in the internal oscillator, leading to timestamp drift exceeding the specified +/- 1 us accuracy.
Q: Is galvanic isolation provided between analog channels?
A: Isolation is rated at 1500 V AC between field wiring channels and the internal logic; however, channel-to-channel isolation is not provided.
Field Installation Guidelines
Install the module into the designated slot of the ABB rack, ensuring the locking levers engage fully. Tighten terminal block screws to the torque specification indicated on the module housing. Shielded twisted-pair cables must be used for analog signal connections; ground the shield drain wire to the rack earth at a single point only. Maintain separation from high-voltage power conductors to mitigate electromagnetic interference.
