Overview

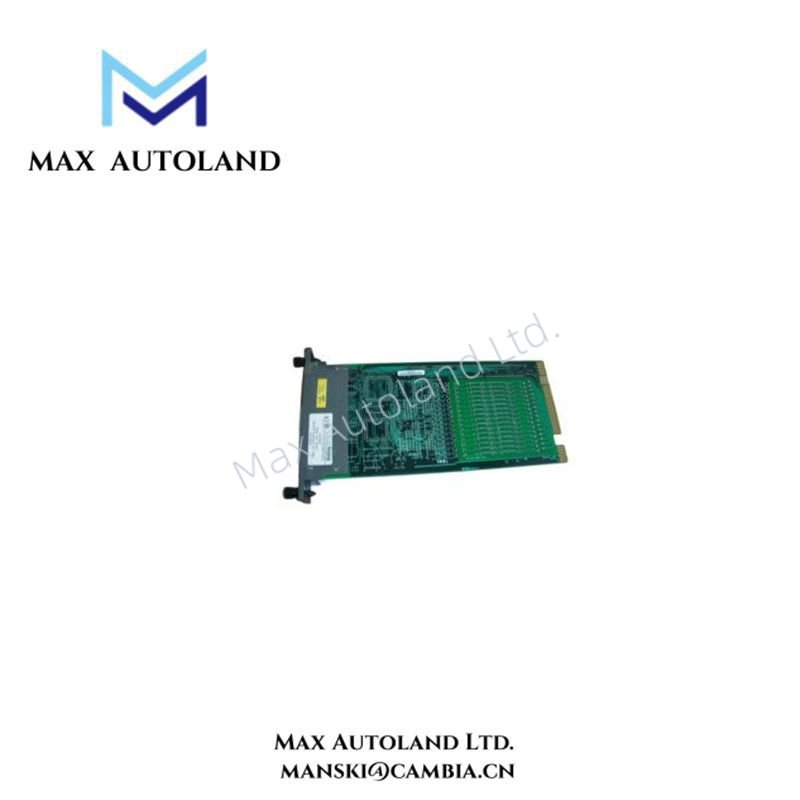

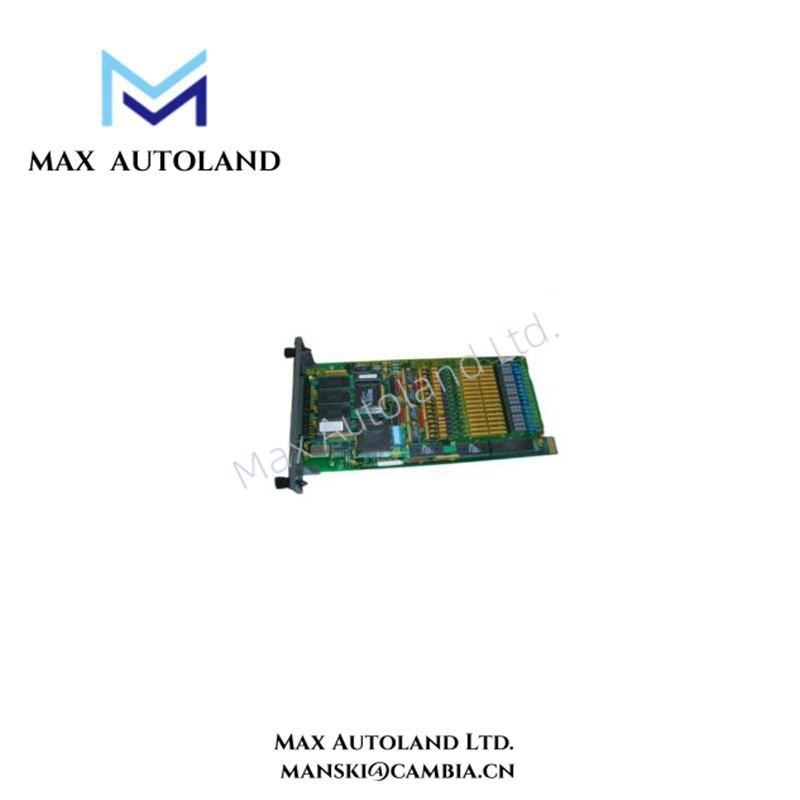

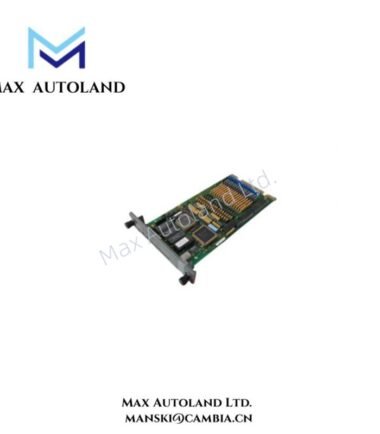

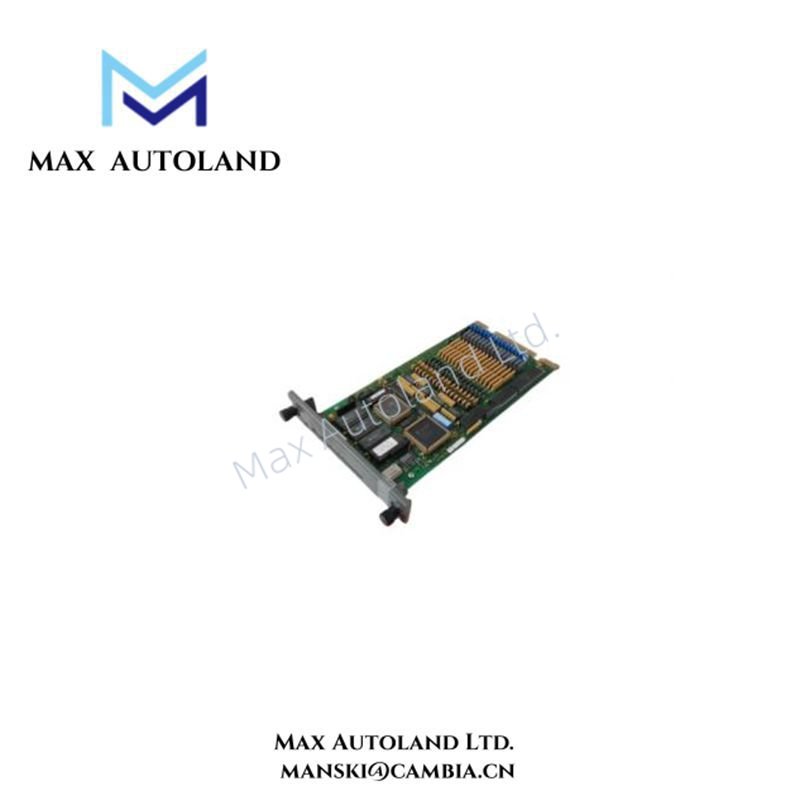

The IMSED01 from ABB Bailey is a Sequence of Events (SOE) I/O module designed for Infi-90 distributed control systems. It captures input changes with millisecond precision, enabling operators to trace system events and disturbances with exceptional accuracy. Furthermore, the module integrates seamlessly into Infi-90 racks, providing reliable diagnostics and event logging capabilities.
By delivering consistent performance, the IMSED01 enhances system troubleshooting, reduces downtime, and improves fault analysis in complex industrial environments.
Specification
| Parameter | Value |
|---|---|
| Model Number | IMSED01 |
| Manufacturer | ABB / Bailey Controls |
| Product Category | Sequence of Events I/O Module |
| System Compatibility | Bailey Infi-90 Distributed Control System |
| Input Channels | Multiple SOE channels for event detection |
| Detection Resolution | Millisecond-level transition recognition |
| Diagnostics | Status LEDs, continuous self-check, error logging |
| Dimensions | Approx. 13 in (H) × 1 in (W) × 7.5 in (D) |
| Weight | ~1.3 lb (0.6 kg) |
| Mounting Method | Rack-mounted in Infi-90 chassis |
| Operating Voltage | 24 VDC backplane power |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | –40°C to +85°C |
| Certification | CSA / CE compliance for industrial use |
FAQ
Q1: Is the IMSED01 ABB Bailey module brand new?
Yes, all units are 100% original and factory-sealed.
Q2: Do you keep the IMSED01 in stock?
We maintain inventory, and shipping typically takes 3 days to 2 weeks depending on order size.
Q3: Which couriers do you use for delivery?
We usually ship with DHL, UPS, or FedEx to ensure fast and reliable transport.
Q4: Can I return the IMSED01 if it has quality issues?
Yes, we accept returns within 30 days if any quality-related problems occur.
Q5: What is the key advantage of the IMSED01?
It provides precise millisecond-level event detection, ensuring accurate fault analysis in Infi-90 systems.
Manual/Datasheet PDF
IMSED01 ABB Bailey SEQUENCE OF EVENTS I O MODULE DATASHEET
