Overview

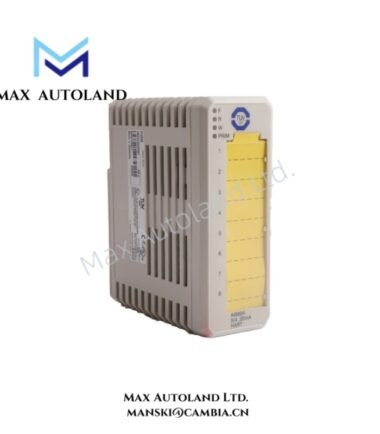

Configured for analog signal acquisition in ABB industrial control systems, the ABB AI623 (AI623 Analog Input Module) provides direct physical and electrical conversion of field current and voltage signals into process data for the control system. The module provides 16 analog input channels and supports specified current and voltage measurement ranges.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AI623 |
| Brand | ABB |
| Product Type | Analog Input Module |
| Input Channels | 16 analog inputs |
| Input Range | -20 to +20 mA |
| Input Range | 4-20 mA |
| Input Range | 0-10 V |
| Power Supply | 24 VDC |
| Power Consumption | Less than 5 W |
| Measurement Accuracy | +/-0.1% of full scale |
| Signal Noise | Less than 0.2 uV RMS |
| Response Time | Less than 2 ms |
| EMC Compliance | IEC 61131-2 |
| Hazardous Area Certification | ATEX / IECEx Zone 2 |
| Mounting Type | DIN rail or panel mount |
ABB Industrial I/O Integration
The ABB AI623 supports high-density analog signal acquisition through 16 input channels. It accepts current and voltage signals from compatible field sensors and transducers, allowing the control system to process measured physical values.
Within an ABB control architecture, the module exchanges input data through the applicable system I/O and backplane communication path. Therefore, system compatibility depends on the installed ABB controller platform, supported I/O interface, and firmware configuration. The installation should use the designated ABB hardware arrangement rather than an assumed generic backplane configuration.
Frequently Asked Questions
Q: What analog signals can the ABB AI623 process?
A: The specified input ranges include -20 to +20 mA, 4-20 mA, and 0-10 V. Signal configuration must match the connected field device and applicable control system configuration.
Q: Can the AI623 be installed on a DIN rail?
A: The provided specifications identify DIN rail or panel mounting. The final installation method should follow the mechanical arrangement of the ABB control cabinet.
Q: Does the AI623 support hot replacement?
A: The provided technical information does not specify hot-swap capability. Do not assume energized replacement is permitted without confirmation from the applicable ABB system documentation.
Field Installation Guidelines
Install the ABB AI623 in the designated control cabinet position and verify the mounting arrangement before applying power. Use the specified 24 VDC supply and confirm polarity before connecting the module.
Separate analog signal wiring from high-current power cables, motor conductors, and switching circuits where practical. In addition, use shielded cable when required by the connected sensor and site wiring standard. Terminate cable shields according to the system grounding design to avoid unwanted ground-loop currents.
Before commissioning, verify each field signal range and confirm that the connected transmitter or sensor matches the configured input type. Finally, check control-system diagnostics after energization and validate measured values against the actual field signal.
