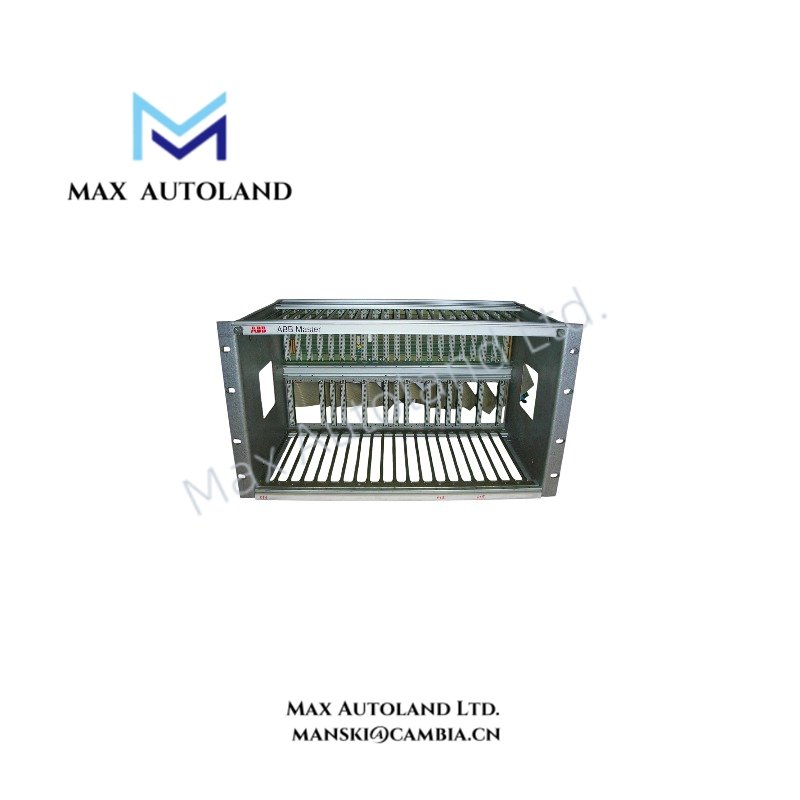

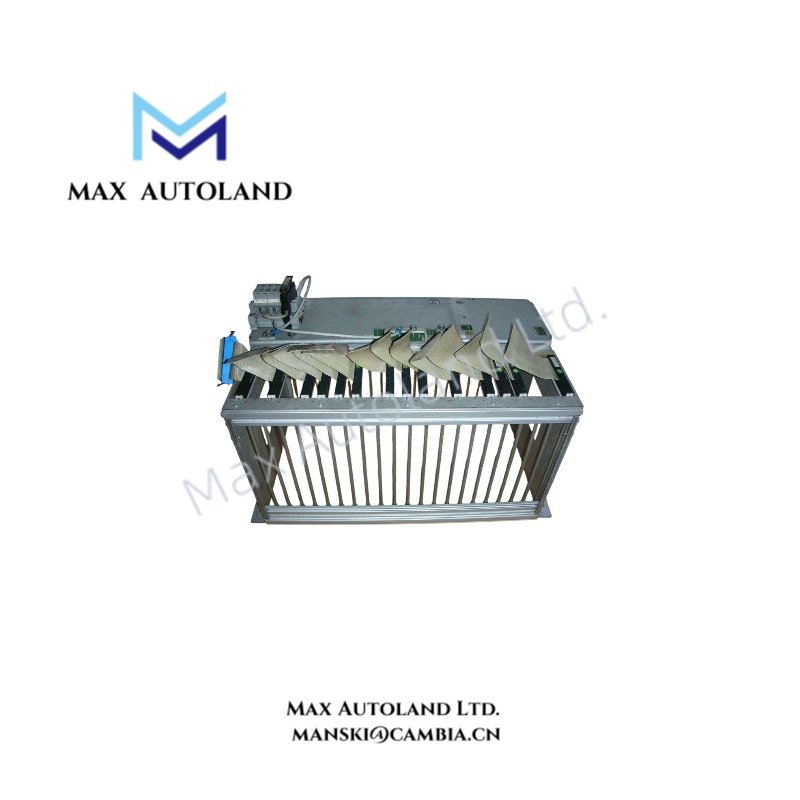

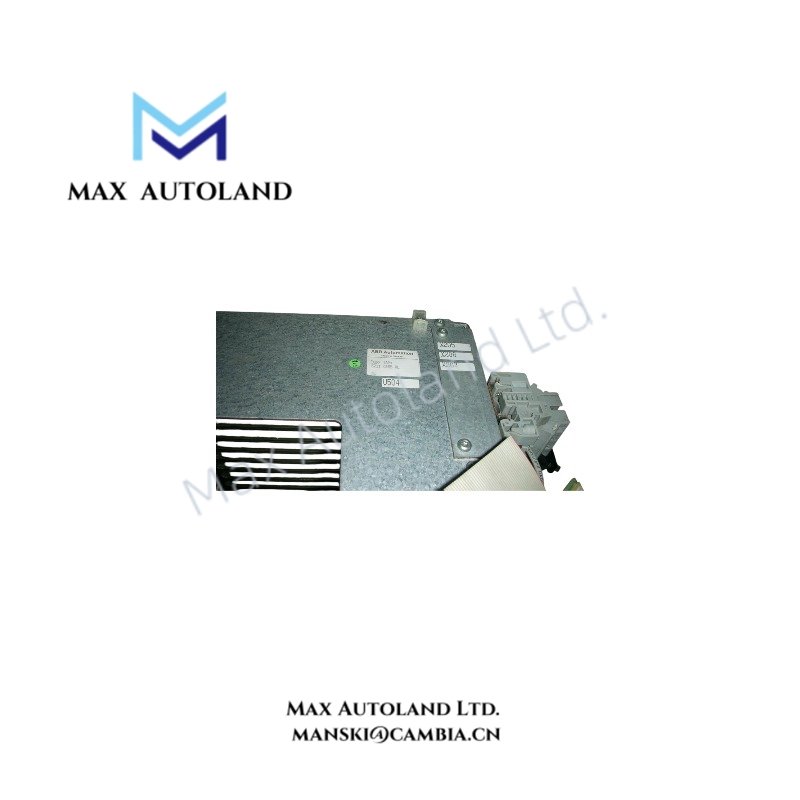

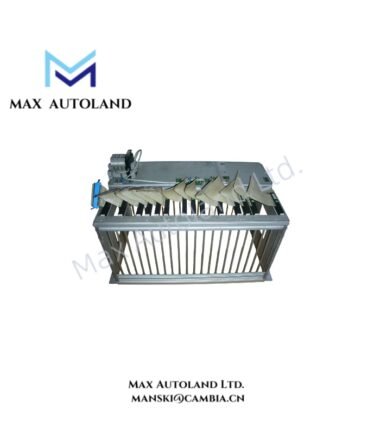

ABB MasterDSRF182 57310255-AL S100 I/O Equipment Frame

Overview

Configured for physical mounting and backplane interconnection in the ABB Advant Master Process Control System, the ABB DSRF182 57310255-AL (DSRF182 S100 I/O Equipment Frame) provides direct mechanical and electrical execution. It accommodates S100 I/O modules inside a dedicated equipment frame, supports supervision signal routing, and interfaces with the S100 fieldbus communication architecture for controller integration.

Suffix Breakdown & Model Matrix

The supplied documentation identifies DSRF182 57310255-AL as a fixed catalog number. No official suffix definition or option matrix is specified by ABB in the provided information.

Hardware Specifications

I/O Density Scaling and Backplane Architecture

The DSRF182 equipment frame increases I/O density by providing a centralized mechanical platform for multiple S100 I/O modules. Moreover, the backplane structure distributes internal electrical connections between installed modules while maintaining an organized rack layout. During controller modernization, the Ethernet-based S100 I/O communication hardware enables existing S100 I/O installations to remain connected when migrating from Advant Controller 400 Series controllers to the AC 800M platform. Therefore, existing field wiring can remain associated with the installed S100 I/O infrastructure while controller hardware evolves according to system upgrade requirements.

Frequently Asked Questions

Q: Does the DSRF182 include an integrated power supply?
A: No. The DSRF182 57310255-AL is supplied as an equipment frame without a power supply. Power must be provided by the applicable system hardware.

Q: Can I install any ABB module into this rack?
A: No. The equipment frame is designed for ABB S100 I/O modules and associated hardware supported by the Advant Master S100 I/O architecture.

Q: Does the equipment frame require firmware upgrades?
A: No firmware resides in the equipment frame itself. Firmware compatibility applies to the installed controllers, communication hardware, and individual I/O modules rather than the mechanical rack.

Field Installation Guidelines

• Verify that the cabinet mounting surface is flat before securing the equipment frame.
• Install the rack according to the specified cabinet orientation to maintain correct module insertion and connector alignment.
• Connect protective earth according to the system grounding specification before energizing the cabinet.
• Separate communication cables from high-voltage power wiring to reduce electromagnetic interference.
• Insert and remove S100 I/O modules only after following the applicable maintenance procedure for the control system.
• Confirm that every module is fully engaged with the backplane connectors before restoring system power.
• Leave sufficient clearance at the front of the rack to permit module replacement and routine maintenance.
• Inspect the backplane connectors for contamination or mechanical damage before installing replacement modules.
