Overview

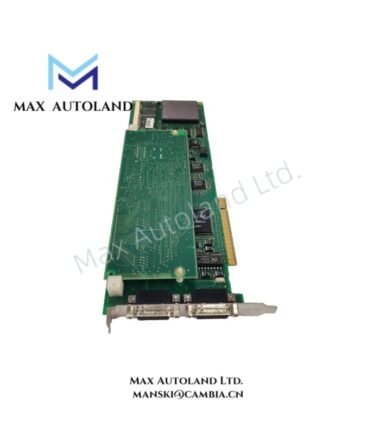

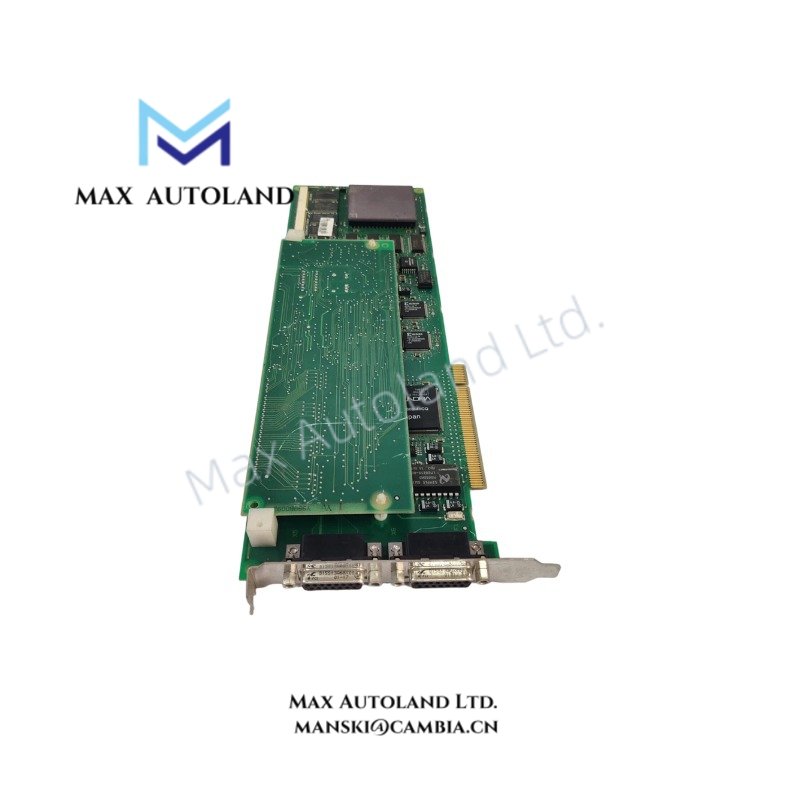

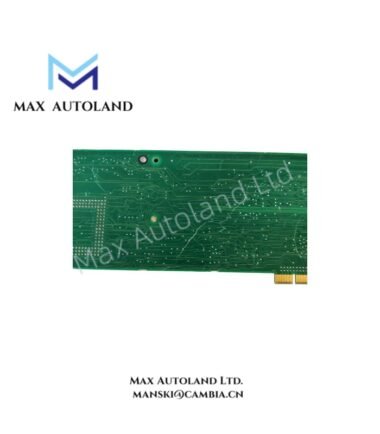

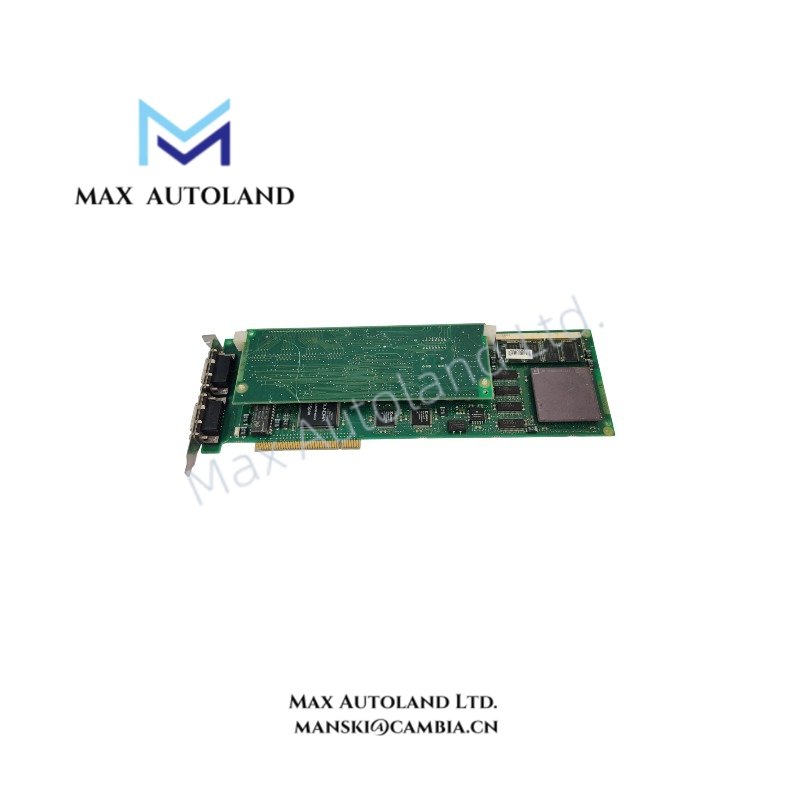

Configured for engineering and configuration data handling in ABB Advant OCS / Advant Master control platforms, the ABB 3BSE013064R1 (3BSE013064R1 Engineering Module PU516) provides direct backplane-based execution of engineering and system configuration tasks within modular DCS controller architectures.
Suffix Breakdown & Model Matrix
- Base Model: 3BSE013064R1
- Product Model: PU516 Engineering Module
- Alternate Part Number: 3BSE013064R0001
- Functional Classification: Engineering / Configuration Module
- Series Association: ABB Advant OCS / Advant Master
Hardware Specifications
| Parameter | Specification |
|---|---|
| ModelBrand | ABB 3BSE013064R1 |
| Origin | Not specified |
| Weight | 0.34 kg |
| Dimensions | 2 x 32.3 x 12.6 cm (shipping size) |
| OperatingTemp | Not specified |
| PowerConsumption | Not specified |
| Module Type | Engineering Module (PU516) |
| System Compatibility | ABB Advant OCS / Advant Master |
Backplane Engineering Communication Behavior (ABB Control Architecture)
The PU516 engineering module operates within ABB Advant backplane infrastructure, where deterministic module-to-module communication is handled via internal system bus routing. Engineering data exchange is structured through fixed-cycle synchronization between controller and configuration layer. Firmware image alignment is dependent on platform-level compatibility within Advant Master station hierarchy, and module recognition is tied to backplane address allocation rather than field wiring interfaces.
Frequently Asked Questions
Q: Does the 3BSE013064R1 support hot-swap removal?
A: Hot-swap behavior is dependent on Advant OCS station configuration. In most installations, module removal requires controlled shutdown to avoid backplane state inconsistency.
Q: Is firmware compatibility cross-platform within ABB Advant systems?
A: Firmware compatibility is constrained to Advant OCS / Advant Master architecture revisions. Cross-generation compatibility requires system-level validation.
Q: Does the module participate in field I/O processing?
A: No direct field I/O handling is performed. The module operates at engineering and system configuration level within the backplane environment.
Field Installation Guidelines
- Install module only in de-energized backplane racks unless system design explicitly supports live insertion.
- Ensure correct slot alignment to avoid backplane pin damage or misaddressing.
- Maintain electrostatic discharge control during handling and insertion.
- Verify Advant system firmware consistency before commissioning module recognition.
- Avoid mechanical stress on connector interface during installation or removal.
