Overview

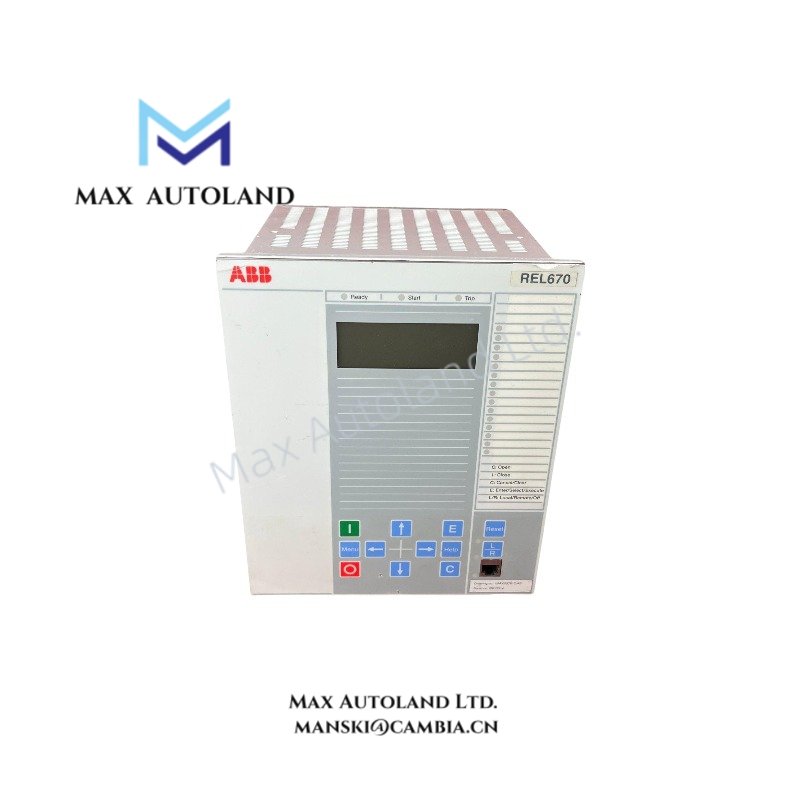

Configured for Line Distance Protection in transmission and sub-transmission network protection schemes, the ABB 1MRK002812-AC (REL670 Line Distance Protection IED) provides direct physical and electrical execution of distance protection, fault detection, and trip output control within substation protection and control systems.
The device implements multi-zone impedance measurement logic, processing analog CT/VT inputs and executing trip decisions via configurable protection algorithms. It supports station-level communication for real-time status exchange, disturbance recording, and event logging under substation automation architectures.
SuffixBreakdown & ModelMatrix
No structured suffix decomposition is defined for 1MRK002812-AC based on provided technical data. The identifier is treated as an orderable configuration or hardware assembly reference linked to the REL670 platform.
Hardware Specifications
| Parameter | Specification |
|---|---|
| ModelBrand | ABB 1MRK002812-AC |
| Origin | Switzerland / Sweden (ABB manufacturing network) |
| Dimensions | 19 in rack form factor (platform dependent) |
| OperatingTemp | Not specified |
| PowerConsumption | Not specified |
| Protection Function | Line distance protection, multi-zone impedance measurement |
| Rated Inputs | 1 A / 5 A CT, 100-120 V VT nominal |
| Frequency | 50 / 60 Hz |
| Communication | IEC 61850, DNP3, IEC 60870-5-103, Modbus |
Backplane Bus Communication and Firmware Integration Characteristics
The REL670 platform integrates distributed internal module communication via high-speed backplane architecture supporting deterministic data exchange between protection, measurement, and I/O processing blocks. ABB industrial control architecture enables coordinated execution across protection zones with firmware-flash compatible logic partitioning, allowing configuration consistency across relay variants. IO mapping density scaling is handled through modular binary input/output expansion units, ensuring consistent signal propagation timing under varying substation load conditions. Communication stacks support IEC 61850 datasets mapped to logical nodes with structured reporting behavior aligned to station bus synchronization requirements.
Frequently Asked Questions
Q: Can the REL670 1MRK002812-AC operate with mixed 1 A and 5 A CT inputs?
A: The hardware platform supports selectable CT secondary ratings at configuration level. Simultaneous mixed-rating operation requires external consistency in measurement channel assignment.
Q: Does the device support firmware updates via communication interface?
A: Firmware update capability is dependent on system configuration and communication module. Updates are typically executed through station-level engineering access with validated firmware packages.
Q: What is the internal processing latency between measurement input and trip output?
A: Trip execution latency is determined by configured protection zone logic and sampling cycle; no fixed universal value is defined at hardware level.
Field Installation Guidelines
Shielded CT/VT wiring shall be routed separately from control and communication cables to minimize electromagnetic coupling. Terminal grounding shall be implemented using low-impedance earth connections in accordance with substation grounding design practice. Optical Ethernet or copper communication links shall maintain separation from high-voltage cable trays. Module insertion into 19 in rack assemblies must ensure full backplane connector engagement without mechanical stress. Binary output circuits shall be verified under isolated commissioning mode prior to energization.
